Zodiac VX40 Spare Parts

  • VX40
Zodiac VX40 Spare Parts

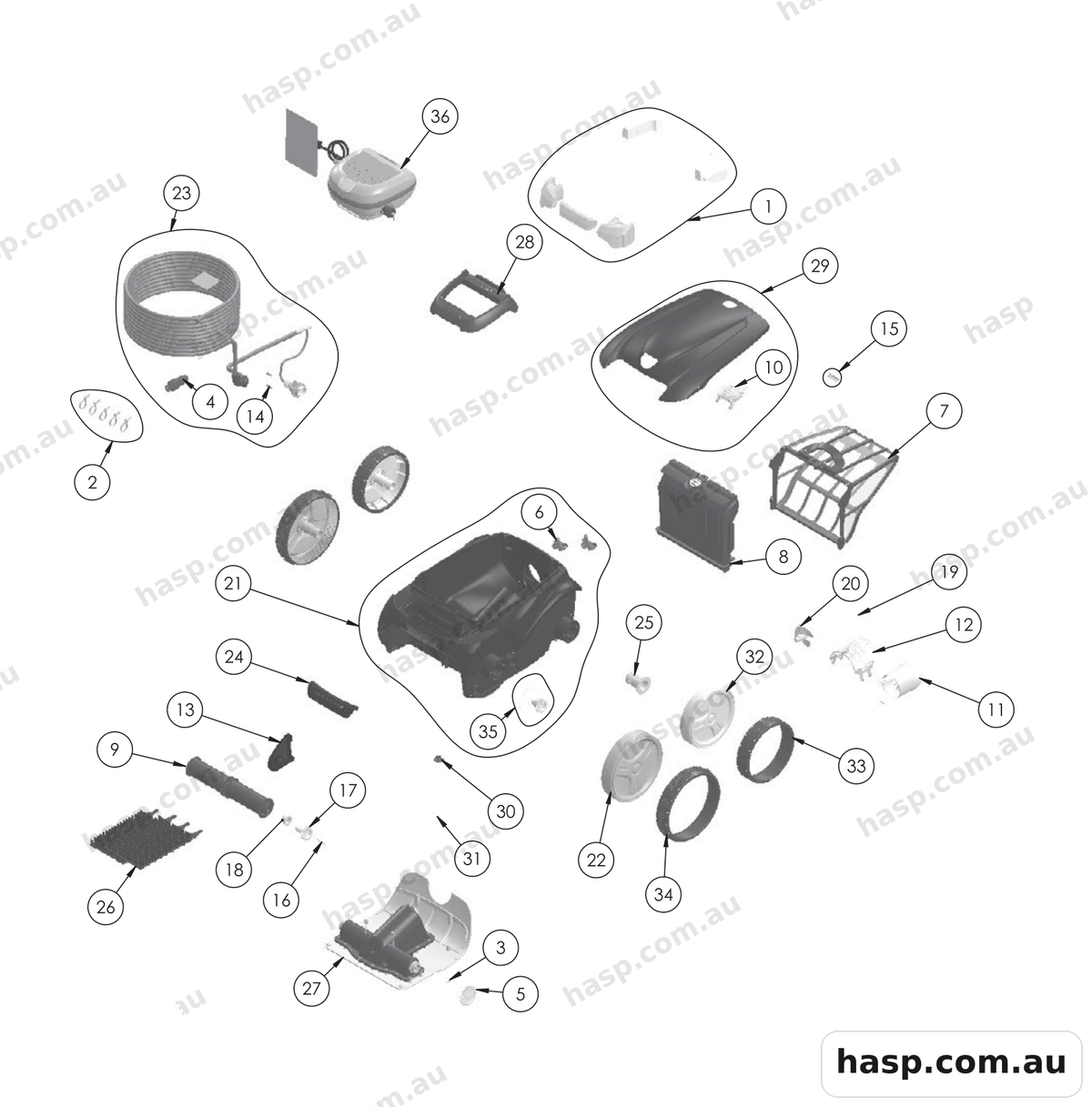

Tap the diagram to enlarge. Zodiac catalogue page 172.
1
Zodiac Complete Float R0539700FLOAT
R0539700 Qty 1 $12.00
2
Zodiac Floating Cable Clamp 5PK R0567900FLOATING CABLE CLAMP (SET OF 5)
R0567900 Qty 1 $8.00
3
Zodiac Motor Block Shaft Pin 5PK R0567800MOTOR BLOCK SHAFT PIN (SET OF 5)
R0567800 Qty 1 $8.00
4
Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG
R0565600 Qty 1 $59.00
6
Zodiac Roller Set Of 2 R0518100ROLLER (SET OF 2)
R0518100 Qty 1 $17.00
7
Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 SportLARGE FILTER (200 micron)
R0643700 Qty 1 $127.00
-
Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 Sport100 MICRON FILTER CANISTER
R0636600 Qty 1 $127.00
8
Zodiac Filter Canister Support R0517700FILTER CANISTER SUPPORT
R0517700 Qty 1 $48.00
9
Zodiac Brush Roller Vortex Set Of 2 R0517400BRUSH ROLLER (2PK)
R0517400 Qty 1 $49.00
10
Zodiac Cover Latch Grip PMS108 R0638700COVER LATCH GRIP PMS108
R0638700 Qty 1 $6.00
11
Zodiac Flow Outlet Kit R0517500FLOW OUTLET
R0517500 Qty 1 $17.00
12
Zodiac Motor Screen R0517600MOTOR SCREEN
R0517600 Qty 1 $11.00
13
Zodiac Brush Seperator Support R0518700ROLLER SUPPORT
R0518700 Qty 1 $6.00
14
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4 x 16MM (set of 5)
R0608500 Qty 1 $4.00
15
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4 x 12 MM (SET OF 5)
R0516700 Qty 1 $4.00
16
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4 x 25 MM (SET OF 5)
R0638900 Qty 1 $4.00
17
Zodiac 17 Teeth Gear Pack Of 2 R063900017 GEAR (x2)
R0639000 Qty 1 $7.00
18
Zodiac Bearing Outer Bearing 2 R0639100OUTER BEARING (x2)
R0639100 Qty 1 $8.00
19
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200SCREW 2.9 x 9.5 MM (SET OF 5)
R0639200 Qty 1 $4.00
20
Zodiac Propeller Zodiac R0517000PROPELLER
R0517000 Qty 1 $13.00
23
Zodiac Floating Cable 18M R0516800FLOATING CABLE 18M
R0516800 Qty 1 $316.00
25
Zodiac Bearing Wheel Vortex R0636700WHEEL BUSHING ZODIAC
R0636700 Qty 1 $9.00
26
Zodiac Brush R0635900BRUSH (SET OF 2)
R0635900 Qty 1 $65.00
28
Zodiac Control Unit Base R0662600CONTROL UNIT BASE
R0662600 Qty 1 $14.00
31
Zodiac Screw 2.2*6.5mm (*5) R0564500SCREW 2.2 x 6,5mm (x5)
R0564500 Qty 1 $3.00
34
Zodiac Positrax Front Tyre R0636400FRONT TYRE VORTEX TILE
R0636400 Qty 1 $51.00
35
Zodiac Transmission Kit R0517200TRANSMISSION
R0517200 Qty 1 $21.00
-
Zodiac Vortex Trolley Complete R0609100VORTEX CADDY COMPLETE
R0609100 Qty 1 $344.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
