Zodiac V3 4WD Spare Parts

V3 4WD
V3

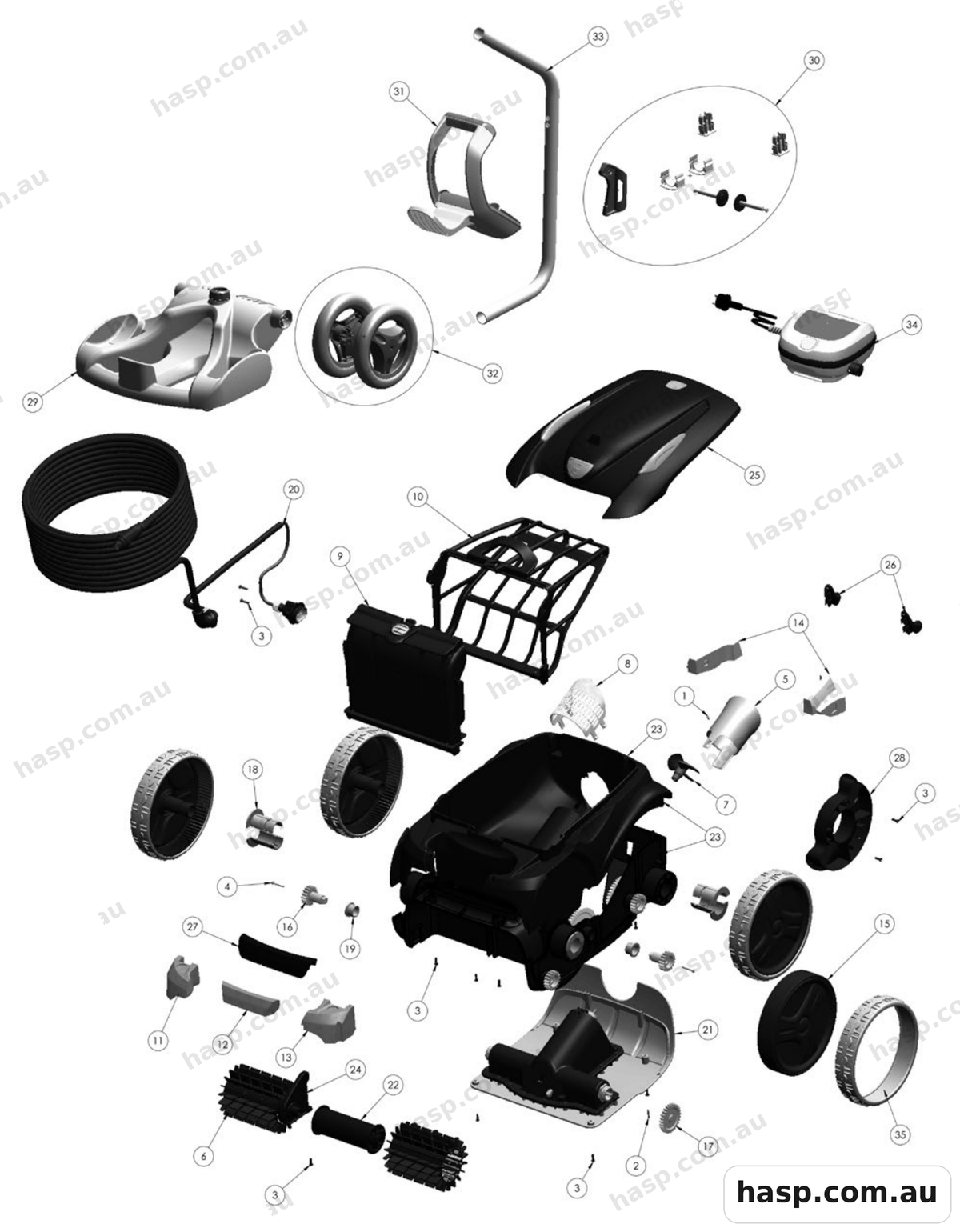

Zodiac V3 4WD Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 176.

1

Zodiac Screw 2.9 9.5mm Set Of 5 R0639200Screw VT TFC 2 , 9 x 9.5 A2

R0639200 Qty 1 $4.00

3

Zodiac Screw 4-12 Set Of 5 R0516700Screw VP TCL POZI 4 x 12 A2

R0516700 Qty 1 $4.00

4

Zodiac Screw 4-25mm Set Of 5 R0638900Screw VP TCL POZI 4 x 25

R0638900 Qty 1 $4.00

5

Zodiac Flow Outlet Kit R0517500Flow Outlet EC

R0517500 Qty 1 $17.00

7

Zodiac Propeller Zodiac R0517000Propeller EC

R0517000 Qty 1 $13.00

8

Zodiac Motor Screen R0517600Grid EC

R0517600 Qty 1 $11.00

9

Zodiac Filter Canister Support R0517700Filter Canister Support EC

R0517700 Qty 1 $48.00

10

Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 SportFilter Canister

R0643700 Qty 1 $127.00

12

Zodiac Complete Float R0539700Front Float 4WD

R0539700 Qty 1 $12.00

16

Zodiac 17 Teeth Gear Pack Of 2 R063900017 Teeth Gear EC

R0639000 Qty 1 $7.00

20

Zodiac Floating Cable 18M R0516800Floating Cable 18m

R0516800 Qty 1 $316.00

22

Zodiac Brush Roller Vortex Set Of 2 R0517400Brush Roller (2PK)

R0517400 Qty 1 $49.00

24

Zodiac Brush Seperator Support R0518700Intermediate Blade

R0518700 Qty 1 $6.00

26

Zodiac Roller Set Of 2 R0518100Bumper with Roller EC

R0518100 Qty 1 $17.00

28

Zodiac Wheel Cover R0540300Cover Wheel 4WD

R0540300 Qty 1 $16.00

29

Zodiac Cady Base For Vortex R0564800Lower Trolley Kit

R0564800 Qty 1 $104.00

30

Zodiac Caddy Accessories R0564900Trolley Accessories Kit

R0564900 Qty 1 $38.00

31

Zodiac Caddy Handle R0565000Handle Trolley Kit

R0565000 Qty 1 $88.00

32

Zodiac Caddy Wheel R0565100Wheels Trolley Kit

R0565100 Qty 1 $56.00

35

Zodiac Tire Large RAL9022 Zodiac R0636200EC Tyre R9022

R0636200 Qty 1 $54.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
