Zodiac V3 Spare Parts

  • V3
Zodiac V3 Spare Parts

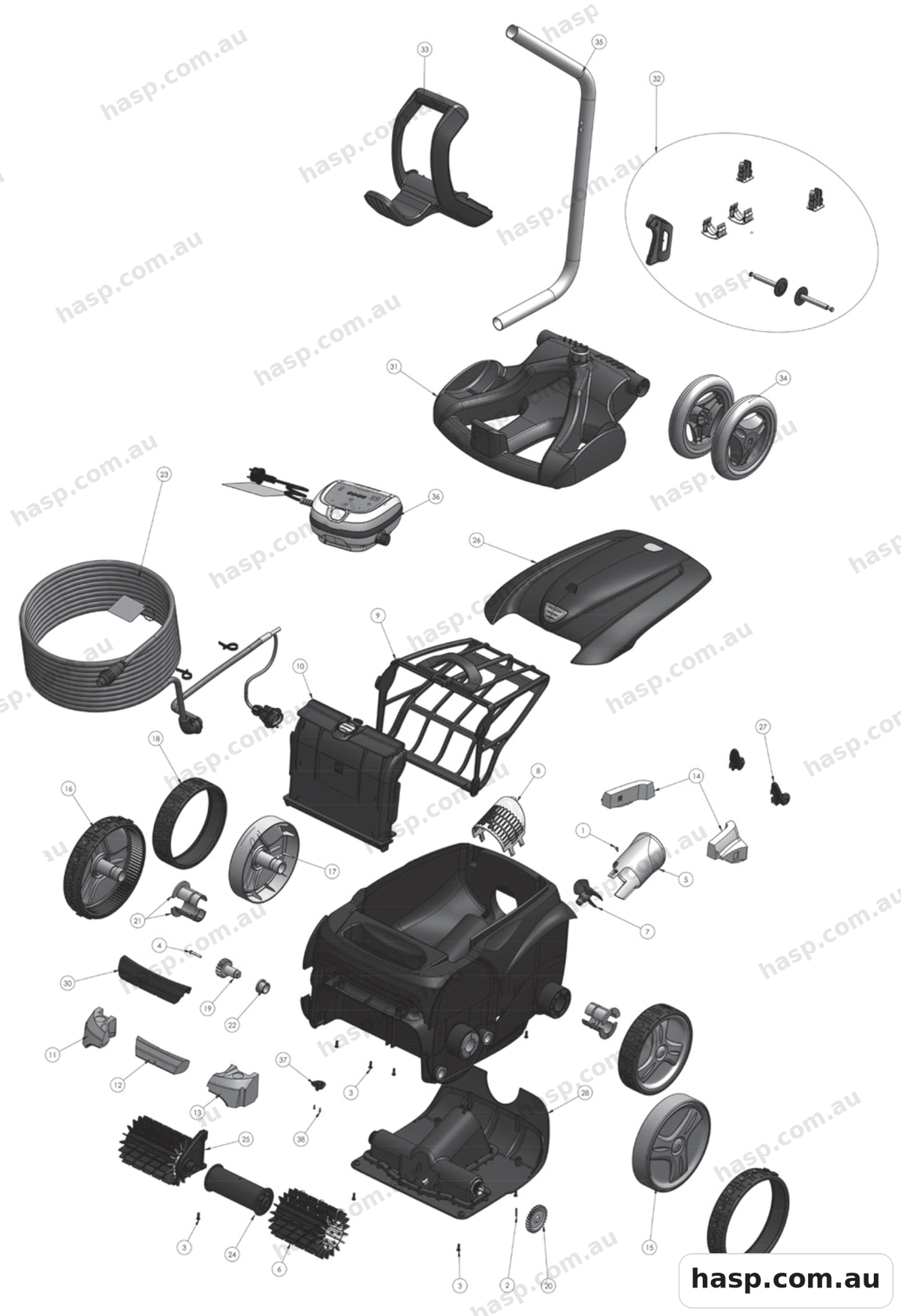

Tap the diagram to enlarge. Zodiac catalogue page 178.
1
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200Screw VP TFC 2,9X9,5 A2
R0639200 Qty 1 $4.00
2
Zodiac Motor Block Shaft Pin 5PK R0567800Pin 3 x 16 INOX A4
R0567800 Qty 1 $8.00
3
Zodiac Screw 4-12 Set Of 5 R0516700Screw VP TCL POZI 4 x 12 A2
R0516700 Qty 1 $4.00
4
Zodiac Screw 4-25mm Set Of 5 R0638900Screw VP TCL POZI 4 x 25 A2
R0638900 Qty 1 $4.00
5
Zodiac Flow Outlet Kit R0517500Flow Outlet EC
R0517500 Qty 1 $17.00
6
Zodiac Brush R0635900Bladed PVC Brush
R0635900 Qty 1 $65.00
7
Zodiac Propeller Zodiac R0517000Propeller EC
R0517000 Qty 1 $13.00
8
Zodiac Motor Screen R0517600Grid EC
R0517600 Qty 1 $11.00
9
Zodiac Filter Canister for Zodiac VX40, VX50, VX55, VX65, V3, V4, Polaris 9300 SportFilter Canister
R0643700 Qty 1 $127.00
10
Zodiac Filter Canister Support R0517700Filter Canister Support EC R7021
R0517700 Qty 1 $48.00
12
Zodiac Complete Float R0539700Float
R0539700 Qty 1 $12.00
19
Zodiac 17 Teeth Gear Pack Of 2 R063900017 Teeth Gear EC
R0639000 Qty 1 $7.00
21
Zodiac Bearing Wheel Vortex R0636700Wheel Bearing
R0636700 Qty 1 $9.00
22
Zodiac Bearing Outer Bearing 2 R0639100Outer Bearing EC
R0639100 Qty 1 $8.00
23
Zodiac Floating Cable 18M R0516800Floating Cable 18m
R0516800 Qty 1 $316.00
24
Zodiac Brush Roller Vortex Set Of 2 R0517400Brush Roller (2PK)
R0517400 Qty 1 $49.00
25
Zodiac Brush Seperator Support R0518700Brush Separator
R0518700 Qty 1 $6.00
27
Zodiac Roller Set Of 2 R0518100Bumper with Roller EC
R0518100 Qty 1 $17.00
29
Zodiac Positrax Front Tyre R0636400Front Tyre Vortex Tile
R0636400 Qty 1 $51.00
31
Zodiac Cady Base For Vortex R0564800Lower Trolley Kit
R0564800 Qty 1 $104.00
32
Zodiac Caddy Accessories R0564900Trolley Accessories Kit
R0564900 Qty 1 $38.00
33
Zodiac Caddy Handle R0565000Handle Trolley Kit
R0565000 Qty 1 $88.00
34
Zodiac Caddy Wheel R0565100Wheels Trolley Kit
R0565100 Qty 1 $56.00
35
Zodiac Caddy Tube R0565200Tube Trolley Kit
R0565200 Qty 1 $67.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
