Zodiac TX30 Spare Parts

  • TX30
Zodiac TX30 Spare Parts

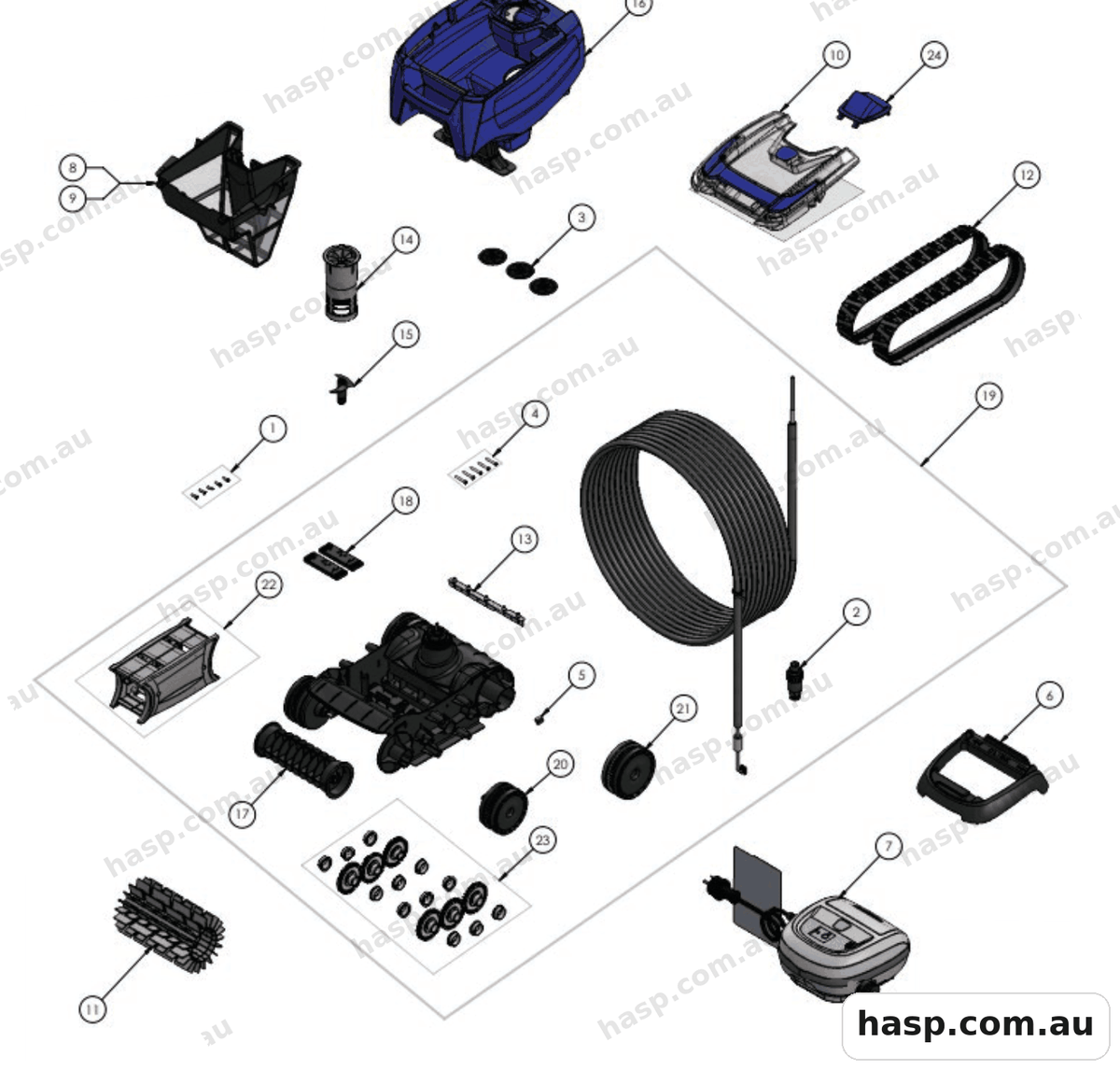

Tap the diagram to enlarge. Zodiac catalogue page 187.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG
R0565600 Qty 1 $59.00
3
Zodiac Exhaust Valve C Set Of 3 R0633300EXHAUST VALVE C (SET OF 3)
R0633300 Qty 1 $8.00
4
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
5
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5)
R0657900 Qty 1 $9.00
6
Zodiac Control Unit Base R0662600CONTROL UNIT BASE
R0662600 Qty 1 $14.00
7
Zodiac Control Box TX35 R0762700CONTROL BOX FLOOR AND WALL AUST
R0762700 Qty 1 $295.00
8
Zodiac TX FX OT Filter 100 & 200 MicronFILTER TX 100 MICRON
R0762900 Qty 1 $113.00
9
Zodiac TX FX OT Filter 100 & 200 MicronFILTER TX 200 MICRON
R0763000 Qty 1 $113.00
10
Zodiac Cover TX35 R0764300LID TX30
R0764300 Qty 1 $99.00
11
Zodiac TornaX TX20 TX30 TX35 Robotic Pool Cleaner Brush R0764900BRUSH TX
R0764900 Qty 1 $37.00
12
Zodiac Tracks TX R0765600TRACKS TX
R0765600 Qty 1 $39.00
13
Zodiac Blade Kit TX 5PK R0765800BLADE KIT (SET OF 5)
R0765800 Qty 1 $24.00
14
Zodiac Internal Flow Outlet R0766100INTERNAL FLOW OUTLET
R0766100 Qty 1 $12.00
15
Zodiac Impeller TX R0766200IMPELLER TX
R0766200 Qty 1 $5.00
16
Zodiac Body Complete Body TX R0766300COMPLETE BODY TX
R0766300 Qty 1 $147.00
17
Zodiac Holder Brush Holder TX R0767000BRUSH HOLDER TX
R0767000 Qty 1 $28.00
18
Zodiac Ballast Smaller Set Of 2 R0767100BALLAST SMALLER (SET OF 2)
R0767100 Qty 1 $24.00
19
Zodiac Chassis Complete Chassis TX R0767400COMPLETE CHASSIS TX
R0767400 Qty 1 $670.00
20
Zodiac Wheel Complete Front TX 2 R0771800COMPLETE FRONT WHEELS TX (2)
R0771800 Qty 1 $47.00
21
Zodiac Wheel Complete Back TX 2 R0771900COMPLETE BACK WHEELS TX (2)
R0771900 Qty 1 $47.00
23
Zodiac Complete Gear Kit TX R0772100COMPLETE GEAR KIT TX
R0772100 Qty 1 $39.00
24
Zodiac Nozzle Blue TX R0772200NOZZLE BLUE TX
R0772200 Qty 1 $13.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
