Zodiac TITAN ZTS PUMPS Spare Parts

  • TITAN ZTS PUMPS
Zodiac TITAN ZTS PUMPS Spare Parts

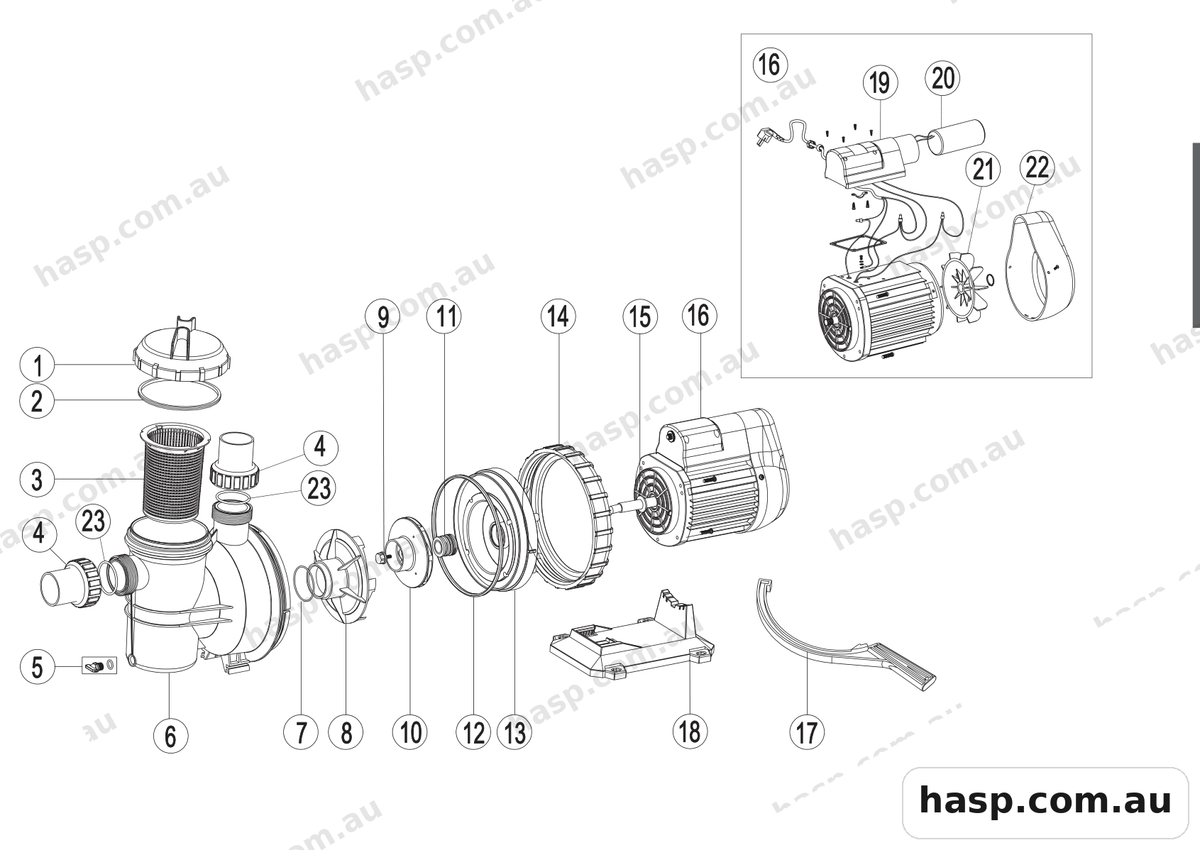

Tap the diagram to enlarge. Zodiac catalogue page 137.
1
Zodiac Transparent Lid ZTS Pump W01041043Transparent Lid
W01041043 Qty 1 $32.00
2
Zodiac O-Ring Lid ZTS Pump W02011077O-Ring for lid
W02011077 Qty 1 $7.00
3
Zodiac Prefilter Basket Tall W01101026Basket
W01101026 Qty 1 $14.00
4
Zodiac Union 40mm ZTS Pump W8902170240mm union
W89021702 Qty 1 $19.00
5
Zodiac Drain Plug with O-Ring ZTS Pump W89021703Drain Plug With O-ring
W89021703 Qty 1 $2.00
6
Zodiac Pump Body ZTS W01111006ZTS Pump Body
W01111006 Qty 1 $113.00
7
Zodiac O-Ring Diffuser ZTS Pump W02011105O-ring for Diffuser
W02011105 Qty 1 $6.00
8
Zodiac Pump Diffuser ZTS W01111009Diffuser
W01111009 Qty 1 $14.00
9
Zodiac Impeller SC Without'ring ZTS Pu W89021704Impeller Screw with O-ring
W89021704 Qty 1 $2.00
-
Zodiac Impeller ZTS075 W01311010Impeller ZTS075(220V)
W01311010 Qty 1 $33.00
10
Zodiac Impeller ZTS100 W01311011Impeller ZTS100(220V)
W01311011 Qty 1 $33.00
-
Zodiac Impeller ZTS150 W01311012Impeller ZTS150(220V)
W01311012 Qty 1 $44.00
11
Zodiac Mechanical Seal 0.75 ZTS Pump W0401503234"Mechanical seal
W04015032 Qty 1 $45.00
12
Zodiac O-Ring Flange ZTS Pump W02011089O-ring for Flange
W02011089 Qty 1 $9.00
13
Zodiac Pump Flange ZTS W01111008ZTS Pump Flange
W01111008 Qty 1 $61.00
14
Zodiac Ring Lock Nut ZTS Pump W01021014Ring Lock Nut
W01021014 Qty 1 $59.00
16
Zodiac Motor ZTS100 W89021707Motor ZTS100(220V)
W89021707 Qty 1 $1,329.00
-
Zodiac Motor ZTS150 W89021708Motor ZTS150(220V)
W89021708 Qty 1 $1,430.00
17
Zodiac Key Opening Titan Series W01021022Opening Key
W01021022 Qty 1 $21.00
-
Zodiac Capacitor ZTS075 Pump W04016012Capacitor for ZTS075 Pump
W04016012 Qty 1 $64.00
-
Zodiac Capacitor ZTS100 ZTS150 Pump W04016014Capacitor for ZTS100-ZTS150 Pump
W04016014 Qty 1 $75.00
21
Zodiac Cooling Fan ZTS Pump W01031007Cooling fan for ZTS Pump
W01031007 Qty 1 $7.00
23
Zodiac O-Ring Union ZTS Pump W02011104Union O-Ring
W02011104 Qty 1 $19.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
