Zodiac TITAN THERMOPLASTIC SAND FILTER TP500 – TP700 Spare Parts

  • TITAN THERMOPLASTIC SAND FILTER TP500 – TP700
  • TP500
  • TP700
Zodiac TITAN THERMOPLASTIC SAND FILTER TP500 – TP700 Spare Parts

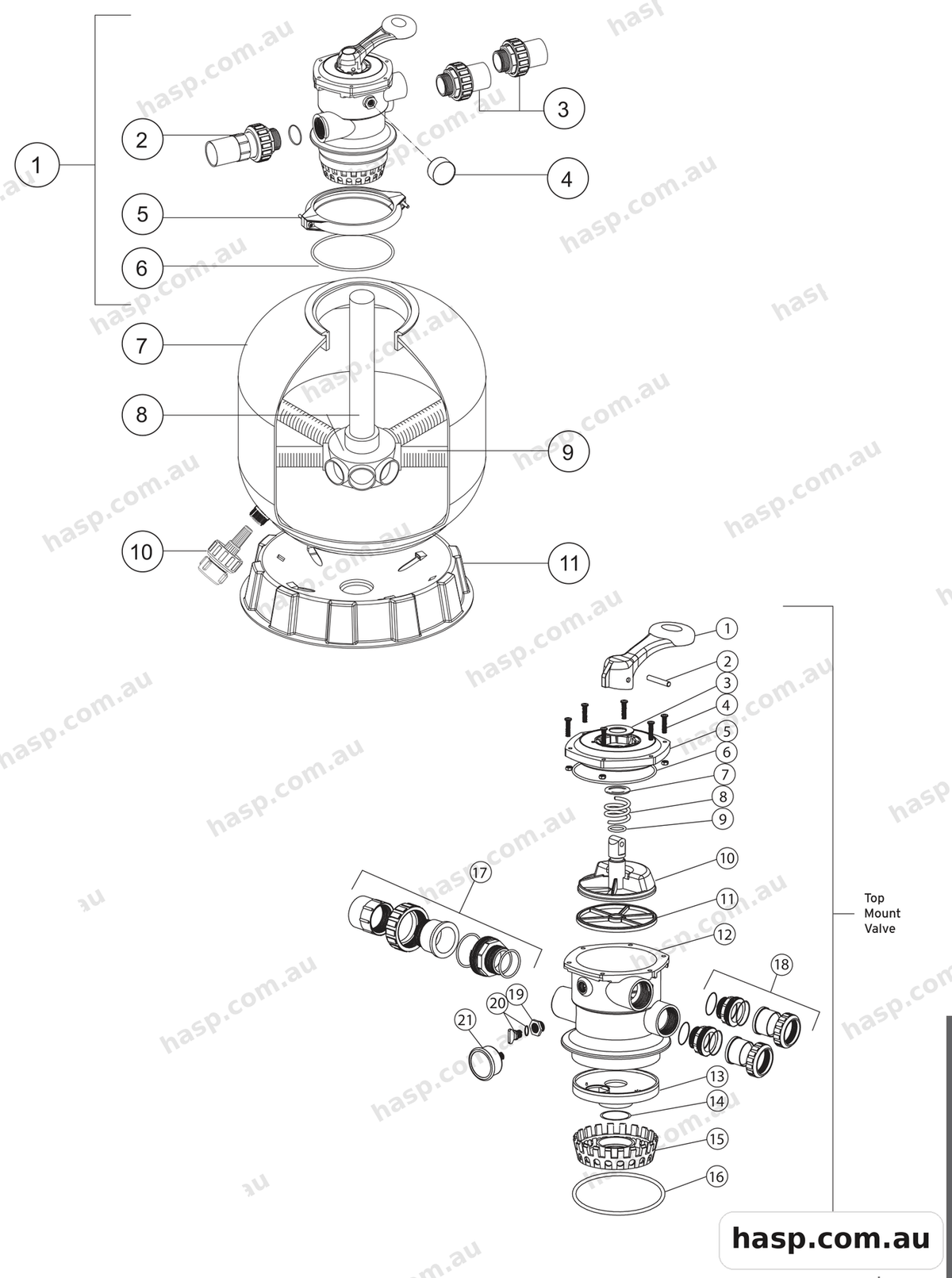

Tap the diagram to enlarge. Zodiac catalogue page 243.
1
Zodiac Top Mount Valve 40mm W8828010540mm Top Mount Valve
W88280105 Qty 1 $310.00
2
Zodiac Union 40mm with O-Ring & Sight Glass W8928010140mm Union With Sight Glass, O-Ring
W89280101 Qty 1 $22.00
3
Zodiac Union 40mm with O-Ring W8928010240mm Union Set (2 Pieces) With O-Ring
W89280102 Qty 1 $14.00
-
Zodiac Plastic Pressure Gauge with O-Ring W06021001Plastic Pressure Gauge With O-Ring (35psi)
W06021001 Qty 1 $22.00
-
Threaded Pressure Gauge Adaptor for Sand FiltersConnector for Pressure Gauge/Stopper
W01111048 Qty 1 $2.00
-
Zodiac Bolt & Nut M6 X 50 W89010119M6*50 Screws With Nut
W89010119 Qty 1 $6.00
-
Zodiac Clamp Lock Qty X2 W01271010Clamp Lock
W01271010 Qty 1 $11.00
6
Zodiac Titan and Emaux O-Ring for Filter Neck, Clamp Type Valve - W02011134O-Ring for Filter Neck
W02011134 Qty 1 $7.00
-
Zodiac Tank TP500 W01331008TP500 Filter Tank
W01331008 Qty 1 $751.00
7
Zodiac Tank Only TP650 W01331010TP650 Filter Tank
W01331010 Qty 1 $1,082.00
-
Zodiac TP500 LTRL Assbly WTH CTR Pipe W89011605TP500 Lateral Assembly with Center Pipe
W89011605 Qty 1 $35.00
8
Zodiac TP650 Lateral Assembly With W89011606TP650 Lateral Assembly with Center Pipe
W89011606 Qty 1 $37.00
-
Zodiac TP700 LTRL Assbly WTH CTR Pipe W89011607TP700 Lateral Assembly with Center Pipe
W89011607 Qty 1 $40.00
9
Zodiac Laterals 126mm ZTS500 ZTS700 W01172008TP500-TP700 Laterals (126mm)
W01172008 Qty 1 $5.00
10
Zodiac Titan Water Drain Set W89011601 for TP500, TP650 & TP700 Sand FiltersWater Drain Set
W89011601 Qty 1 $15.00
11
Zodiac Filter Base Titan W01111062TP500-TP700 Filter Base
W01111062 Qty 1 $82.00
1
Zodiac Handle Titan Series W01013003Handle
W01013003 Qty 1 $9.00
2
Zodiac Pin Handle Titan Series W03018008Pin for Handle
W03018008 Qty 1 $6.00
3
Zodiac Washer Handle Titan Series W01181001Plastic Washer for Handle
W01181001 Qty 1 $1.00
-
Zodiac Screw Nut Set ZT 650 W89280107M6×30 Screw with Nut for Standard Lid
W89280107 Qty 1 $8.00
-
Zodiac 40mm Top Mount Valve Standard Lid W0101300440mm Top Mount Valve Standard Lid (Black)
W01013004 Qty 1 $28.00
6
Zodiac O-Ring 40mm Valve Lid W02011002O-Ring for 40mm Valve Lid
W02011002 Qty 1 $6.00
7
Zodiac Washer Spring 40mm Top W01181002Washer for Spring
W01181002 Qty 1 $1.00
8
Zodiac Spring 40mm Top Mount Val W03014001Spring for 40mm Top Mount Valve
W03014001 Qty 1 $60.00
9
Zodiac O-Ring 1.5 Valve Rotor W02011022O-Ring for 40mm Valve Rotor
W02011022 Qty 1 $3.00
10
Zodiac Valve Rotator 40mm W0102100140mm Valve Rotor
W01021001 Qty 1 $15.00
11
Zodiac Spider Gasket 40mm Top MT Val W02311002Spider Gasket
W02311002 Qty 1 $5.00
14
Zodiac O-Ring Diffuser 40mm Top W02011001O-Ring for Diffuser
W02011001 Qty 1 $2.00
16
Zodiac Titan and Emaux O-Ring for Filter Neck, Clamp Type Valve - W02011134O-Ring
W02011134 Qty 1 $7.00
17
Zodiac Union 40mm with O-Ring & Sight Glass W8928010140mm Union With Sight Glass, O-Ring
W89280101 Qty 1 $22.00
18
Zodiac Union 40mm with O-Ring W8928010240mm Union Set With O-Ring
W89280102 Qty 1 $14.00
19
Threaded Pressure Gauge Adaptor for Sand FiltersConnector for pressure gauge/stopper
W01111048 Qty 1 $2.00
20
Zodiac Drain Plug with O-Ring ZTS Pump W89021703Drain Plug with O-ring
W89021703 Qty 1 $2.00
-
Zodiac O-Ring 40mm Connector W0201115140mm Union O-ring
W02011151 Qty 1 $2.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
