Zodiac TITAN FIBREGLASS FILTERS ZT500 – 650 Spare Parts

TITAN FIBREGLASS FILTERS ZT500 – 650
ZT500

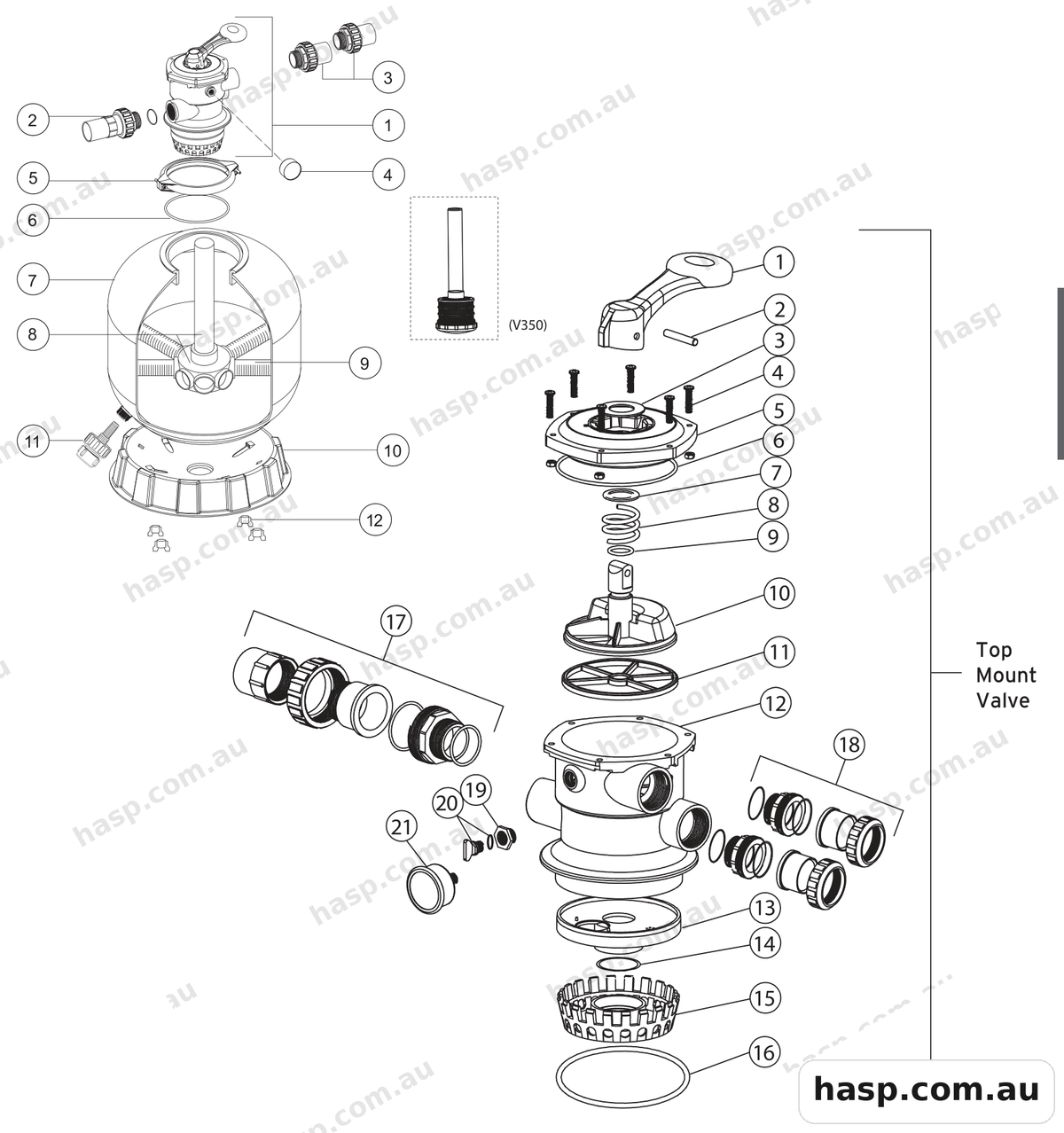

Zodiac TITAN FIBREGLASS FILTERS ZT500 – 650 Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 143.

1

Zodiac Top Mount Valve 40mm W8828010540mm Top Mount Valve

W88280105 Qty 1 $310.00

1A

Zodiac MPV08 50mm Top Mount Valve W8281506MPV08 50mm Top Mount Valve

W8281506 Qty 1 $553.00

2

Zodiac Union 40mm with O-Ring & Sight Glass W8928010140mm Union With Sight Glass, O-Ring

W89280101 Qty 1 $22.00

3

Zodiac Union 40mm with O-Ring W8928010240mm Union Set With O-Ring

W89280102 Qty 1 $14.00

-

Threaded Pressure Gauge Adaptor for Sand FiltersConnector for Pressure Gauge/Stopper

W01111048 Qty 1 $2.00

5

Zodiac Bolt & Nut M6 X 50 W89010119M6*50 Screws With Nut

W89010119 Qty 1 $6.00

-

Zodiac Clamp Lock Qty X2 W01271010Clamp Lock

W01271010 Qty 1 $11.00

6

Zodiac Titan and Emaux O-Ring for Filter Neck, Clamp Type Valve - W02011134O-Ring for Filter Neck

W02011134 Qty 1 $7.00

8

Zodiac ZT500 Lateral Assembly With W89010104ZT500 Lateral Assembly with Center Pipe

W89010104 Qty 1 $35.00

-

Zodiac Lateral Assembly With Centre ZT650 W89010103ZT650 Lateral Assembly with Center Pipe

W89010103 Qty 1 $37.00

-

Zodiac ZT700 Lateral Assembly With Ce W89010102ZT700 Lateral Assembly with Center Pipe

W89010102 Qty 1 $36.00

9

Zodiac Laterals 126mm ZTS500 ZTS700 W01172008ZT500-ZT700 Laterals (126mm)

W01172008 Qty 1 $5.00

10

Zodiac Filter Base Titan W01111062ZT500-ZT700 Filter

W01111062 Qty 1 $82.00

11

Zodiac Titan Water Drain Set W89010107 for ZT Series Fibreglass Sand FiltersWater Drain Set

W89010107 Qty 1 $15.00

-

Zodiac Screw Nut Set ZT 650 W89280107M6×30 Screw with Nut for Standard Lid

W89280107 Qty 1 $8.00

-

Zodiac O-Ring 40mm Connector W0201115140mm Union O-ring

W02011151 Qty 1 $2.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
