Zodiac T3 Spare Parts

T3

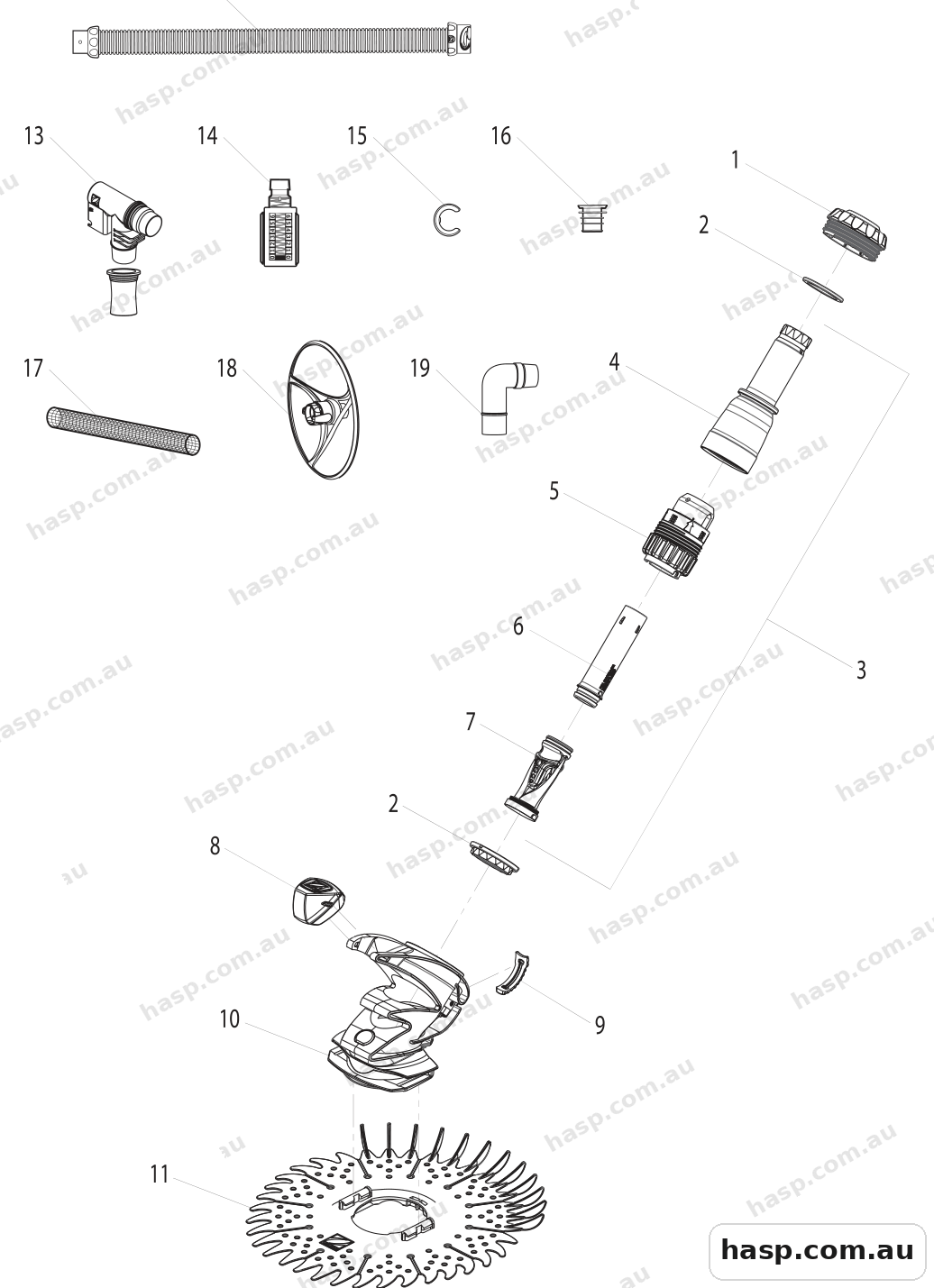

Zodiac T3 Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 104.

1

Zodiac Handnut T3 R3 B3OR W70715T3 Handnut

W70715 Qty 1 $19.00

2

Zodiac Washers Upper Lower T3 B3 R3 W70716T3 Washer Upper & Lower

W70716 Qty 1 $12.00

3

Zodiac Engine T5 T3 B3 R3 W70717T3 Engine

W70717 Qty 1 $105.00

4

Zodiac Outer Extension Tube W70718T3 Outer Extension Tube

W70718 Qty 1 $32.00

5

Zodiac Cup Assembly T5 T3 R3 B3 W70719T3 Cup Assembly

W70719 Qty 1 $23.00

6

Zodiac Inner Extension Tube T3 B3 R3 W70720T3 Inner Extension Tube

W70720 Qty 1 $5.00

7

Zodiac Duralife Diaphragm W73010Duralife Diaphragm

W73010 Qty 1 $62.00

-

Zodiac Duralife Diaphragm 12PK W73010PKDuralife Diaphragm 12PK

W73010PK Qty 1 $557.00

8

Zodiac Float T3 W70733T3 Float

W70733 Qty 1 $7.00

9

Zodiac Bumper T3 B3 R3 W70722T3 Bumper

W70722 Qty 1 $3.00

10

Zodiac Body T3 W70734T3 Body

W70734 Qty 1 $67.00

12

Zodiac Global Hose A0164500Global Hose

A0164500 Qty 1 $39.00

-

Zodiac Hose Jumbo Global 30PK W26060Jumbo Global Hose (Pack of 30)

W26060 Qty 1 $742.00

13

Zodiac Au Flow Valve 1PK W70281CAD Flow Valve

W70281C Qty 1 $65.00

14

Zodiac Pool Pulse W70335Pool Pulse

W70335 Qty 1 $80.00

16

Zodiac Cuff Weir Universal Eva W70263Universal Weir Cuff

W70263 Qty 1 $21.00

17

Zodiac Mesh Hose Protector CL 60CM W33900Hose Protector Mesh

W33900 Qty 1 $11.00

18

Zodiac Quick Release Wheel Deflector 30026400Quick Release Wheel Deflector Assy

30026400 Qty 1 $53.00

19A

Zodiac 90 Degree Flow Elbow A0219700AU 90 Degree Flow Elbow

A0219700 Qty 1 $15.00

19B

Zodiac 90 Degree Elbow 6PK A0219700PKAU 90 Degree Flow Elbow (Pack of 6)

A0219700PK Qty 1 $90.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
