Zodiac POWER 7 & 9 Spare Parts

POWER 7 & 9

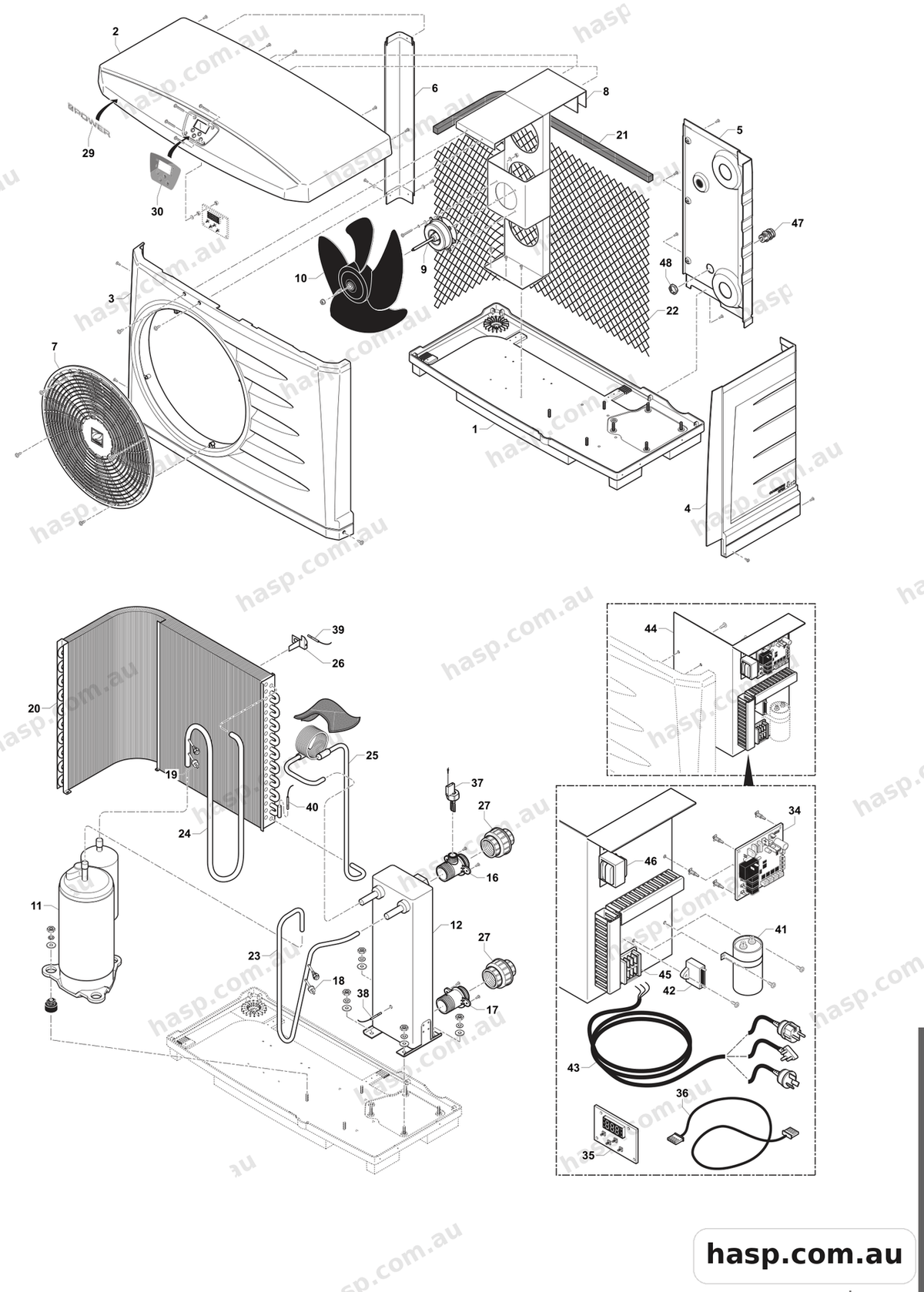

Zodiac POWER 7 & 9 Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 231.

34

Zodiac PCB Board WWA01041PCB Board non Easy Connect version

WWA01041 Qty 1 $106.00

35

Zodiac User Interface for Heat Pump Power 7 and 9 WWA01042User Interface non Easy Connect version

WWA01042 Qty 1 $53.00

36

Zodiac Link Cable PCB User Interface WWA01043Link cable (PCB - User interface)

WWA01043 Qty 1 $11.00

38

Zodiac Water Temperature Sensor WWA01045Water Temperature sensor

WWA01045 Qty 1 $39.00

39

Zodiac Air Temperature Sensor WWA01046Air Temperature sensor

WWA01046 Qty 1 $39.00

40

Zodiac Defrost Temperature Sensor WWA01047Defrost Temperature sensor

WWA01047 Qty 1 $43.00

37

Zodiac Water Flow Switch For Z200HPWater flow switch

V0088000A Qty 1 $57.00

9

Zodiac Motor Suit 7 & 9kW Cooling Fan WWA01009Motor fan 5, 7 et 9 KW

WWA01009 Qty 1 $101.00

42

Zodiac Fan Condensator WWA01051Fan capacitor 5, 7 et 9 KW 2µF

WWA01051 Qty 1 $40.00

46

Zodiac 230/10 5V Transformer R06707230/10,5V transformer

R06707 Qty 1 $64.00

18

Zodiac Pressure Switch HP WWA01021Pressure switch HP

WWA01021 Qty 1 $45.00

30

Zodiac Lexan Power 7 & 9 Heat Pump Label WWA01040Lexan

WWA01040 Qty 1 $7.00

13

Zodiac Water Connection Heat Pump WWA01083Water connection

WWA01083 Qty 1 $15.00

3

Zodiac Front Panel WWA01003Front panel

WWA01003 Qty 1 $142.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
