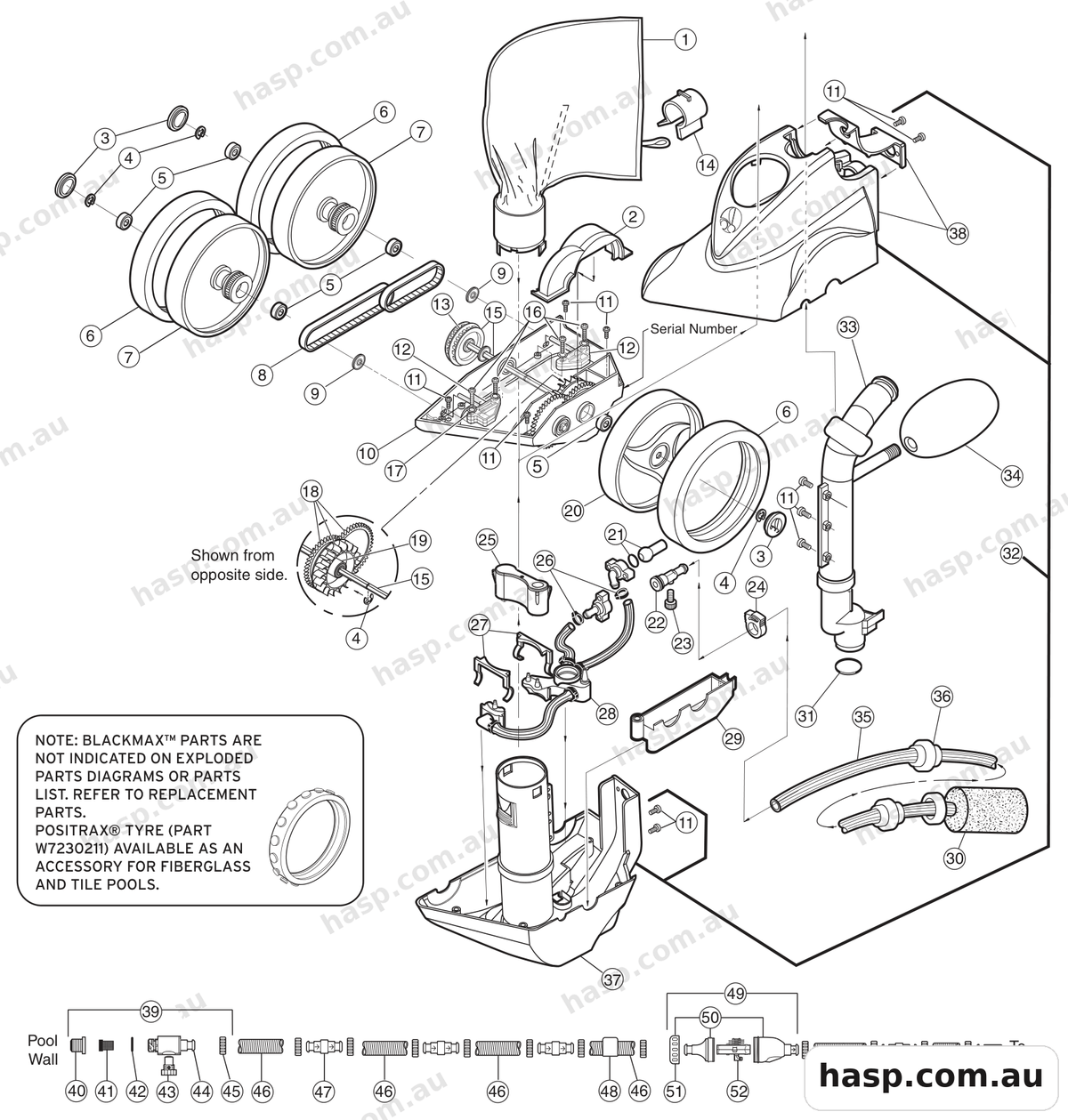

Zodiac POLARIS VAC-SWEEP® 360 Spare Parts
- POLARIS VAC-SWEEP® 360
1
Zodiac All Purpose Bag 360-380 W7330102All-Purpose Bag (380/360)
5
Zodiac Ball Bearing 2 380-360-340 W7330217Ball Bearing
6
Zodiac Tyre Maxtrax 380-360-280-180 W7230210Tyre, MaxTrax®
7
Zodiac Wheel Double Side 1 W7330213Wheel, Double-side (380/360)
8
Zodiac Belt Kit Small And Large 1 W7330215Belt Kit, Small and Large (380/360)
9
Zodiac Shield Bearing 380-360-340 W7330236Shield, Bearing (380/360/ATV)
12
Zodiac Axle Block Assembly Single W7330221Axle Block Kit (Front and Rear) (380/360)
13
Zodiac Belt Divider Transfer Pully W7330214Belt Divider, Transfer Pulley (380/360)
14
Zodiac Collar Bag Tie 360-380 W7530107Collar, Bag Tie
15
Zodiac Transfer Pulley/Drive Shaft W7330212Transfer Pulley/Drive Shaft Assembly (380/360)
16
Zodiac Screw 8-32X0.75 Pan Head W7330228Screw, 8-32 x 3/4" SS Pan Head
17
Zodiac Lock Washer Axle Block Sin W7330230Lock Washer, Axle Block (380/360/ATV)
18
Zodiac Drive Train Gear Kit With Turb W7330220Drive Train Gear Kit with Turbine Bearing (380/360)
19
Zodiac Turbine Wheel With Bearing W7330216Turbine Wheel with Bearing (380/360)
20
Zodiac Wheel Single Side 1 W7330219Wheel, Single-side (380/360)
21
Zodiac Thrust Jet Kit 1 380 360 W7230234Thrust Jet Kit
22
Zodiac Sweep Hose Barb Complete W7330233Sweep Hose Barb Complete
23
Zodiac Adjustment SC Sweep Hose 3 W7230207Adjustment Screw, Sweep Hose
24
Zodiac Sweep Hose Att Clamp White W7230206Sweep Hose Attach Clamp (380/360/280/180)
26
Zodiac Hose Clamp For Water W7230246Hose Clamp WMS
27
Zodiac Jet Retainer 380-360 Single W7330234Jet Retainer
30
Zodiac Sweep Hose Scrubber W7230245Sweep Hose Scrubbers
31
Zodiac O-Ring In Head Timer Feed W7330231O-ring, In-head Timer/Feed Pipe Assembly (380/360)
32
Zodiac Top Base Assembly 380-360 W7330238Top and Base Assembly complete kit
33
Zodiac Feed Pipe Timer Blank 360 W7530210Feed Pipe/Timer Blank Assembly (360)
34
Zodiac Float Head 380-360-280-180 W7230201Float, Head (380/360/280/180)
35
Zodiac Sweep Hose Complete 360 W7530214Sweep Hose Complete
36
37
Zodiac Base Assembly 380-360 W7330237Base Assembly
38
Zodiac Top Housing 380-360 W7330224Top Housing
39
Zodiac Uwf Connector Assembly W7530315UWF Connector Assembly
40
Zodiac Universal Wall Fitting White W7230317UWF (Universal Wall Fitting Filter Screen, UWF/QD
41
Zodiac Filter Sreen Uwf QD 1 All W7230318(All pressure-side products) O-ring, UWF/QD
42
Zodiac O-Ring Uwf QD 1 All W7230319(All pressure-side products)
43
Zodiac Pressure Relief Valve White W7530316Pressure Relief Valve (white)
44
Zodiac Quick Disconnect Uwf W7530314Quick Disconnect, UWF
45
Zodiac Hose Nut 360 W7530320Hose Nut
46
Zodiac Feed Hose 6 Foot W7530318Feed Hose, 6ft
47
Zodiac Swivel Hose W7530313Swivel, Hose
48
Zodiac Float Feed Hose 360 W7530309Float, Feed Hose (360)
49
Zodiac In Line Back Up Valve 360 W7530305In-line Back-up Valve (360)
50
Zodiac Case Kit In Line Back Up W7530306Case Kit, In-line Back-up Valve (360)
51
Zodiac Collar Back Up Valve 360 W7530312Collar, Back-up Valve (360)
52
Zodiac Mechanism In Line Back Up W7530307Mechanism, In-line Back-up Valve (360)
53
Zodiac Feed Hose 1 Foot W7530319Feed Hose, 1ft
54
Zodiac Pressure Stick 360 W7530402Pressure Tester
-
Zodiac Sweep Hose Scrubber W7230245Sweep Hose Scrubber (380/360/280/180)
-
Zodiac Screw 8-32X0.75 Pan Head W7330228Screw, 8-32 x 3/4" SS Pan Head (380/360/ATV)
-
Zodiac Lock Washer Axle Block Sin W7330230Lock Washer, Axle Block (380/360/ATV)
-
Zodiac O-Ring In Head Timer Feed W7330231O-ring, Feed Pipe Assembly (380/360)
-
Zodiac Sweep Hose Barb Complete W7330233Sweep Hose Barb Complete (380/360)
-
Zodiac Jet Retainer 380-360 Single W7330234Jet Retainer (380/360)
-
Zodiac Shield Bearing 380-360-340 W7330236Shield, Bearing (380/360)
-
Zodiac Base Assembly 380-360 W7330237Base Assembly (380/360) Top and Base Assembly (Complete kit replaces top housing pre-Y03 for
-
Zodiac Hose Clamp For Water W7230246Hose Clamp for water management System (380/360/280/180)
-
Zodiac Universal Wall Fitting White W7230317Universal wall Fitting (All pressure-side products)
-
Zodiac Filter Sreen Uwf QD 1 All W7230318Filter Screen, UWF/QD (All pressure-side products)
-
Zodiac O-Ring Uwf QD 1 All W7230319O-ring, UWF/QD (All pressure-side products)
-
Zodiac In Line Back Up Valve 360 W7530305In-Line Back-up Valve (360)
-
Zodiac Case Kit In Line Back Up W7530306Case Kit, In-Line Back-up Valve (360)
-
Zodiac Mechanism In Line Back Up W7530307Mechanisn, In-Line Back-up Valve (360)
-
Zodiac Float Feed Hose 360 W7530309Float, Feed Hose (360)
-
Zodiac Collar Back Up Valve 360 W7530312Collar, Back-up Valve (360)
-
Zodiac Swivel Hose W7530313Swivel, Hose
-
Zodiac Quick Disconnect Uwf W7530314Quick Disconnect, UWF
-
Zodiac Uwf Connector Assembly W7530315UWF Connector Assembly (360)
-
Zodiac Pressure Relief Valve White W7530316Pressure Relief Valve (360)
-
Zodiac Feed Hose 6 Foot W7530318Feed Hose, 6ft
-
Zodiac Feed Hose 1 Foot W7530319Feed Hose, 1ft
-
Zodiac Hose Nut 360 W7530320Hose Nut
-
Zodiac Pressure Stick 360 W7530402Pressure Stick (360)
Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
