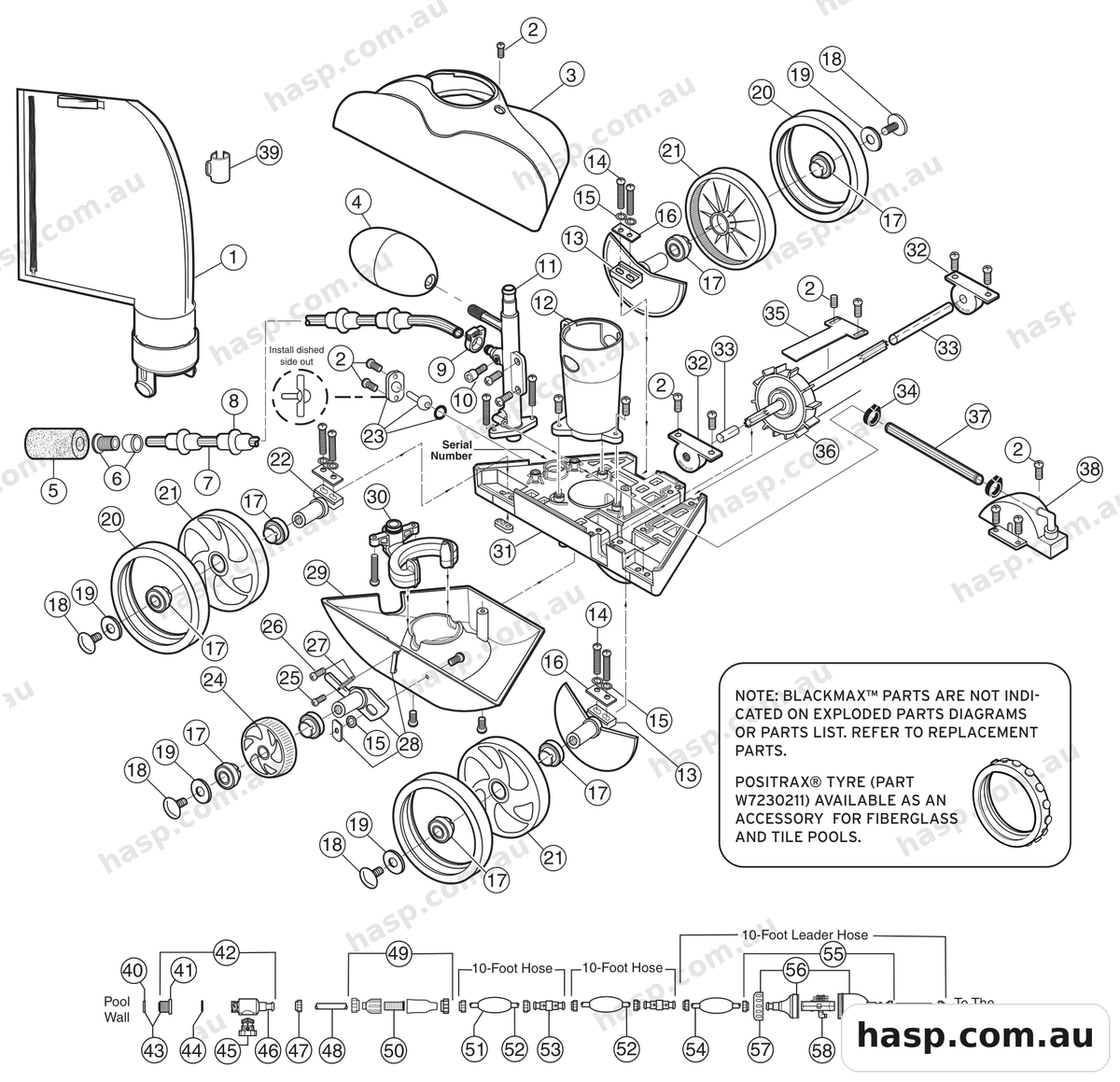

Zodiac POLARIS VAC-SWEEP® 280 Spare Parts
- POLARIS VAC-SWEEP® 280
1
Zodiac All Purpose Bag 280 W7230105All-Purpose Bag (280)
2
Zodiac Screw 10-30 X 3-8 Round W7230220Screw, 10-32 x 3/8" SS Pan Head
3
Zodiac Top Blue 1 280 W7230235Top, Blue (280)
4
Zodiac Float Head 380-360-280-180 W7230201Float, Head
5
Zodiac Sweep Hose Scrubber W7230245Sweep Hose Scrubbers
6
Zodiac Orfice Tip With Orfice Tip W7230208Orifice Tip with Orifice Tip Guard
7
Zodiac Sweep Hose Complete 380 280 18 W7230204Sweep Hose Complete
8
Zodiac Wear Rings 5 380 280 180 360 W7230205Wear Rings (380/360/280/180)
9
Zodiac Sweep Hose Att Clamp White W7230206Sweep Hose Attach Clamp
10
Zodiac Adjustment SC Sweep Hose 3 W7230207Adjustment Screw, Sweep Hose
11
Zodiac Feed Pipe With Elbow W7230243Feed Pipe with Elbow
12
Zodiac Vacuum Tube 1 280 W7230237Vacuum Tube
13
Zodiac Axle Large With Sand Gravel W7230226Axle, Large, with Sand/Gravel Guard (280/180)
14
Zodiac Screw SS10-32X7-8PAN MS Sin W7230228Screw, 10-32 x 7/8" SS Pan Head
15
Zodiac Lock Washer 280-180-5 Pack W7130223PKLock Washer for W7230219 3 pack (280/180)
16
Zodiac Axle Plate C 65 C 66 1 W7230227Axle Plate for W7230225/W7230226 (280/180)
17
Zodiac Ball Bearings Wheels W7230223Ball Bearing, Wheels (280/180)
18
Zodiac Wheel Screw Plastic W7230222Wheel Screw, Plastic (280/180)
19
Zodiac Wheel Washer Plastic Single W7230224Wheel Washer, Plastic (280/180)
20
Zodiac Tyre Maxtrax 380-360-280-180 W7230210Tyre, MaxTrax®
21
Zodiac Wheel Large No Bearings Incl W7230209Wheel, Large, No Bearings Included
22
Zodiac Axle Large Rear Wheel Only W7230225Axle, Large, Rear Wheel Only
23
Zodiac Thrust Jet Kit 1 380 360 W7230234Thrust Jet Kit
24
Zodiac Idler Wheel Small White 1 W7230213Idler Wheel, Small, (280/180)
25
Zodiac Screw SS4-40X3-16-5 Pack W7230217Screw, 4-40 x 3/16" SS Pan Head (280/180)
27
Zodiac Spring 280 180 Single W7230216Spring for W7230219 (280/180)
28
Zodiac Swing Axle Kit 1 280 180 W7230219Swing Axle Kit
29
Zodiac Bottom White With Bracket W7230236Bottom, White with Bracket (280)
30
Zodiac Water Management System W7230238Water Management System (WMS)
31
Zodiac 280 Frame Complete Exchange W7230249Frame Exchange
32
Zodiac Ball Bearings Turbine W7230229Ball Bearings, Turbine (280/180)
34
Zodiac Hose Clamp For Water W7230246Hose Clamp for WMS
36
Zodiac Drive Shaft Assembly 1 W7230231Drive Shaft Assembly
39
Zodiac Bag Collar 280-380 W7230107Bag Collar (380/280)
41
43
Zodiac Uwf Restrictor Kit 1 380 W7330325UWF Restrictor Kit (380/280/180)
44
Zodiac O-Ring Uwf QD 1 All W7230319O-Ring, UWF/QD (All pressure-side)
45
Zodiac Pressure Relief Valve 1 W7230323Pressure Relief Valve (380/280/180 )
47
Zodiac Nut Feed Hose W7230302Nut, Feed Hose (380/280/180)
48
Zodiac Feed Hose 10 Foot W7230305Feeder Hose
49
Zodiac In Line Filter Assembly 480 W7230316In Line Filter Assembly
50
Zodiac Screen Inline Filter W7430231Screen In Line Filter
51
Zodiac Float Feed Hose W7230301Float, Feed Hose (380/280/180)
52
Zodiac Feed Hose 10 Foot W7230305Feed Hose, 3048mm, (380/280/180)
53
Zodiac Swivel Ball Bearing 1 W7230303Swivel, Ball Bearing (380/280/180)
54
Zodiac Leader Hose 10 Foot Single W7230306Leader Hose, 3048mm, (380/280/180)
55
Zodiac Back Up Valve Kit Replaces W7230308Back-up Valve Kit (380/280/180)
56
Zodiac Case Kit For G 52 W7230310Case Kit for W7230308 (380/280/180)
57
Zodiac Collar Back Up Valve W7230312Collar, Back-up Valve (380/280/180)
58
Zodiac Mechanism For G 52 W7230309Mechanism for W7230308 (380/280/180)
-
Zodiac Drive Shaft Assembly 1 W7230231Drive Shaft Assembly (280/180)
-
Zodiac Thrust Jet Kit 1 380 360 W7230234Thrust Jet Kit (380/360/280/180)
-
Zodiac Top Blue 1 280 W7230235Top, Blue (280)
-
Zodiac Bottom White With Bracket W7230236Bottom. White with Bracket (280)
-
Zodiac Vacuum Tube 1 280 W7230237Vacuum Tube (280)
-
Zodiac Water Management System W7230238Water Management System (280)
-
Zodiac Feed Pipe With Elbow W7230243Feed Pipe with Elbow (280)
-
Zodiac Sweep Hose Scrubber W7230245Sweep Hose Scrubber (380/360/280/180)
-
Zodiac Hose Clamp For Water W7230246Hose Clamp for Water Management System (380/360/280/180)
-
Zodiac Float Feed Hose W7230301Float, Feed Hose (380/280/180)
-
Zodiac Nut Feed Hose W7230302Nut, Feed Hose (380/280/180)
-
Zodiac Swivel Ball Bearing 1 W7230303Swivel, Ball Bearing (380/280/180)
-
Zodiac Feed Hose 10 Foot W7230305Feed Hose, 10ft (380/280/180)
-
Zodiac Leader Hose 10 Foot Single W7230306Leader Hose, 10ft (380/280/180)
-
Zodiac Back Up Valve Kit Replaces W7230308Back-up Valve Kit (380/280/180)
-
Zodiac Mechanism For G 52 W7230309Mechanism for W7230308 (380/280/180)
-
Zodiac Case Kit For G 52 W7230310Case Kit for W7230308 (380/280/180)
-
Zodiac Collar Back Up Valve W7230312Collar, Back-up Valve (380/280/180)
-
Zodiac Back Up Valve Kit Replaces W7230308Double Acting Back-up Valve Kit (380 /280/180)
-
Zodiac In Line Filter Assembly 480 W7230316In-Line Filter Assembly
-
Zodiac Universal Wall Fitting White W7230317Universal wall Fitting (All pressure-side products)
-
Zodiac O-Ring Uwf QD 1 All W7230319O-ring, UWF/QD (All pressure-side products)
-
Zodiac Pressure Relief Valve 1 W7230323Pressure Relief Valve (380/280/180)
-
Zodiac Uwf Restrictor Kit 1 380 W7330325UWF Restrictor Kit (380/280/180)
-
Zodiac Drive Shaft Assembly 1 W7230231Screen, In-Line Filter
Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
