Zodiac POLARIS QUATTRO SPORT Spare Parts

POLARIS QUATTRO SPORT

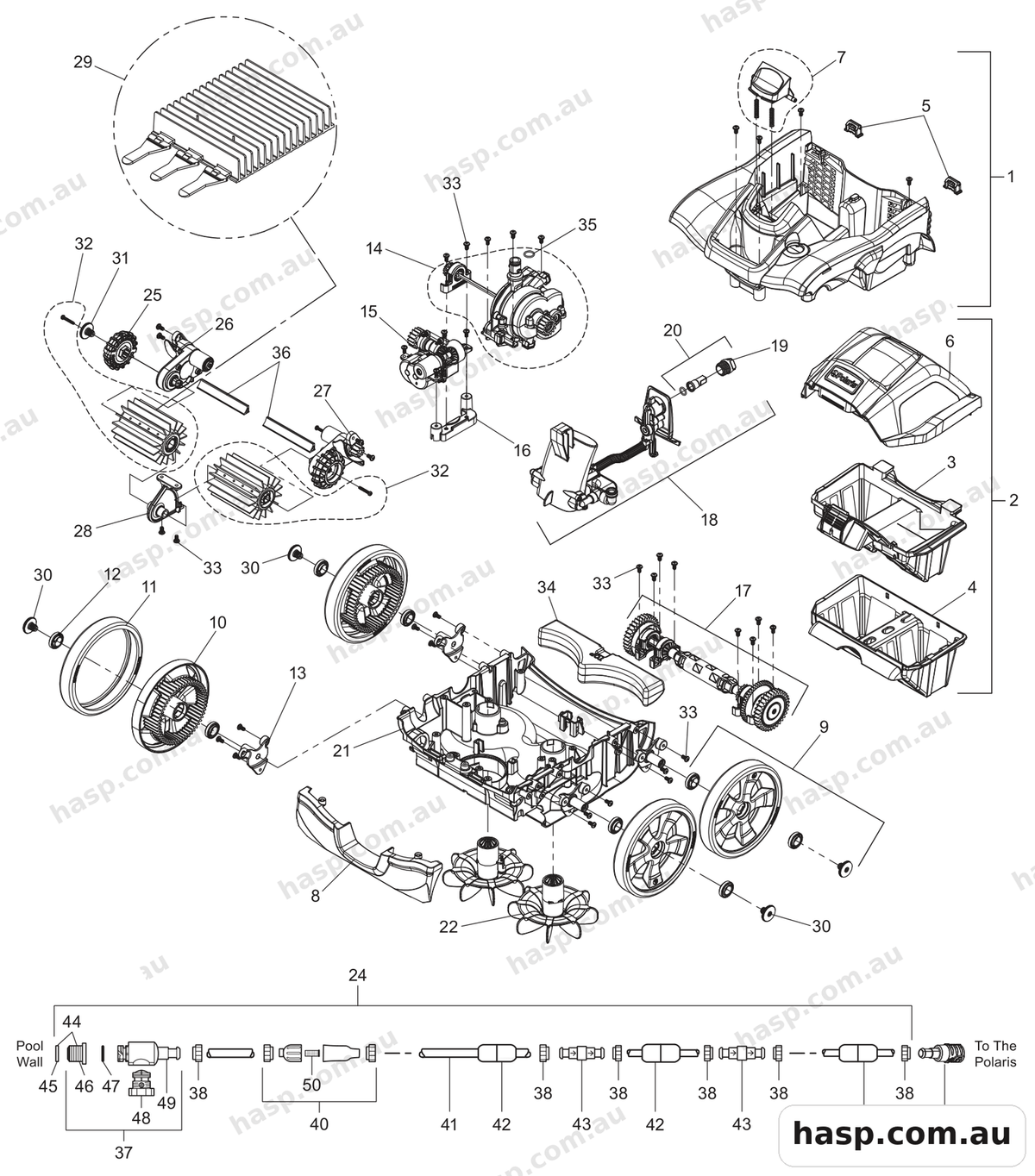

Zodiac POLARIS QUATTRO SPORT Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 106.

2

Zodiac Filter Canister Assembly Blue Pola R0836200FILTER CANISTER ASSEMBLY, BLUE

R0836200 Qty 1 $180.00

7

Zodiac Latch Main Housing With Springs R0882600LATCH, MAIN HOUSING w/ SPRINGS

R0882600 Qty 1 $14.00

11

Zodiac Tyre Maxtrax Black 380-360-280 W7230255Tyre Max Trax, Black

W7230255 Qty 1 $46.00

12

Zodiac Ball Bearings Wheels W7230223Ball Bearing, Wheels

W7230223 Qty 1 $30.00

23

Zodiac Connector Hose Assembly QS White R0838101CONNECTOR, FEED HOSE ASSEMBLY, WHITE

R0838101 Qty 1 $17.00

24

Zodiac Feed Hose C W Uwf 380-280-180 W7230307Feed Hose Complete with UWF, no Back-Up Valve

W7230307 Qty 1 $640.00

33

Zodiac Screw 10-30 X 3-8 Round W7230220Screw, 10-32 x 3/8" SS Pan Head

W7230220 Qty 1 $9.00

34

Zodiac Float Rear Lower Internal R0841900FLOAT, REAR LOWER (INTERNAL)

R0841900 Qty 1 $12.00

38

Zodiac Nut Feed Hose W7230302NUT, FEED HOSE (380/280/180)

W7230302 Qty 1 $11.00

40

Zodiac In Line Filter Assembly 480 W7230316IN-LINE FILTER ASSEMBLY

W7230316 Qty 1 $149.00

41

Zodiac Feed Hose 10 Foot W7230305FEED HOSE, 10FT

W7230305 Qty 1 $94.00

42

Zodiac Float Feed Hose W7230301FLOAT, FEED HOSE

W7230301 Qty 1 $21.00

43

Zodiac Swivel Ball Bearing 1 W7230303SWIVEL, BALL BEARING

W7230303 Qty 1 $43.00

44

Zodiac Uwf Restrictor Kit 1 380 W7330325UWF RESTRICTOR KIT

W7330325 Qty 1 $26.00

46

Zodiac Universal Wall Fitting White W7230317PRODUCTS)

W7230317 Qty 1 $13.00

47

Zodiac O-Ring Uwf QD 1 All W7230319O-RING, UWF/QD (ALL PRESSURE-SIDE PRODUCTS)

W7230319 Qty 1 $6.00

48

Zodiac Pressure Relief Valve 1 W7230323PRESSURE RELIEF VALVE

W7230323 Qty 1 $30.00

50

Zodiac Screen Inline Filter W7430231SCREEN, IN-LINE FILTER

W7430231 Qty 1 $31.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
