Zodiac POLARIS 3900 SPORT Spare Parts

  • POLARIS 3900 SPORT
Zodiac POLARIS 3900 SPORT Spare Parts

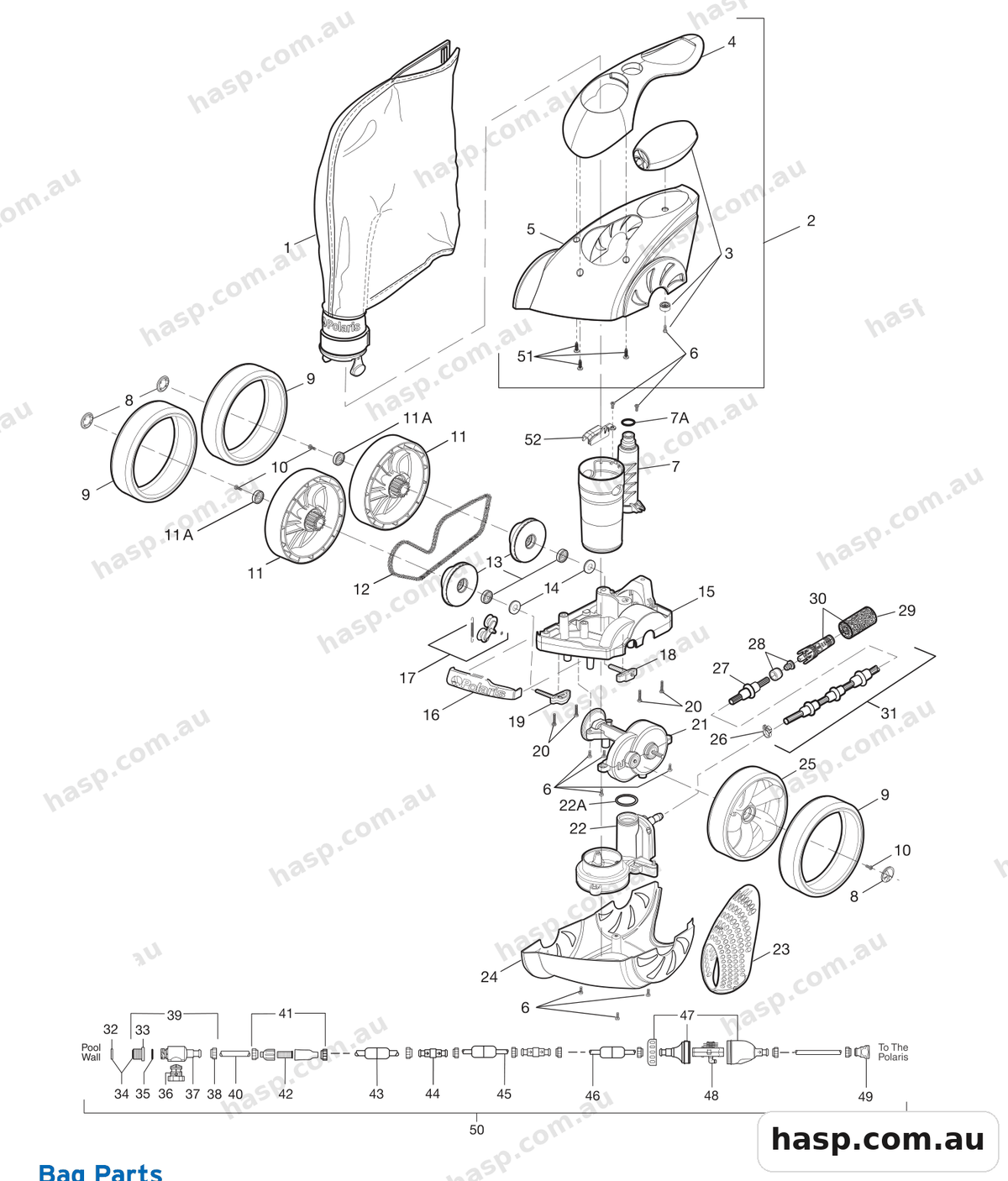

Tap the diagram to enlarge. Plate 1 of 2. Zodiac catalogue page 116.
Zodiac POLARIS 3900 SPORT Spare Parts

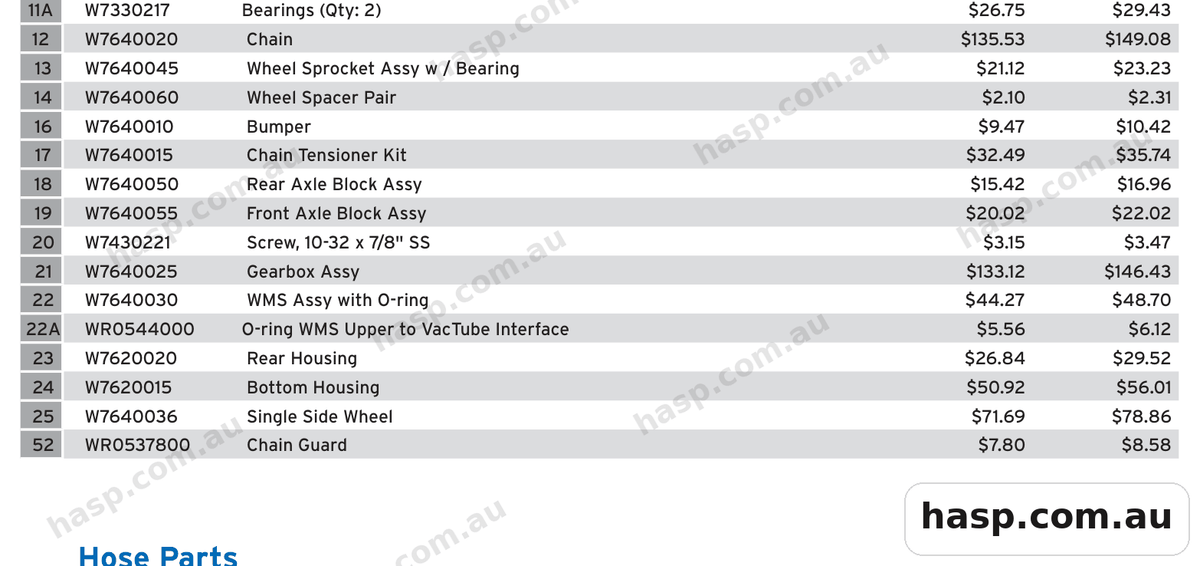

Tap the diagram to enlarge. Plate 2 of 2.
3
Zodiac Float Head Kit WR0538000Float, Head Kit
WR0538000 Qty 1 $33.00
6
Zodiac Screw 10-30 X 3-8 Round W7230220Screw, 10-32 x 3/8" SS Pan Head 9 Single
W7230220 Qty 1 $9.00
7
Zodiac 3900S Vacuum Tube Feed Pipe W7620025Vacuum tube / Feed Pipe Assy w / O-ring
W7620025 Qty 1 $33.00
9
Zodiac Tyres Widetrax Black W7430237Tire, WideTrax®, Black (Qty=3)
W7430237 Qty 1 $80.00
10
Zodiac Wheel 480 Screw 8-32 Pell It N W7430218Wheel Lock Screw (Qty = 3)
W7430218 Qty 1 $28.00
26
Zodiac Sweep Attach Clamp Black Single W7230253Sweep Hose attach Clamp, Black
W7230253 Qty 1 $6.00
28
Zodiac Orfice Tip With Orfice Tip W7230208Orifice Tip with Orifice Tip Guard (3900S / 380 / 280 / 180)
W7230208 Qty 1 $9.00
29
Zodiac Sweep Hose Scrubber W7230245Sweep Hose Scrubber (3900S / 380 / 360 / 280 / 180)
W7230245 Qty 1 $8.00
30
Zodiac Tailsweep Pro TSP100TailSweep PRO®
TSP100 Qty 1 $51.00
31
Zodiac Sweep Hose Complete 3900S W7630010Sweep Hose Complete ( does not include TailSweep PRO)
W7630010 Qty 1 $169.00
32
Zodiac Uwf Restrictor Discs 2 Pack W7230325PKUWF Restrictor Discs. Red & Blue (3900S / 380 / 280 / 180) (Pack of 2)
W7230325PK Qty 1 $17.00
33
Zodiac Universal Wall Fitting White W7230317UWF Restrictor Kit
W7230317 Qty 1 $13.00
34
Zodiac Uwf Restrictor Kit 1 380 W7330325Universal Wall Fitting (UWF)
W7330325 Qty 1 $26.00
35
Zodiac O-Ring Uwf QD 1 All W7230319O-Ring, UWF
W7230319 Qty 1 $6.00
36
Zodiac Pressure Relief Valve 1 W7230323Pressure Relief Valve, Black (3900S / 380 / 280 / 180)
W7230323 Qty 1 $30.00
38
Zodiac Nut Feed Hose 4 Pack W7230302PKNut, Feed Hose (3900S / 380 / 280 / 180) (Pack of 4)
W7230302PK Qty 1 $44.00
41
Zodiac In Line Filter Assembly 480 W7230316In-Line Filter Assembly
W7230316 Qty 1 $149.00
42
Zodiac Screen Inline Filter W7430231Screen, In-Line Filter (3900S / 480 / 380 / 280)
W7430231 Qty 1 $31.00
43
Zodiac Float Feed Hose W7230301Float, Feed Hose (3900S / 380 / 280 / 180)
W7230301 Qty 1 $21.00
44
Zodiac Swivel Ball Bearing 4 Pack W7230303PKSwivel Ball Bearing, (3900S / 380 / 280 / 180) (Pack of 4)
W7230303PK Qty 1 $163.00
45
Zodiac Feed Hose 10 Foot W7230305Feed Hose, 10 Foot, (3900S / 380 / 280 / 180)
W7230305 Qty 1 $94.00
46
Zodiac Leader Hose 10 Foot Single W7230306Leader Hose, 10 Foot, (3900S / 380 / 280 / 180)
W7230306 Qty 1 $144.00
47
Zodiac Back Up Valve Kit Replaces W7230308Back-up Valve Kit (3900S / 480 / 380 / 280 / 180)
W7230308 Qty 1 $275.00
48
Zodiac Mechanism For G 52 W7230309Mechanism for W7230308 (3900S / 380 / 280 / 180)
W7230309 Qty 1 $200.00
49
Zodiac Feed Hose Connector Ass W7430229Feed Hose Connector Assembly
W7430229 Qty 1 $62.00
50
Zodiac Feed Hose C W Uwf 380-280-180 W7230307Feed Hose Complete with UWF, no Back-Up Valve (3900S /380 / 280 / 180)
W7230307 Qty 1 $640.00
-
Zodiac Coupling 1.5 NPTF X 0.75 W7230401Coupling, 40mm NPTF x 3/4" NPTM (3900S, 380/280/180)
W7230401 Qty 1 $28.00
-
Zodiac Pressure Tester Without Gauge W7230403Pressure Tester w/o Gauge (3900S, 380/280/180)
W7230403 Qty 1 $74.00
-
Zodiac Uwf Removal Tool Plastic W7230408UWF Removal Tool, Plastic (All pressure-side products)
W7230408 Qty 1 $22.00
-
Zodiac MV3 Power Seperator W90012Booster Pump Timer Control
W90012 Qty 1 $979.00
-
Zodiac 50mm SLP X 1.5 Female Pipe Thread Wall WP101900050mm Glue in Wall Fitting
WP1019000 Qty 1 $48.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
