Zodiac LEGACY LRZ GAS HEATERS Spare Parts

  • LEGACY LRZ GAS HEATERS
Zodiac LEGACY LRZ GAS HEATERS Spare Parts

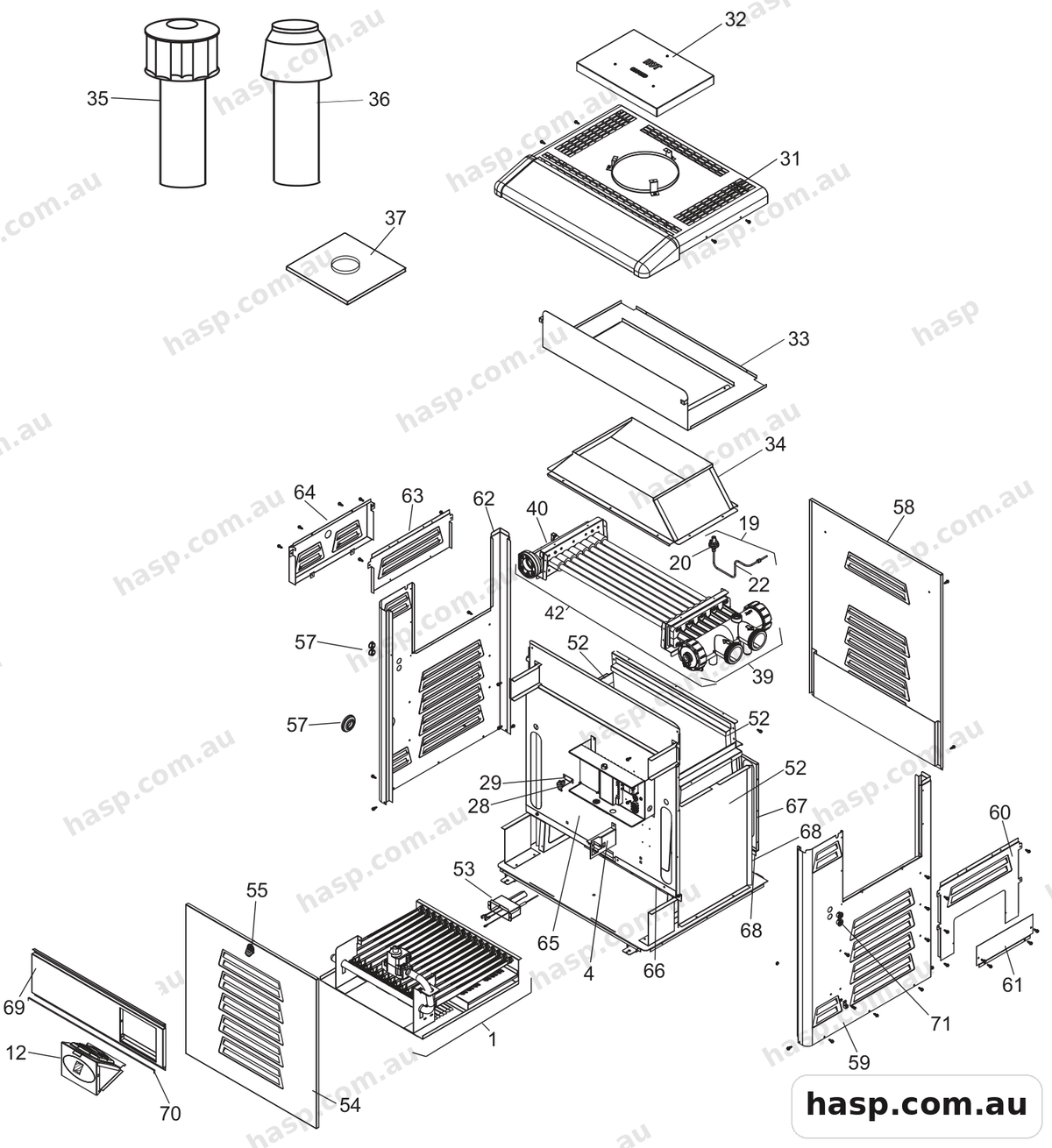

Tap the diagram to enlarge. Plate 1 of 2. Zodiac catalogue page 223.
Zodiac LEGACY LRZ GAS HEATERS Spare Parts

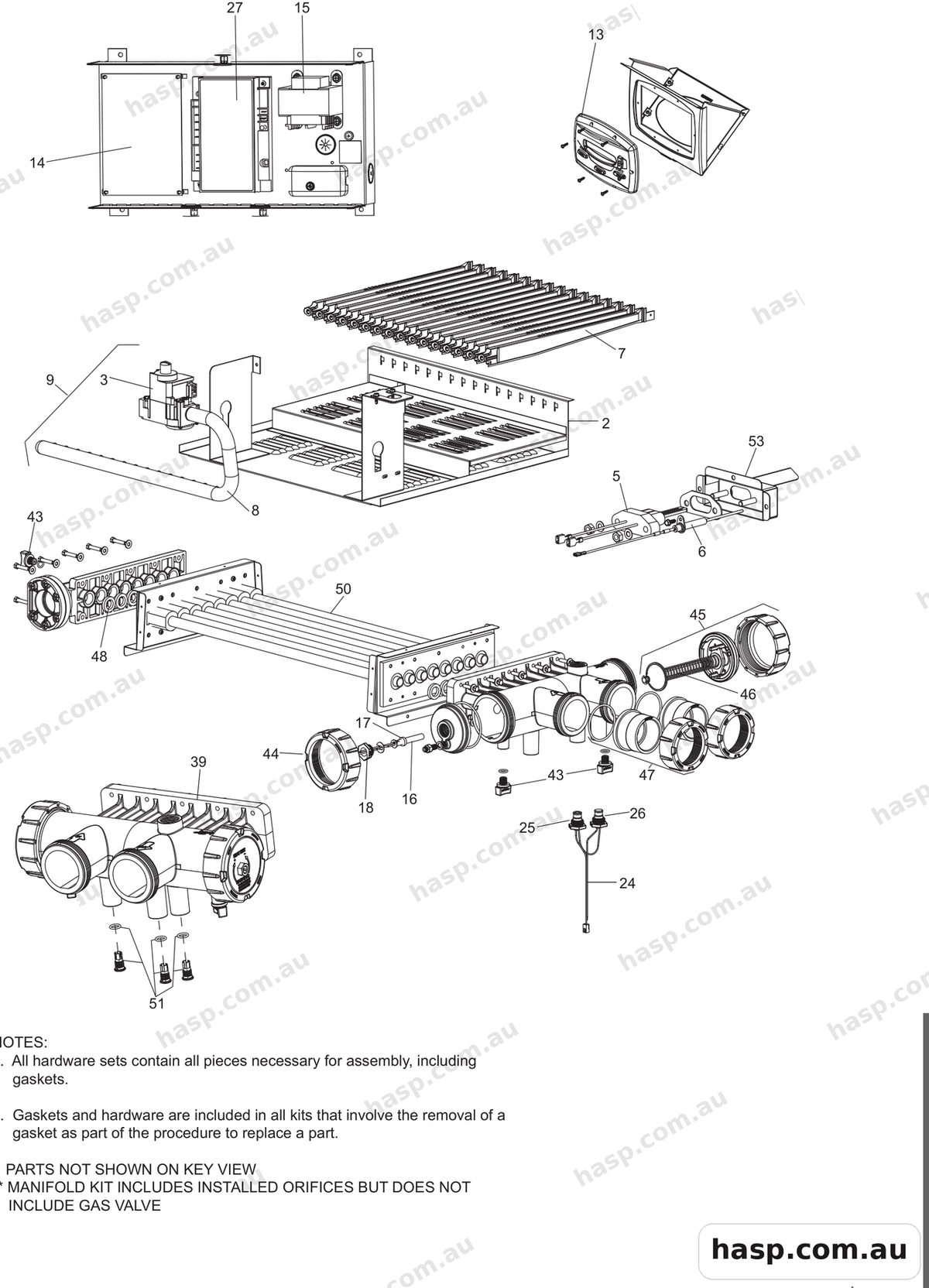

Tap the diagram to enlarge. Plate 2 of 2.
3
Zodiac Gas Valve Natural WR0523100Gas Valve, Natural
WR0523100 Qty 1 $361.00
5
Zodiac Jandy LRZ HSI Hot Surface Igniter - R0457501Hot Surface Igniter
WR0457501 Qty 1 $385.00
6
Zodiac Flame Sensor RodFlame Sensor Rod
WR0458601 Qty 1 $56.00
7
Zodiac Burner Main WR0469800Burner, Main
WR0469800 Qty 1 $28.00
10*
Zodiac Gas Conversion Natural LPG WR0523300Gas Conversion, Natural to LPG
WR0523300 Qty 1 $487.00
13
Zodiac Universal Ctrl User InterfaUniversal Control User Interface
WR3008800 Qty 1 $328.00
Enquire
14
Zodiac Universal Ctrl Powr InterfaUniversal Control Power Interface
WR0470200 Qty 1 $244.00
16
Zodiac / Astralpool IXI, JXI, LRZ, Lite Temperature Sensor KitTemperature Sensor
WR0456500 Qty 1 $45.00
18
Zodiac Nut Sensor Retainer WR0523900Nut, Sensor Retainer
WR0523900 Qty 1 $10.00
19
Zodiac Pressure Switch Ass 2 Psi WR0455400Pressure Switch Assembly (2 PSI)
WR0455400 Qty 1 $25.00
20
Zodiac Pressure Switch 2 Psi WR0013200Pressure Switch, 2 PSI
WR0013200 Qty 1 $64.00
21*
Zodiac Pressure Switch 1-10 Psi WR0015500Pressure Switch, 1-10 PSI
WR0015500 Qty 1 $110.00
25
Zodiac High-Limit Switch 52Deg CHigh-Limit Switch, 42°C (Manual Reset)
WR0514200 Qty 1 $61.00
26
Zodiac High-Limit Switch 52Deg CHigh-Limit Switch, 52°C
WR0514300 Qty 1 $61.00
27
Zodiac Ignition Control WR0486200Ignition Control
WR0486200 Qty 1 $283.00
28
Astralpool HiNRG / Zodiac LRZ Main Panel Fusible Link - 152°CFusible Link Assembly
WR0012200 Qty 1 $38.00
29
Zodiac Fusible Link Bracket WR0337200Fusible Link Bracket
WR0337200 Qty 1 $27.00
39
Zodiac In Outlet Head Assembly Polyme WR0470800InletOutlet Header Assy, Polymer
WR0470800 Qty 1 $322.00
41*
Zodiac Head Hardware Set Polymer WR0454500Header Hardware Set, Polymer
WR0454500 Qty 1 $19.00
43
Zodiac JXI / LRZ / Jandy Lite 2 Legacy - Drain Plugs (Pair)Heat Exchanger Drain Plugs (2), Polymer
WR0446000 Qty 1 $6.00
44
Zodiac NLS - Zodiac LRZ Manifold End Cap - 3" Coupling Nut & O-ring WR04540003" Coupling Nut Kit w O-ring
WR0454000 Qty 1 $62.00
Enquire
46
Zodiac Bypass Spring Adjust PolymBypass Spring, Adjustable, Polymer
WR0453900 Qty 1 $15.00
47
Zodiac Tailpiece W Union Nut SET2 2 WR0449000Tailpiece w Union Nut (Set of 2), 2"
WR0449000 Qty 1 $59.00
-
Zodiac LRZ175 Combust Chamber Panl WR0494902LRZ 175 COMBUSTION CHAMBER PANELS
WR0494902 Qty 1 $785.00
-
Zodiac LRZ325 Combust Chamber Panl WR0494904LRZ 325 COMBUSTION CHAMBER PANELS
WR0494904 Qty 1 $883.00
75*
Zodiac Temperature Rise Measurement Kit WR0336000Temp Rise Measurement Kit
WR0336000 Qty 1 $143.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
