Zodiac (JANDY) CV SERIES Spare Parts

(JANDY) CV SERIES

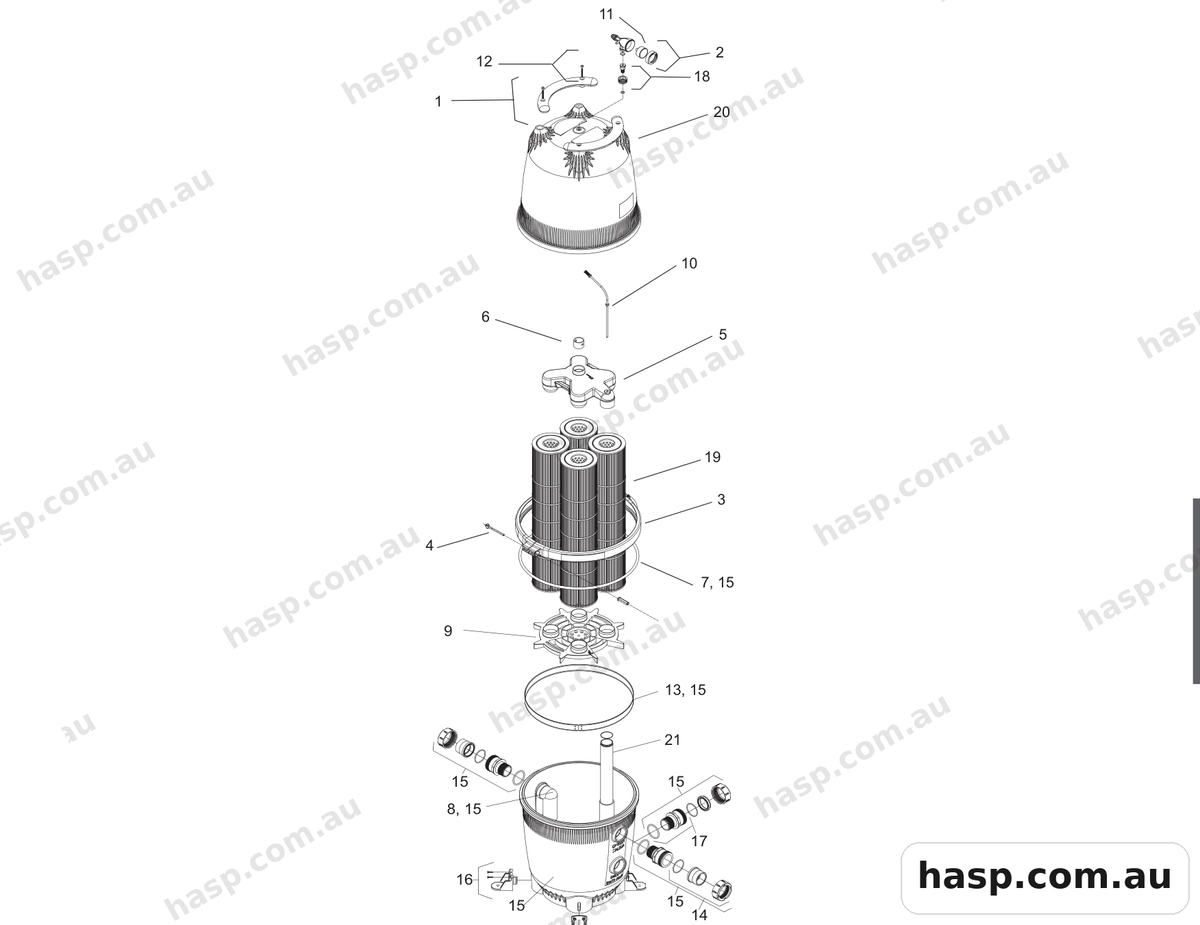

Zodiac (JANDY) CV SERIES Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 149.

2

Zodiac Gauge Air Release Assembly WR0357200Gauge/Air Release Assembly

WR0357200 Qty 1 $151.00

4

Zodiac Threaded Rod And Retainer WR0357500Threaded Rod and Retainer

WR0357500 Qty 1 $217.00

5

Zodiac Manifold Assembly WR0357600Manifold Assembly

WR0357600 Qty 1 $115.00

7

Zodiac / Jandy Tank O-Ring WR0357800 (R0357800) for CV, CL, DEV & DEL FiltersTank O-ring

WR0357800 Qty 1 $91.00

-

Zodiac O-Ring Replacement Kit WR0358000O-ring Replacement Kit (not shown)

WR0358000 Qty 1 $45.00

8

Zodiac / Jandy Inlet Elbow with O-Ring WR0358400 (R0358400) for CV, CL, DEV & DEL FiltersInlet Elbow w/O-ring

WR0358400 Qty 1 $72.00

11

Zodiac / Jandy Pressure Gauge with O-Ring WR0359600 (R0359600) for CV, CL, DEV & DEL FiltersPressure Gauge w/O-ring

WR0359600 Qty 1 $61.00

14

Zodiac Tailpiece Cap Union Nut Set WR0461800Tailpiece, Cap and Union Nut Set (Set of 3), 2 by 2.5"

WR0461800 Qty 1 $94.00

16

Zodiac Anchor Bracket Qty 4 WR0465500Anchor Bracket (Qty 4)

WR0465500 Qty 1 $115.00

17

Zodiac Bulkhead Assembly O-Ring CV WR0465600Bulkhead Assembly w/O-ring, CV Filter

WR0465600 Qty 1 $86.00

18

Zodiac / Jandy Tank Adapter with O-Ring & Union WR0552000 (R0552000) for CV, CL, DEV & DEL FiltersTank Adapter w/O-ring – Union

WR0552000 Qty 1 $58.00

19

Zodiac® Genuine 340CV Filter Cartridge - 85 Sq Ft WR0554500Filter Cartridge, 85 sq. ft. (4 required) 340 sq. ft.

WR0554500 Qty 1 $213.00

-

Zodiac Filter Cartridge 115 Sq Ft WR0554600Filter Cartridge, 115 sq. Ft. (4 required) 460 sq.ft

WR0554600 Qty 1 $255.00

-

Zodiac Filter Cartridge 145 Sq Ft. WR0357900Filter Cartridge, 145 sq. Ft. (4 required) 580 sq.ft.

WR0357900 Qty 1 $300.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
