Zodiac (JANDY) CS SERIES Spare Parts

(JANDY) CS SERIES

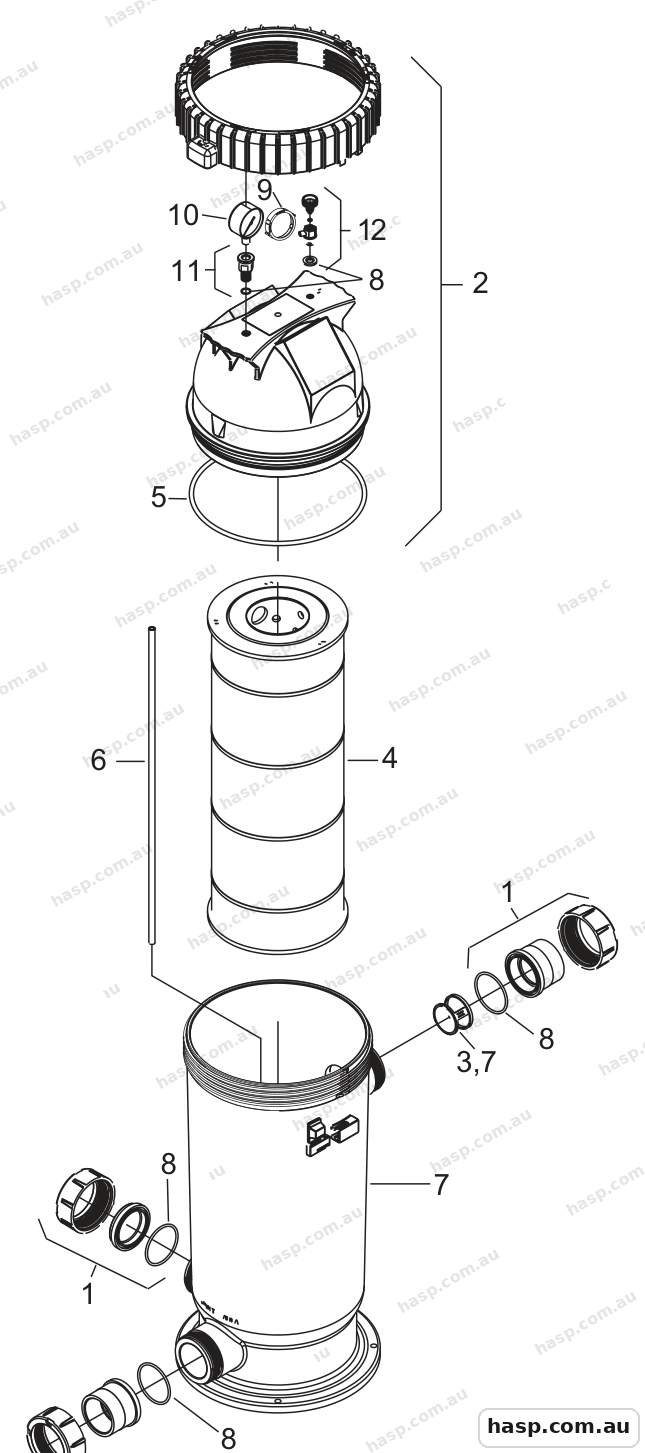

Zodiac (JANDY) CS SERIES Spare Parts — Tap the diagram to enlarge. Zodiac catalogue page 148.

1

Zodiac Tailpiece Cap Union Nut Set WR0461800Tailpiece, Cap and Union Nut Set (Set of 3), 2 by 2.5"

WR0461800 Qty 1 $94.00

2

Zodiac Top Housing Assembly CS100 WR0461900Top Housing Assembly CS100, CS150

WR0461900 Qty 1 $277.00

3

Zodiac Inlet Diffuser With Locking WR0462100Inlet Diffuser with Locking Tab

WR0462100 Qty 1 $11.00

4

Zodiac Cartridge Element 100 Sq Ft WR0462200Cartridge Element, 100 Sq. Ft., CS100

WR0462200 Qty 1 $312.00

4

Zodiac Cartridge Element 150 Sq Ft WR0462300Cartridge Element, 150 Sq. Ft., CS150

WR0462300 Qty 1 $417.00

4

Zodiac Cartridge Element 250 Sq Ft WR0462500Cartridge Element, 250 Sq. Ft., CS250

WR0462500 Qty 1 $552.00

5

Zodiac O-Ring Tank Top WR0462700O-Ring, Tank Top

WR0462700 Qty 1 $43.00

6

Zodiac Breather Tube CS100 CS150 WR0462801Breather Tube, CS100, CS150

WR0462801 Qty 1 $9.00

7

Zodiac Bottom Housing Assembly CS Filter WR0462900Bottom Housing Assembly

WR0462900 Qty 1 $711.00

8

Zodiac O-Ring Set WR0466300O-Ring Set

WR0466300 Qty 1 $30.00

9

Zodiac Clean/Dirty Indicator WR0468200CleanDirty Snap Ring

WR0468200 Qty 1 $16.00

10

Zodiac Pressure Gauge 0-60PSI WR0556900Pressure Gauge, 0-60 psi

WR0556900 Qty 1 $50.00

11

Zodiac Pressue Gauge Adapter WR0557100Pressure Gauge Adapter

WR0557100 Qty 1 $18.00

12

Zodiac Air Release Valve WR0557200Air Release Valve

WR0557200 Qty 1 $41.00

-

Zodiac In Line Filter Strainer Jandy W7519Jandy In Line Filter/Strainer

W7519 Qty 1 $164.00

-

Zodiac Energy Filter Element Kit WR0374600Element for Filter/Inline Strainer

WR0374600 Qty 1 $94.00

-

Zodiac O-Ring Kit Kitenergy Filter WR0374500Oring for the jandy Inline Filter/Strainer

R0374500 Qty 1 $8.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
