Zodiac G2 Spare Parts

  • G2
Zodiac G2 Spare Parts

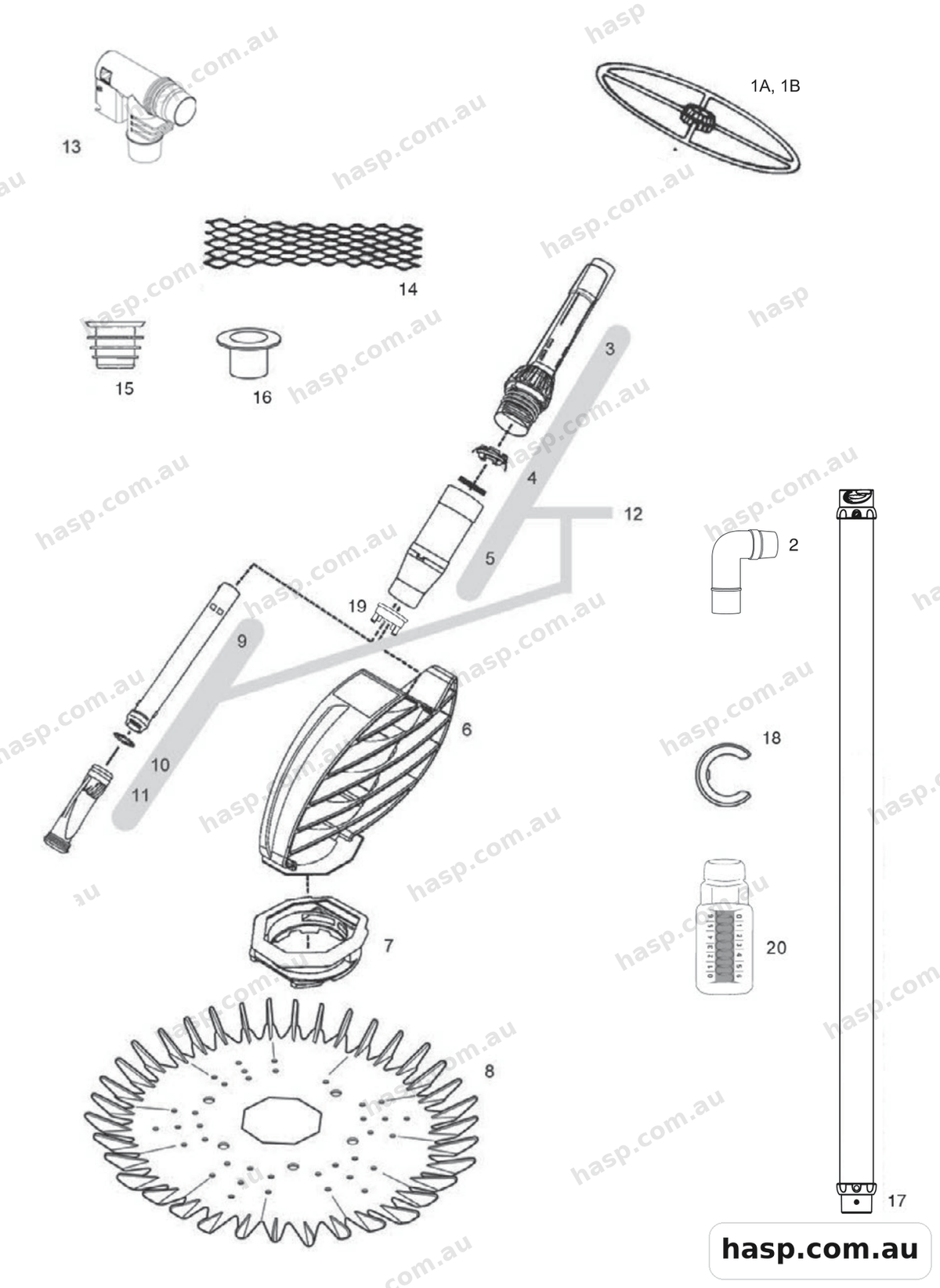

Tap the diagram to enlarge. Zodiac catalogue page 102.
1A
Zodiac Adj. Wheel Deflector 1PK W70730CAdjustable Wheel Deflector
W70730C Qty 1 $41.00
1B
Zodiac Wheel Large Pearl Blue W69720Large Deflector Wheel
W69720 Qty 1 $49.00
2A
Zodiac 90 Degree Flow Elbow A0219700AU 90 Degree Flow Elbow
A0219700 Qty 1 $15.00
2B
Zodiac 90 Degree Elbow 6PK A0219700PKAU 90 Degree Flow Elbow (Pack of 6)
A0219700PK Qty 1 $90.00
3
Zodiac New OEP With Adaptor W70511G2 Outer Extension Pipe with Yellow Hand Nut
W70511 Qty 1 $122.00
4
Zodiac Compression Ring 12 Pack W74000PKCompression Ring (Pack of 12)
W74000PK Qty 1 $138.00
5
Zodiac G2 Cassette Chamber Au Blue W70667G2 Cassette Chamber - Bottom
W70667 Qty 1 $228.00
6
Zodiac Frame Assembly G2 Au W70382G2 Frame Assembly
W70382 Qty 1 $459.00
7
Zodiac Flexi Foot 1PK W69721CFlexi Foot
W69721C Qty 1 $50.00
8
Zodiac 36FIN Disc 1PK W70179CG2 Disc 36 Fin
W70179C Qty 1 $187.00
9
Zodiac Inner Extn Pipe Polyprop W56525G2 Inner Extension Pipe
W56525 Qty 1 $83.00
10
Zodiac Retaining Ring 6 Pack W81600PKDiaphragm Retaining Ring (Pack of 6)
W81600PK Qty 1 $52.00
11
Zodiac Diaphragm Cassette 12 Pack W81710PKG2 Cassette Diaphragm Long Life (Pack of 12)
W81710PK Qty 1 $465.00
13
Zodiac Au Flow Valve 1PK W70281CAD Flow Valve
W70281C Qty 1 $65.00
14
Zodiac Mesh Hose Protector CL 60CM W33900Hose Protector Mesh
W33900 Qty 1 $11.00
15
Zodiac Cuff Weir Universal Eva W70263Universal Weir Cuff
W70263 Qty 1 $21.00
16
Zodiac Insert Hose Pink 10 Pack W30217PKLeader Hose Adaptor (Pack of 10)
W30217PK Qty 1 $41.00
17A
Zodiac Global Hose A0164500Global Hose (Twist & Lock)
A0164500 Qty 1 $39.00
17B
Zodiac Hose Single Light Blue W30135Single Length Hose
W30135 Qty 1 $35.00
19
Zodiac G2 Locking Collar - Screw-In Collar for the Cassette Hand Nut - W69731Locking Collar (Screw In)
W69731 Qty 1 $13.00
20
Zodiac Pool Pulse W70335Pool Pulse
W70335 Qty 1 $80.00
-
Zodiac Float Cover Genie Yellow W69782G2 Float Cover
W69782 Qty 1 $16.00
-
Zodiac Float G2 W69530G2 Float Chamber
W69530 Qty 1 $25.00
-
Zodiac Weight Cover G2 Yellow Set 2 W69201G2 Weight Cover
W69201 Qty 1 $25.00
-
Zodiac Weight Lead G2 W58829G2 Weight
W58829 Qty 1 $25.00
-
Zodiac Hose Jumbo Global 30PK W26060Jumbo Hose 30PK Twist & Lock
W26060 Qty 1 $742.00
-
Zodiac Hose Jumbo Light Blue 30PK W26035Hose Jumbo Light Blue Standard hose 30PK
W26035 Qty 1 $687.00
-
Zodiac Wheel Medium Grey W46015GENIE Medium Wheel Deflector
W46015 Qty 1 $37.00
-
Zodiac Adaptor Hose Wheel Grey W41725GENIE Wheel Adaptor
W41725 Qty 1 $13.00
-
Zodiac G2 Locking Collar - Screw-In Collar for the Cassette Hand Nut - W69731Locking Collar (Screw In)
W69731 Qty 1 $13.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
