Zodiac FR800 IQ Spare Parts

  • FR800 IQ
  • FR800
Zodiac FR800 IQ Spare Parts

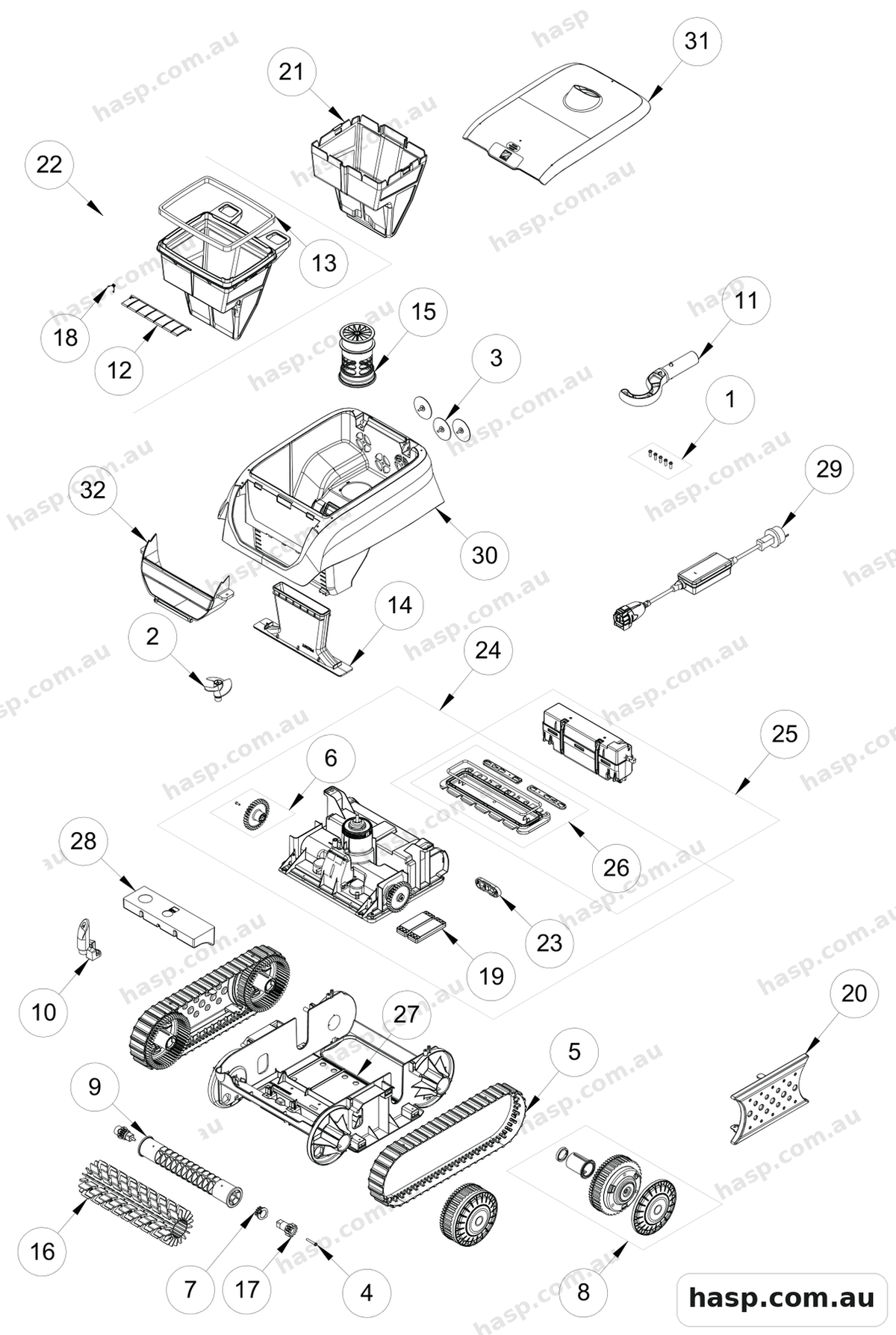

Tap the diagram to enlarge. Zodiac catalogue page 78.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER C
R0633200 Qty 1 $5.00
3
Zodiac Exhaust Valve C Set Of 3 R0633300EXHAUST VALVE C (SET OF 3)
R0633300 Qty 1 $8.00
4
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
5
Zodiac Track / Belt CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895200TRACK CN X2
R0895200 Qty 1 $72.00
6
Zodiac Drive Gear Kit CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895600GEAR MOTOR CN X2 KIT
R0895600 Qty 1 $8.00
7
Zodiac Outer Bearing CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896600OUTER BEARING CN *2
R0896600 Qty 1 $7.00
8
Zodiac Wheel CN Black - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897300WHEEL BLACK CN KIT
R0897300 Qty 1 $27.00
9
Zodiac Large Brush Roller CN R0940400LARGE BRUSH ROLLER CN
R0940400 Qty 1 $14.00
10
Zodiac Front Cap Freerider R0972200FRONT CAP CB
R0972200 Qty 1 $9.00
11
Zodiac Hook Freerider R0972500HOOK CB EU
R0972500 Qty 1 $14.00
12
Zodiac Flap Filter Body F CN R0999800FLAP FILTER BODY F CN
R0999800 Qty 1 $14.00
13
Zodiac Seal Filter Body F CN R0999900SEAL FILTER BODY F CN
R0999900 Qty 1 $14.00
14
Zodiac Inlet Channel Small CN R1000000INLET CHANNEL SMALL CN
R1000000 Qty 1 $23.00
15
Zodiac Flow Outlet Small CN R1000100FLOW OUTLET SMALL CN
R1000100 Qty 1 $14.00
16
Zodiac Large Brush Classic Light Grey R1000200LARGE BRUSH CLASSIC LIGHT GREY CN
R1000200 Qty 1 $30.00
17
Zodiac Gear Brush Machined CN (*2) R1005500GEAR BRUSH MACHINED CN (*2)
R1005500 Qty 1 $6.00
18
Astralpool / Zodiac Spring For Filter Torbat R1008400SPRING FILTER TB
R1008400 Qty 1 $5.00
19
Astralpool / Zodiac Ballast Larger (set Of 2) R1065900BALLAST LARGER (SET OF 2)
R1065900 Qty 1 $17.00
20
Zodiac Flange Body D Ral 7021 CN *2 R1071100FLANGE BODY D RAL 7021 CN *2
R1071100 Qty 1 $16.00
21
Zodiac Fine Filter Small CN 60M R1083400FINE FILTER SMALL CN 60µ
R1083400 Qty 1 $70.00
22
Zodiac Coarse Filter Small CN R1083600COARSE FILTER SMALL CN
R1083600 Qty 1 $70.00
23
Zodiac Power Switch MPPC R1086900POWER SWITCH MPPC COMPLETE BLOCK WITHOUT BATTERY MPPC
R1086900 Qty 1 $18.00
24
Zodiac Comp Block No Battery MPPC Ful R1087000FULL
R1087000 Qty 1 $569.00
25
Zodiac Battery Block MPPC R1087200BATTERY BLOCK MPPC
R1087200 Qty 1 $473.00
26
Zodiac Battery Door Silders O-Ring R1087300BATTERY DOOR + SILDERS + ORING
R1087300 Qty 1 $39.00
27
Zodiac Chassis MPP Cordless R1087400CHASSIS MPP CORDLESS
R1087400 Qty 1 $62.00
28
Zodiac Front Float MPP Cordless R1087500FRONT FLOAT MPP CORDLESS
R1087500 Qty 1 $9.00
29
Zodiac Charger 1A Aus MPPC R1087800CHARGER 1A AUS MPPC
R1087800 Qty 1 $89.00
30
Zodiac Body G CN Navy Blue Without LED R1088500BODY G CN NAVY BLUE W/O LED
R1088500 Qty 1 $112.00
31
Zodiac Cover Body G Clear Zodiac R1088600COVER BODY G CLEAR ZODIAC
R1088600 Qty 1 $70.00
32
Zodiac Handle Navy Blue Yellow Body G R1088900HANDLE NAVY BLUE YELLOW BODY G CN
R1088900 Qty 1 $18.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
