Zodiac FR2000 IQ Spare Parts

  • FR2000 IQ
  • FR2000
Zodiac FR2000 IQ Spare Parts

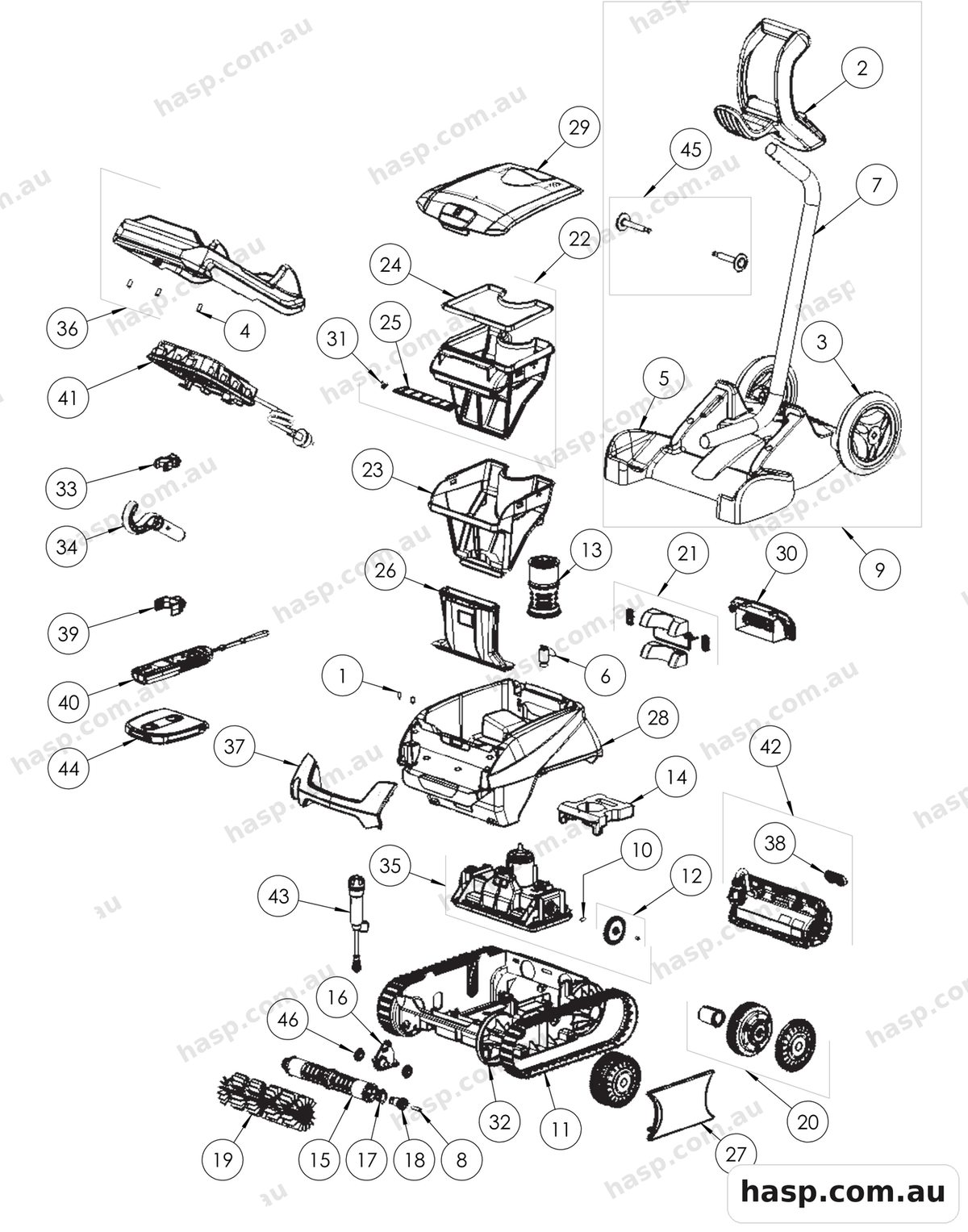

Tap the diagram to enlarge. Zodiac catalogue page 74.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Caddy Handle R0565000CADDY HANDLE
R0565000 Qty 1 $88.00
3
Zodiac Caddy Wheel R0565100CADDY WHEELS (*2)
R0565100 Qty 1 $56.00
4
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16MM (SET OF 5)
R0608500 Qty 1 $4.00
5
Zodiac Complete Lower Part Trolley C. R0632800COMPLETE LOWER PART TROLLEY C
R0632800 Qty 1 $104.00
6
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER C
R0633200 Qty 1 $5.00
7
Zodiac Trolley Tube C. R0634400TROLLEY TUBE C
R0634400 Qty 1 $64.00
8
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
9
Zodiac Complete Trolley C R0639500TROLLEY KIT C
R0639500 Qty 1 $328.00
10
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5)
R0657900 Qty 1 $9.00
11
Zodiac Track / Belt CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895200TRACK CN X2
R0895200 Qty 1 $72.00
12
Zodiac Drive Gear Kit CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895600GEAR MOTOR CN X2 KIT
R0895600 Qty 1 $8.00
13
Zodiac Flow Outlet CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895700FLOW OUTLET CN
R0895700 Qty 1 $36.00
14
Zodiac Chassis Float CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896300FLOAT PUMP CN
R0896300 Qty 1 $10.00
15
Zodiac Brush Roller CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896400BRUSH ROLLER CN X2
R0896400 Qty 1 $15.00
16
Zodiac Roller Support / Intermediate Plate CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896500INTERMEDIATE PLATE CN
R0896500 Qty 1 $6.00
17
Zodiac Outer Bearing CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896600OUTER BEARING CN *2
R0896600 Qty 1 $7.00
18
Zodiac 12 Point Gear CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896700GEAR BRUSH CN *2
R0896700 Qty 1 $7.00
19
Zodiac Brush Scrubber CN Grey (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896900BRUSH LIGHT GREY CN X2 ZODIAC
R0896900 Qty 1 $30.00
20
Zodiac Wheel CN Black - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897300WHEEL BLACK CN KIT
R0897300 Qty 1 $27.00
21
Zodiac Rear Flap Door Kit CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897400REAR FLAP KIT
R0897400 Qty 1 $19.00
22
Zodiac 150 Micron Dual Canister Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0897600FILTER COARSE 150M CN KIT
R0897600 Qty 1 $127.00
23
Zodiac 60 Micron Dual Canister Over Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0898100FILTER FINE 60M CN
R0898100 Qty 1 $127.00
24
Zodiac Filter Canister Seal CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898300SEAL FILTER CN
R0898300 Qty 1 $27.00
25
Zodiac Filter Canister Inlet Flap CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898400FLAP FILTER CN
R0898400 Qty 1 $7.00
27
Zodiac Short Flange CN Black (Set of 2) - FreeRider FR1000/FR2000 iQ - R0902400FLANGE SHORT BLACK CN *2
R0902400 Qty 1 $21.00
28
Zodiac Body Housing CN B (Navy Blue) - FreeRider FR1000/FR2000 iQ - R0902600BODY B NAVY CN
R0902600 Qty 1 $157.00
29
Zodiac Complete Top Cover CN (Smoke) - FreeRider FR1000 iQ / FR2000 iQ - R0902700COMPLETE COVER BODY B SMOKED ZODIAC CN
R0902700 Qty 1 $136.00
30
Zodiac Rear Grid CN B (Black) - FreeRider FR1000/FR2000 iQ - R0903400REAR GRID BLACK BODY B CN
R0903400 Qty 1 $14.00
31
Zodiac Canister Inlet Flap Spring CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0905500SPRING FILTER CN
R0905500 Qty 1 $6.00
32
Zodiac Lower Housing Chassis CB R0972100LOWER HOUSING CHASSIS CB
R0972100 Qty 1 $98.00
33
Zodiac Clip Hook CB R0972400CLIP HOOK CB
R0972400 Qty 1 $6.00
34
Zodiac Hook Freerider R0972500HOOK CB EU
R0972500 Qty 1 $14.00
35
Zodiac Motor Block Kit - FreeRider FR1000 iQ / FR2000 iQ - R0972600MOTOR BLOCK KIT CB EU
R0972600 Qty 1 $600.00
36
Zodiac Charger Top CB - FreeRider FR1000 iQ / FR2000 iQ - R0972800CHARGER TOP EU CB
R0972800 Qty 1 $111.00
37
Zodiac Fluo Yellow Handle Freerider R0974200FLUO YELLOW HANDLE CB
R0974200 Qty 1 $22.00
38
Zodiac Power Switch Freerider R1000900POWER SWITCH CB
R1000900 Qty 1 $15.00
39
Zodiac Remote Clip Freerider R1021300CLIP LIFI REMOTE CB
R1021300 Qty 1 $5.00
40
Zodiac Freerider Lifi Remote R1021400LIFI REMOTE CB
R1021400 Qty 1 $186.00
42
Zodiac Battery Block CB LiFi - FreeRider FR2000 iQ - R1021600BATTERY BLOCK CB LIFI
R1021600 Qty 1 $778.00
43
Zodiac LiFi Receiver - FreeRider FR2000 iQ - R1021700LIFI RECEIVER CB
R1021700 Qty 1 $271.00
46
Zodiac Ball Bearing W79034MX8 BEARINGS, LARGE HOLE
W79034 Qty 1 $6.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
