Zodiac FR200 Spare Parts

  • FR200
Zodiac FR200 Spare Parts

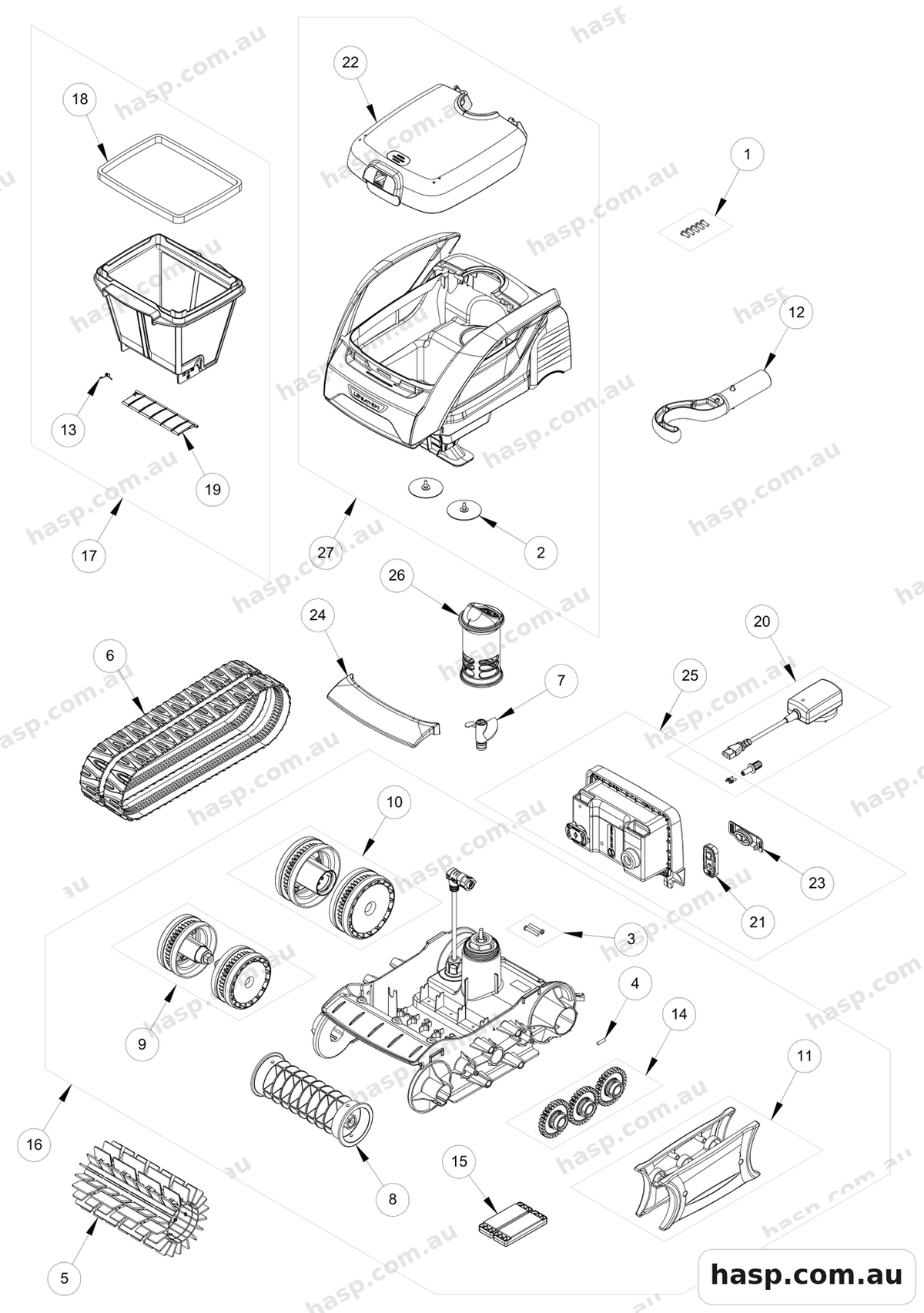

Tap the diagram to enlarge. Zodiac catalogue page 82.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Exhaust Valve C Set Of 3 R0633300EXHAUST VALVE C (SET OF 3)
R0633300 Qty 1 $8.00
3
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
4
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5)
R0657900 Qty 1 $9.00
5
Zodiac TornaX TX20 TX30 TX35 Robotic Pool Cleaner Brush R0764900BRUSH SCRUBBER R9022
R0764900 Qty 1 $37.00
6
Zodiac Tracks TX R0765600TRACK WHEEL (SET OF 2)
R0765600 Qty 1 $39.00
7
Zodiac Impeller TX R0766200IMPELLER
R0766200 Qty 1 $5.00
8
Zodiac Holder Brush Holder TX R0767000BRUSH HOLDER
R0767000 Qty 1 $28.00
9
Zodiac Wheel Complete Front TX 2 R0771800COMPLETE FRONT WHEELS
R0771800 Qty 1 $47.00
10
Zodiac Wheel Complete Back TX 2 R0771900COMPLETE BACK WHEELS
R0771900 Qty 1 $47.00
12
Zodiac Hook Freerider R0972500HOOK CB EU
R0972500 Qty 1 $14.00
13
Astralpool / Zodiac Spring For Filter Torbat R1008400SPRING FILTER TB
R1008400 Qty 1 $5.00
14
Astralpool / Zodiac Complete Gears System Torbat R1065600COMPLETE GEARS SYSTEM TB
R1065600 Qty 1 $16.00
15
Astralpool / Zodiac Ballast Larger (set Of 2) R1065900BALLAST LARGER (SET OF 2)
R1065900 Qty 1 $17.00
16
Astralpool / Zodiac Chassis Torbat Light Grey R1066000COMPLETE CHASSIS LIGHT GREY TB
R1066000 Qty 1 $332.00
17
Zodiac Filter Assembly 150 TB R1066200FILTER ASSEMBLY 150 TB
R1066200 Qty 1 $76.00
18
Astralpool / Zodiac Seal Filter Torbat R1066400SEAL FILTER TB
R1066400 Qty 1 $15.00
19
Astralpool / Zodiac Flap Filter Torbat Cleaner R1066500FLAP FILTER TB
R1066500 Qty 1 $5.00
20
Astralpool / Zodiac Charging Cord Torbat R1066800CHARGING CORD, TB AUS
R1066800 Qty 1 $66.00
21
Zodiac Power Switch TB R1067100POWER SWITCH TB
R1067100 Qty 1 $13.00
22
Zodiac Cover Clear TB Zodiac R1067300COVER CLEAR TB ZODIAC
R1067300 Qty 1 $67.00
23
Astralpool / Zodiac Charging Cap R1081500CHARGING CAP TB F+W
R1081500 Qty 1 $7.00
24
Astralpool / Zodiac Front Float TB R1083700FRONT FLOAT TB
R1083700 Qty 1 $8.00
25
Zodiac Battery Block TB F W R1084200BATTERY BLOCK TB F+W FLOW OUTLET HONEYCOMB BLACK WITH NOZ-
R1084200 Qty 1 $379.00
26
Zodiac Flow Outlet HB Black W Nozzle R1094400ZLE NAVY BLUE TB
R1094400 Qty 1 $13.00
27
Zodiac Body B TB Zodiac Navy Blue R1094500BODY B TB ZODIAC NAVY BLUE
R1094500 Qty 1 $144.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
