Zodiac EX6000 IQ Spare Parts

  • EX6000 IQ
  • EX6000
Zodiac EX6000 IQ Spare Parts

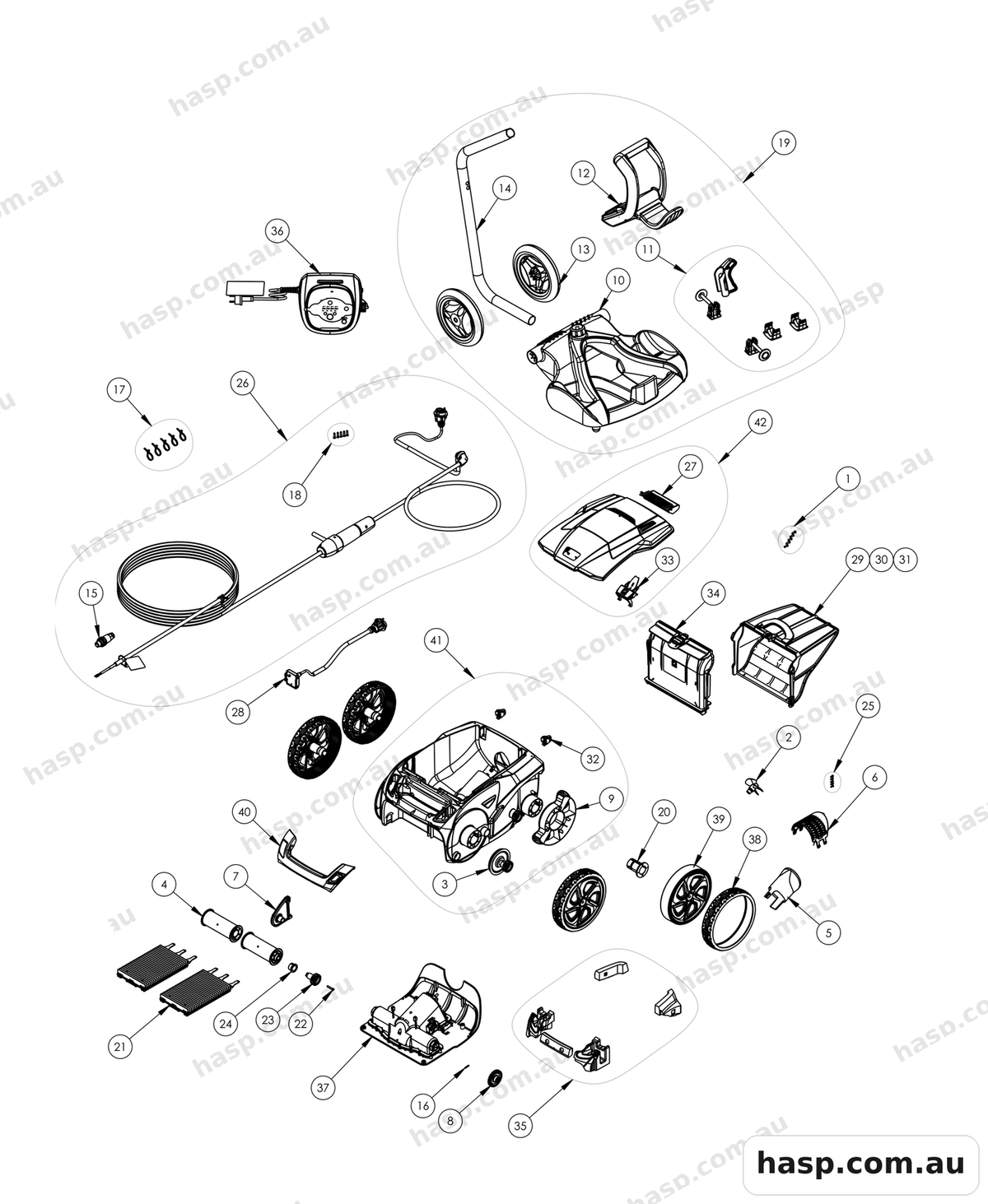

Tap the diagram to enlarge. Zodiac catalogue page 154.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Propeller Zodiac R0517000PROPELLER
R0517000 Qty 1 $13.00
3
Zodiac Transmission Kit R0517200TRANSMISSION KIT
R0517200 Qty 1 $21.00
4
Zodiac Brush Roller Vortex Set Of 2 R0517400BRUSH ROLLER (SET OF 2)
R0517400 Qty 1 $49.00
5
Zodiac Flow Outlet Kit R0517500FLOW OUTLET KIT
R0517500 Qty 1 $17.00
6
Zodiac Motor Screen R0517600MOTOR SCREEN
R0517600 Qty 1 $11.00
7
Zodiac Brush Seperator Support R0518700ROLLER SUPPORT
R0518700 Qty 1 $6.00
9
Zodiac Wheel Cover R0540300COVER WHEEL PROTECTION
R0540300 Qty 1 $16.00
10
Zodiac Cady Base For Vortex R0564800CADDY BASE
R0564800 Qty 1 $104.00
11
Zodiac Caddy Accessories R0564900CADDY ACCESSORIES KIT
R0564900 Qty 1 $38.00
12
Zodiac Caddy Handle R0565000CADDY HANDLE
R0565000 Qty 1 $88.00
13
Zodiac Caddy Wheel R0565100CADDY WHEEL (SET OF 2)
R0565100 Qty 1 $56.00
14
Zodiac Caddy Tube R0565200CADDY TUBE KIT
R0565200 Qty 1 $67.00
15
Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG
R0565600 Qty 1 $59.00
16
Zodiac Motor Block Shaft Pin 5PK R0567800MOTOR BLOCK SHAFT PIN (SET OF 5)
R0567800 Qty 1 $8.00
17
Zodiac Floating Cable Clamp 5PK R0567900FLOATING CABLE CLAMP (SET OF 5)
R0567900 Qty 1 $8.00
18
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16 MM A4 (*5)
R0608500 Qty 1 $4.00
19
Zodiac Vortex Trolley Complete R0609100TROLLEY KIT COMPLETE
R0609100 Qty 1 $344.00
20
Zodiac Bearing Wheel Vortex R0636700WHEEL BUSHING ZODIAC
R0636700 Qty 1 $9.00
22
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25MM (SET OF 5)
R0638900 Qty 1 $4.00
23
Zodiac 17 Teeth Gear Pack Of 2 R063900017 GEAR (*2)
R0639000 Qty 1 $7.00
24
Zodiac Bearing Outer Bearing 2 R0639100OUTER BEARING (*2)
R0639100 Qty 1 $8.00
25
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200SCREW 2.9*9.5MM (SET OF 5)
R0639200 Qty 1 $4.00
26
Zodiac 21M Swivel Cable R0726700CSWIVEL FLOATING CABLE KIT 21M
R0726700C Qty 1 $510.00
27
Zodiac Rear Float / Back Cover Assembly Bypass - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0863200BACK COVER ASSEMBLY
R0863200 Qty 1 $25.00
28
Zodiac Sensor Block Assembly - EvoLux EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0863300SENSOR BLOCK ASSEMBLY
R0863300 Qty 1 $348.00
29
Zodiac Evolux iQ, EX400, EX5000, EX6000 iQ, vIRON QT1000 Ultra Fine Filter 60 Micron - R0863500ULTRA FINE FILTER 60
R0863500 Qty 1 $127.00
30
Zodiac Fine Filter 100 Micron R0863600FINE FILTER 100
R0863600 Qty 1 $127.00
31
Zodiac Large Filter 200 Micron R0863700LARGE FILTER 200
R0863700 Qty 1 $127.00
32
Zodiac Roller Brush VR (Set of 2) - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0864900ROLLER, 2PK
R0864900 Qty 1 $49.00
33
Zodiac Cover Latch Evolux R0865000COVER LATCH VR S Z
R0865000 Qty 1 $16.00
34
Zodiac Filter Canister Support VR R0865100FILTER CANISTER SUPPORT VR
R0865100 Qty 1 $48.00
35
Zodiac Float Evolux R0865200FLOAT VR S
R0865200 Qty 1 $14.00
36
Zodiac Control Box VR1 iQ (Full) - EvoLux EX6000 iQ / EX6050 iQ - R0869200CONTROL BOX
R0869200 Qty 1 $553.00
37
Zodiac Motor Block VR Type 2 - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0865400MOTOR BLOCK TYPE 2
R0865400 Qty 1 $569.00
38
Zodiac Tyre Black R7021 R0865500TYRE, BLACK R7021
R0865500 Qty 1 $54.00
39
Zodiac Rim VRS R7021 Silver/Grey R0865600RIM VR S R7021 PRINTED SILVER GREY
R0865600 Qty 1 $74.00
40
Zodiac Handle With Window Navy Blue/S R0865700HANDLE WITH WINDOW, NAVY BLUE/SILVER
R0865700 Qty 1 $59.00
41
Zodiac Main Housing VR S Navy Blue R0865800MAIN HOUSING VR S NAVY BLUE
R0865800 Qty 1 $325.00
42
Zodiac Complete Cover with Bypass VR S Holes (Navy Blue) - EvoLux EX6000 iQ / EX6050 iQ - R0865900COMPLETE COVER
R0865900 Qty 1 $223.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
