Zodiac EX4000 IQ Spare Parts

  • EX4000 IQ
  • EX4000
Zodiac EX4000 IQ Spare Parts

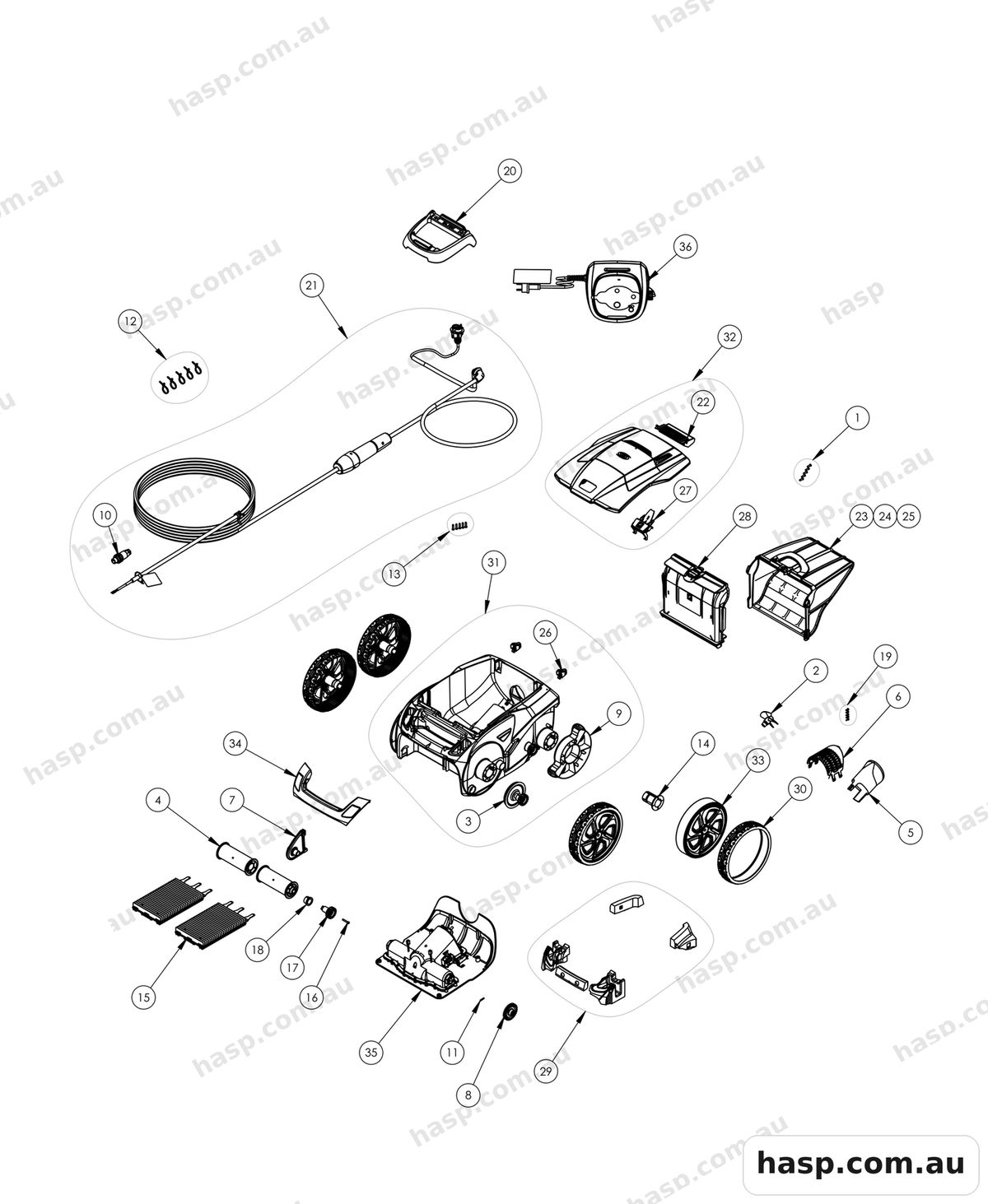

Tap the diagram to enlarge. Zodiac catalogue page 160.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Propeller Zodiac R0517000PROPELLER
R0517000 Qty 1 $13.00
3
Zodiac Transmission Kit R0517200TRANSMISSION KIT
R0517200 Qty 1 $21.00
4
Zodiac Brush Roller Vortex Set Of 2 R0517400BRUSH ROLLER (SET OF 2)
R0517400 Qty 1 $49.00
5
Zodiac Flow Outlet Kit R0517500FLOW OUTLET KIT
R0517500 Qty 1 $17.00
6
Zodiac Motor Screen R0517600MOTOR SCREEN
R0517600 Qty 1 $11.00
7
Zodiac Brush Seperator Support R0518700ROLLER SUPPORT
R0518700 Qty 1 $6.00
9
Zodiac Wheel Cover R0540300WHEEL COVER
R0540300 Qty 1 $16.00
10
Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG
R0565600 Qty 1 $59.00
11
Zodiac Motor Block Shaft Pin 5PK R0567800MOTOR BLOCK SHAFT PIN (SET OF 5)
R0567800 Qty 1 $8.00
12
Zodiac Floating Cable Clamp 5PK R0567900FLOATING CABLE CLAMP (SET OF 5)
R0567900 Qty 1 $8.00
13
Zodiac Screw 4 16mm Set Of 5 R0608500VIS 4*16 MM A4 (*5)
R0608500 Qty 1 $4.00
14
Zodiac Bearing Wheel Vortex R0636700WHEEL BUSHING ZODIAC
R0636700 Qty 1 $9.00
16
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25MM (SET OF 5)
R0638900 Qty 1 $4.00
17
Zodiac 17 Teeth Gear Pack Of 2 R063900017 GEAR (*2)
R0639000 Qty 1 $7.00
18
Zodiac Bearing Outer Bearing 2 R0639100OUTER BEARING (*2)
R0639100 Qty 1 $8.00
19
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200SCREW 2.9*9.5MM (SET OF 5)
R0639200 Qty 1 $4.00
20
Zodiac Control Unit Base R0662600CONTROL UNIT BASE
R0662600 Qty 1 $14.00
21
Zodiac Cable Swivel Floating 15M R0799500SWIVEL FLOATING CABLE KIT 15M
R0799500 Qty 1 $430.00
22
Zodiac Rear Float / Back Cover Assembly Bypass - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0863200BACK COVER ASSEMBLY
R0863200 Qty 1 $25.00
23
Zodiac Evolux iQ, EX400, EX5000, EX6000 iQ, vIRON QT1000 Ultra Fine Filter 60 Micron - R0863500ULTRA FINE FILTER 60
R0863500 Qty 1 $127.00
24
Zodiac Fine Filter 100 Micron R0863600FINE FILTER 100
R0863600 Qty 1 $127.00
25
Zodiac Large Filter 200 Micron R0863700LARGE FILTER 200
R0863700 Qty 1 $127.00
26
Zodiac Roller Brush VR (Set of 2) - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0864900ROLLER, 2PK
R0864900 Qty 1 $49.00
27
Zodiac Cover Latch Evolux R0865000COVER LATCH
R0865000 Qty 1 $16.00
28
Zodiac Filter Canister Support VR R0865100FILTER CANISTER INLET HOUSING
R0865100 Qty 1 $48.00
29
Zodiac Float Evolux R0865200FLOATS
R0865200 Qty 1 $14.00
30
Zodiac Tyre Black R7021 R0865500TIRE, BLACK R7021
R0865500 Qty 1 $54.00
31
Zodiac Main Housing VR S Navy Blue R0865800MAIN BODY HOUSING, NAVY BLUE
R0865800 Qty 1 $325.00
32
Zodiac Complete Cover Navy Blue R0867200COMPLETE COVER NAVY BLUE
R0867200 Qty 1 $217.00
35
Zodiac Motor Block VR Type 1 R0867700MOTOR BLOCK VR TYPE 1
R0867700 Qty 1 $707.00
36
Zodiac Control Box Type 3 R0869400CONTROL BOX TYPE 3
R0869400 Qty 1 $397.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
