Zodiac DX4000 Spare Parts

  • DX4000
Zodiac DX4000 Spare Parts

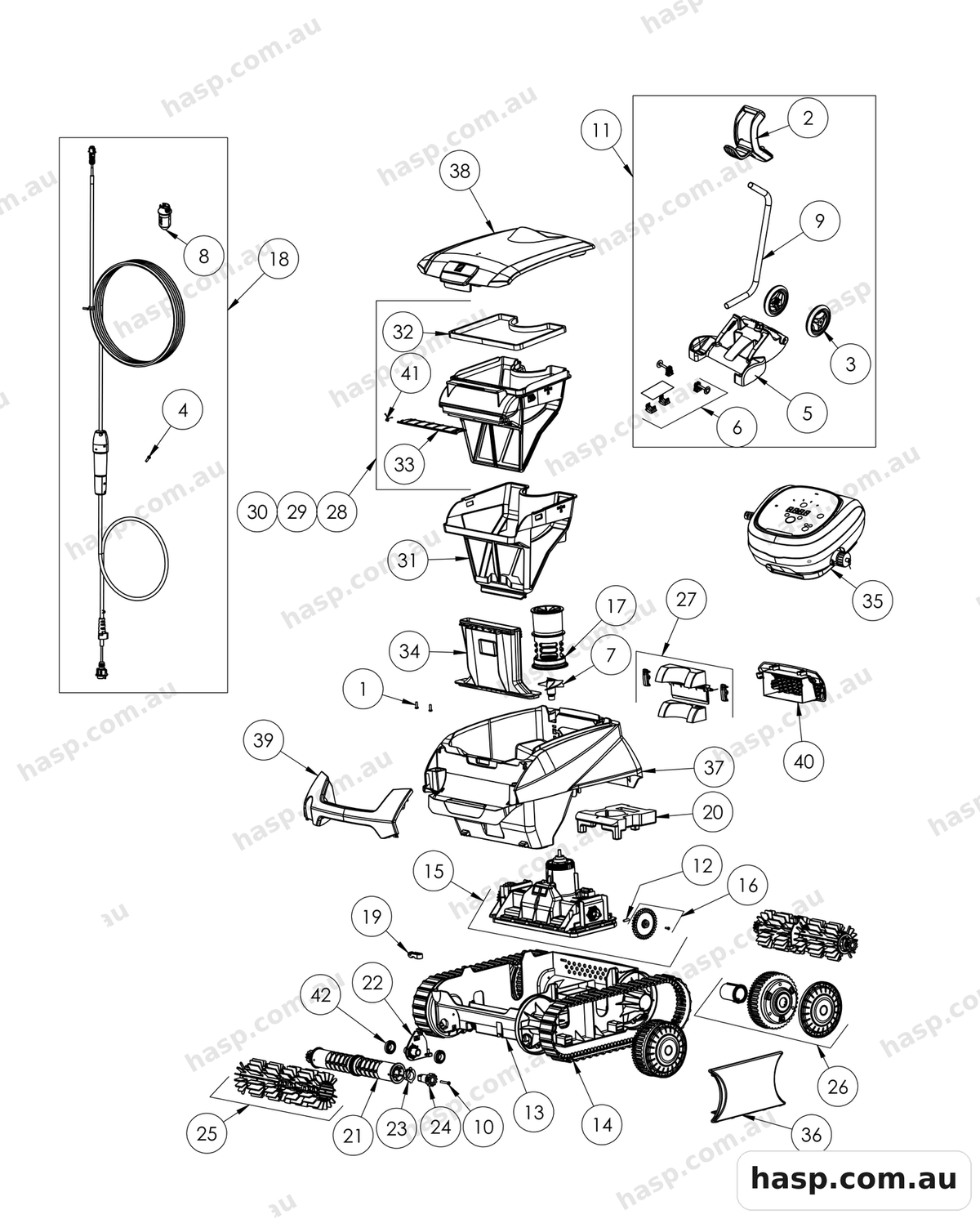

Tap the diagram to enlarge. Zodiac catalogue page 86.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Caddy Handle R0565000TROLLEY HANDLE
R0565000 Qty 1 $88.00
3
Zodiac Caddy Wheel R0565100TROLLEY WHEELS (*2)
R0565100 Qty 1 $56.00
4
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16MM (set of 5)
R0608500 Qty 1 $4.00
5
Zodiac Complete Lower Part Trolley C. R0632800COMPLETE LOWER PART TROLLEY CYCLONX
R0632800 Qty 1 $104.00
6
Zodiac Trolley C Accessories CX35 R0632900TROLLEY CYCLONX ACCESSORIES
R0632900 Qty 1 $36.00
7
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER CYCLONX
R0633200 Qty 1 $5.00
8
Zodiac Connector 3PTS Body R0634100CONNECTOR 3PTS BODY
R0634100 Qty 1 $7.00
9
Zodiac Trolley Tube C. R0634400TROLLEY TUBE CYCLONX
R0634400 Qty 1 $64.00
10
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
11
Zodiac Complete Trolley C R0639500TROLLEY KIT C
R0639500 Qty 1 $328.00
12
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5)
R0657900 Qty 1 $9.00
14
Zodiac Track / Belt CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895200TRACK CN (*2)
R0895200 Qty 1 $72.00
15
Zodiac Motor Block Kit CN LED R0895500MOTOR BLOCK KIT CN, LED
R0895500 Qty 1 $548.00
16
Zodiac Drive Gear Kit CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895600DRIVE GEAR KIT (*2)
R0895600 Qty 1 $8.00
17
Zodiac Flow Outlet CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895700FLOW OUTLET CN
R0895700 Qty 1 $36.00
18
Zodiac Swivel Floating Cable Kit 15M R0896000SWIVEL FLOATING CABLE KIT 15M
R0896000 Qty 1 $430.00
19
Zodiac Cable Strain Relief CN R0896200CABLE STRAIN RELIEF CN
R0896200 Qty 1 $5.00
20
Zodiac Chassis Float CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896300CHASSIS FLOAT CN
R0896300 Qty 1 $10.00
21
Zodiac Brush Roller CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896400BRUSH ROLLER CN (*2)
R0896400 Qty 1 $15.00
22
Zodiac Roller Support / Intermediate Plate CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896500ROLLER SUPPORT CN
R0896500 Qty 1 $6.00
23
Zodiac Outer Bearing CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896600OUTER BEARING CN, (*2)
R0896600 Qty 1 $7.00
24
Zodiac 12 Point Gear CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R089670012 POINT GEAR, CN (*2)
R0896700 Qty 1 $7.00
25
Zodiac Brush Scrubber CN Grey (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896900BRUSH SCRUBBER CN GREY (*2)
R0896900 Qty 1 $30.00
26
Zodiac Wheel CN Black - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897300WHEEL CN, BLACK
R0897300 Qty 1 $27.00
27
Zodiac Rear Flap Door Kit CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897400REAR FLAP DOOR KIT CN
R0897400 Qty 1 $19.00
29
Zodiac 150 Micron Dual Canister Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0897600
R0897600 Qty 1 $127.00
31
Zodiac 60 Micron Dual Canister Over Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0898100
R0898100 Qty 1 $127.00
32
Zodiac Filter Canister Seal CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898300CANISTER SEAL CN
R0898300 Qty 1 $27.00
33
Zodiac Filter Canister Inlet Flap CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898400CANISTER INLET FLAP CN
R0898400 Qty 1 $7.00
35
Zodiac Control Box CN Type 2 Aus Apl R0899700CONTROL BOX CN TYPE 2 AUS
R0899700 Qty 1 $553.00
36
Zodiac Short Flange CN Black (Set of 2) - FreeRider FR1000/FR2000 iQ - R0902400SHORT FLANGE CN BLACK (*2)
R0902400 Qty 1 $21.00
37
Zodiac Body Housing CN B (Navy Blue) - FreeRider FR1000/FR2000 iQ - R0902600BODY HOUSING CN B, NAVY BLUE
R0902600 Qty 1 $157.00
38
Zodiac Complete Top Cover CN (Smoke) - FreeRider FR1000 iQ / FR2000 iQ - R0902700COMPLETE COVER CN B, SMOKE Z
R0902700 Qty 1 $136.00
40
Zodiac Rear Grid CN B (Black) - FreeRider FR1000/FR2000 iQ - R0903400REAR GRID CN B, BLACK
R0903400 Qty 1 $14.00
41
Zodiac Canister Inlet Flap Spring CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0905500CANISTER INLET FLAP SPRING CN
R0905500 Qty 1 $6.00
42
Zodiac Ball Bearing W79034BALL BEARING
W79034 Qty 1 $6.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
