Zodiac CX40 Spare Parts

  • CX40
Zodiac CX40 Spare Parts

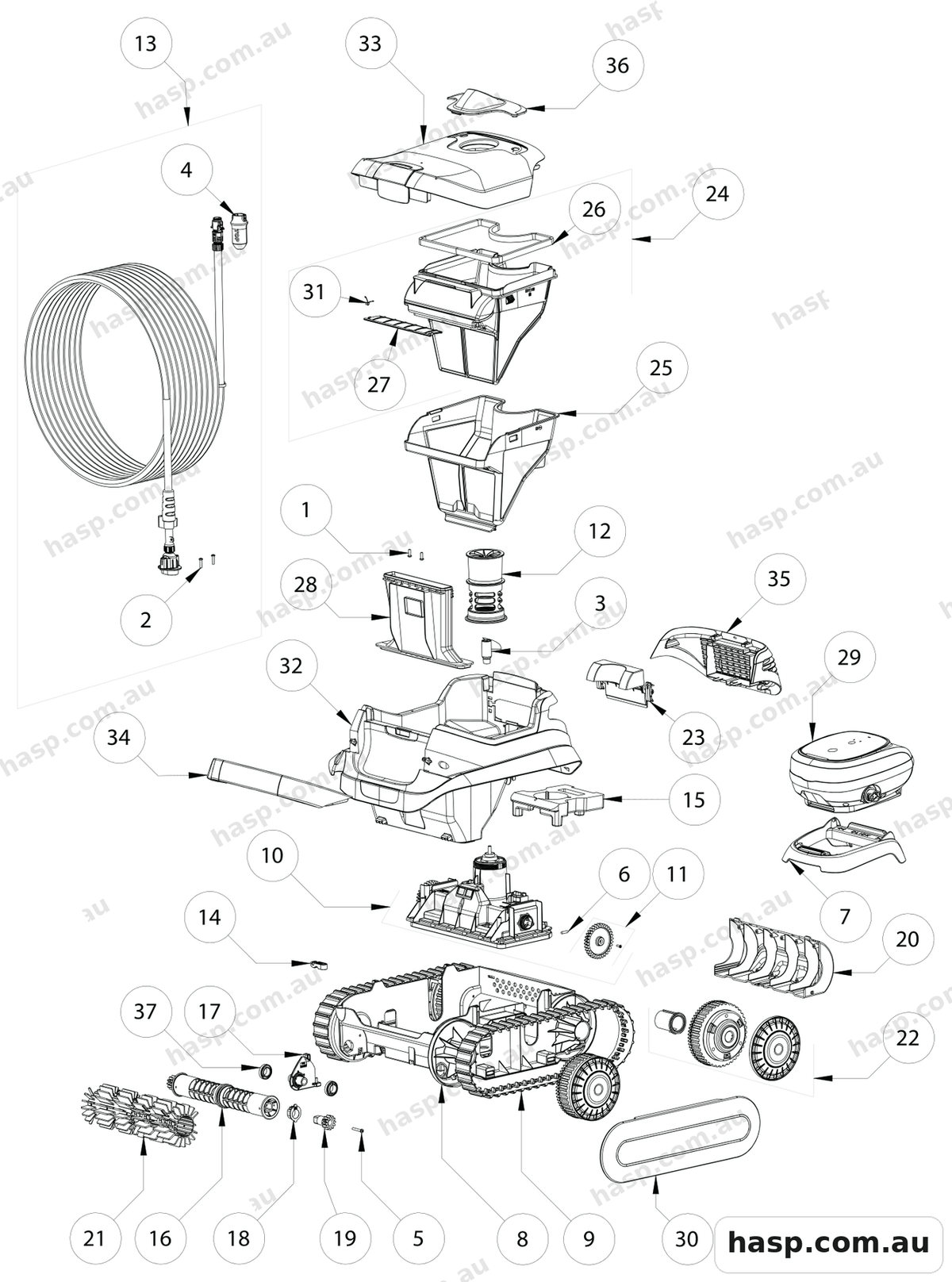

Tap the diagram to enlarge. Zodiac catalogue page 94.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 MM (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16MM (set of 5)
R0608500 Qty 1 $4.00
3
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER C
R0633200 Qty 1 $5.00
4
Zodiac Connector 3PTS Body R0634100CONNECTOR 3PTS BODY
R0634100 Qty 1 $7.00
5
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25 MM (SET OF 5)
R0638900 Qty 1 $4.00
6
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900MOTOR BLOCK SHAFT PIN Ø4 (SET OF 5)
R0657900 Qty 1 $9.00
7
Zodiac Control Unit Base R0662600CONTROL UNIT BASE
R0662600 Qty 1 $14.00
9
Zodiac Track / Belt CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895200TRACK CN X2
R0895200 Qty 1 $72.00
10
Zodiac Motor Block CN Without LED R0895400MOTOR BLOCK CN W/O LED CN
R0895400 Qty 1 $522.00
11
Zodiac Drive Gear Kit CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895600GEAR MOTOR CN X2 KIT
R0895600 Qty 1 $8.00
12
Zodiac Flow Outlet CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0895700FLOW OUTLET CN
R0895700 Qty 1 $36.00
14
Zodiac Cable Strain Relief CN R0896200CABLE HOLDER CN
R0896200 Qty 1 $5.00
15
Zodiac Chassis Float CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896300FLOAT PUMP CN
R0896300 Qty 1 $10.00
16
Zodiac Brush Roller CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896400BRUSH ROLLER CN X2
R0896400 Qty 1 $15.00
17
Zodiac Roller Support / Intermediate Plate CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896500INTERMEDIATE PLATE CN
R0896500 Qty 1 $6.00
18
Zodiac Outer Bearing CN (Set of 2) - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896600OUTER BEARING CN *2
R0896600 Qty 1 $7.00
19
Zodiac 12 Point Gear CN (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896700GEAR BRUSH CN *2
R0896700 Qty 1 $7.00
20
Zodiac Brush Cover Cnext R0896800BRUSH COVER CN
R0896800 Qty 1 $15.00
21
Zodiac Brush Scrubber CN Grey (Set of 2) - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0896900BRUSH LIGHT GREY CN X2 ZODIAC
R0896900 Qty 1 $30.00
22
Zodiac Wheel CN Black - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897300WHEEL BLACK CN KIT
R0897300 Qty 4 $27.00
23
Zodiac Rear Flap Door Kit CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0897400REAR FLAP KIT
R0897400 Qty 1 $19.00
24
Zodiac 150 Micron Dual Canister Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0897600FILTER COARSE 150 CN KIT
R0897600 Qty 1 $127.00
25
Zodiac 60 Micron Dual Canister Over Filter CN - Freerider FR2000/FR1000, Duo-X DX4050 iQ/DX4000/DX3000, CX40/CX50, Astralpool QB800/QB600 - R0898100FILTER FINE 60 CN
R0898100 Qty 1 $127.00
26
Zodiac Filter Canister Seal CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898300SEAL FILTER CN
R0898300 Qty 1 $27.00
27
Zodiac Filter Canister Inlet Flap CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0898400FLAP FILTER CN
R0898400 Qty 1 $7.00
29
Zodiac Control Box CNX CX40 CX50 R0900100CONTROL BOX CN TYPE 5 AUS
R0900100 Qty 1 $451.00
30
Astralpool Long Flange CN Black (qty 2 ) R0902200FLANGE LARGE BLACK CN *2
R0902200 Qty 1 $37.00
31
Zodiac Canister Inlet Flap Spring CN - FreeRider FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX40/CX50, Astralpool QB600/QB800 - R0905500SPRING FILTER CN
R0905500 Qty 1 $6.00
37
Zodiac Ball Bearing W79034MX8 BEARINGS, LARGE HOLE
W79034 Qty 2 $6.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
