Zodiac CX35 / CX35 TILE Spare Parts

  • CX35 / CX35 TILE
  • CX35
Zodiac CX35 / CX35 TILE Spare Parts

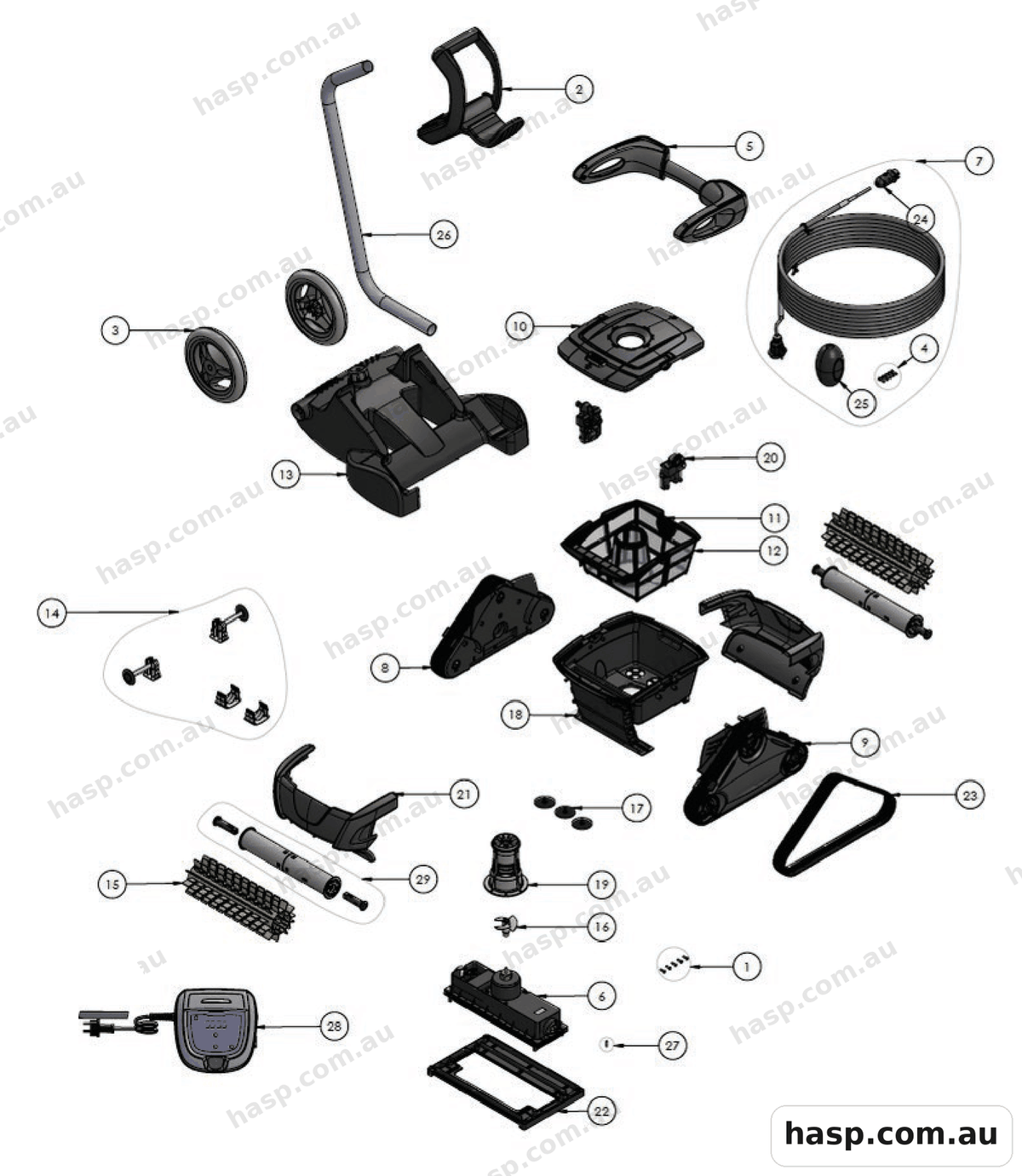

Tap the diagram to enlarge. Zodiac catalogue page 180.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW VP TCL POZI 4X12
R0516700 Qty 1 $4.00
2
Zodiac Caddy Handle R0565000CADDY HANDLE
R0565000 Qty 1 $88.00
3
Zodiac Caddy Wheel R0565100CADDY WHEEL (SET OF 2)
R0565100 Qty 1 $56.00
4
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW VP TCL POZI 4X16
R0608500 Qty 1 $4.00
5
Zodiac Complete Handle C Grey Z R0631904HANDLE COMPLETE GREY
R0631904 Qty 1 $70.00
6
Zodiac Complete Motor Block CX R0632000MOTOR BLOCK COMPLETE
R0632000 Qty 1 $642.00
7
Zodiac Complete Float CBL 18M CX35 R0632101COMPLETE FLOATING CABLE 18M
R0632101 Qty 1 $316.00
8
Zodiac CX20 Gear Box Grey No Track R0632203FREE TRACK GEAR BOX ASSEMBLY COMPLETE GREY
R0632203 Qty 1 $86.00
9
Zodiac Complete Gear Box C Grey R0632303COMPLETE GEAR BOX ASSEMBLY GREY
R0632303 Qty 1 $112.00
10
Zodiac Complete Cover C R0632404COVER ASSEMBLY
R0632404 Qty 1 $112.00
11
Zodiac Filter Complete 100 MPP R0632600FILTER COMPLETE 100 CYCLONX
R0632600 Qty 1 $127.00
12
Zodiac Complete Filter 200 CX20 R0632601FILTER COMPLETE 200 CYCLONX
R0632601 Qty 1 $127.00
13
Zodiac Complete Lower Part Trolley C. R0632800COMPLETE LOWER PART TROLLEY
R0632800 Qty 1 $104.00
14
Zodiac Trolley C Accessories CX35 R0632900TROLLEY C ACCESSORIES
R0632900 Qty 1 $36.00
15
Zodiac Brush Scrubber C PMS 108 Z R0633104BRUSH SCRUBBE
R0633104 Qty 1 $71.00
16
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER
R0633200 Qty 1 $5.00
17
Zodiac Exhaust Valve C Set Of 3 R0633300EXHAUST VALVE
R0633300 Qty 1 $8.00
18
Zodiac Bowl C R0633400BOWL
R0633400 Qty 1 $229.00
23
Zodiac Track C Z Set Of 2 1 R0633900TRACK CX20 (set of 2) HALF BODY CONNECTOR 3PTS TOP x 1 + HALF BODY CONNECTOR 3PTS
R0633900 Qty 1 $39.00
24
Zodiac Connector 3PTS Body R0634100BOTTOM x1
R0634100 Qty 1 $7.00
25
Zodiac Cable Float C Z R0634200CABLE FLOAT CX20
R0634200 Qty 1 $19.00
26
Zodiac Trolley Tube C. R0634400TROLLEY TUBE
R0634400 Qty 1 $64.00
27
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900PIN 4X16 STAINLESS STEEL A4
R0657900 Qty 1 $9.00
28
Zodiac Control Unit Type 1 CX35 R0736200CONTROL UNIT
R0736200 Qty 1 $559.00
29
Zodiac Brush Roller Key C 2 R0722400BRUSH ROLLER + KEYS
R0722400 Qty 1 $32.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
