Zodiac CX20 / CX20 TILE Spare Parts

  • CX20 / CX20 TILE
  • CX20
Zodiac CX20 / CX20 TILE Spare Parts

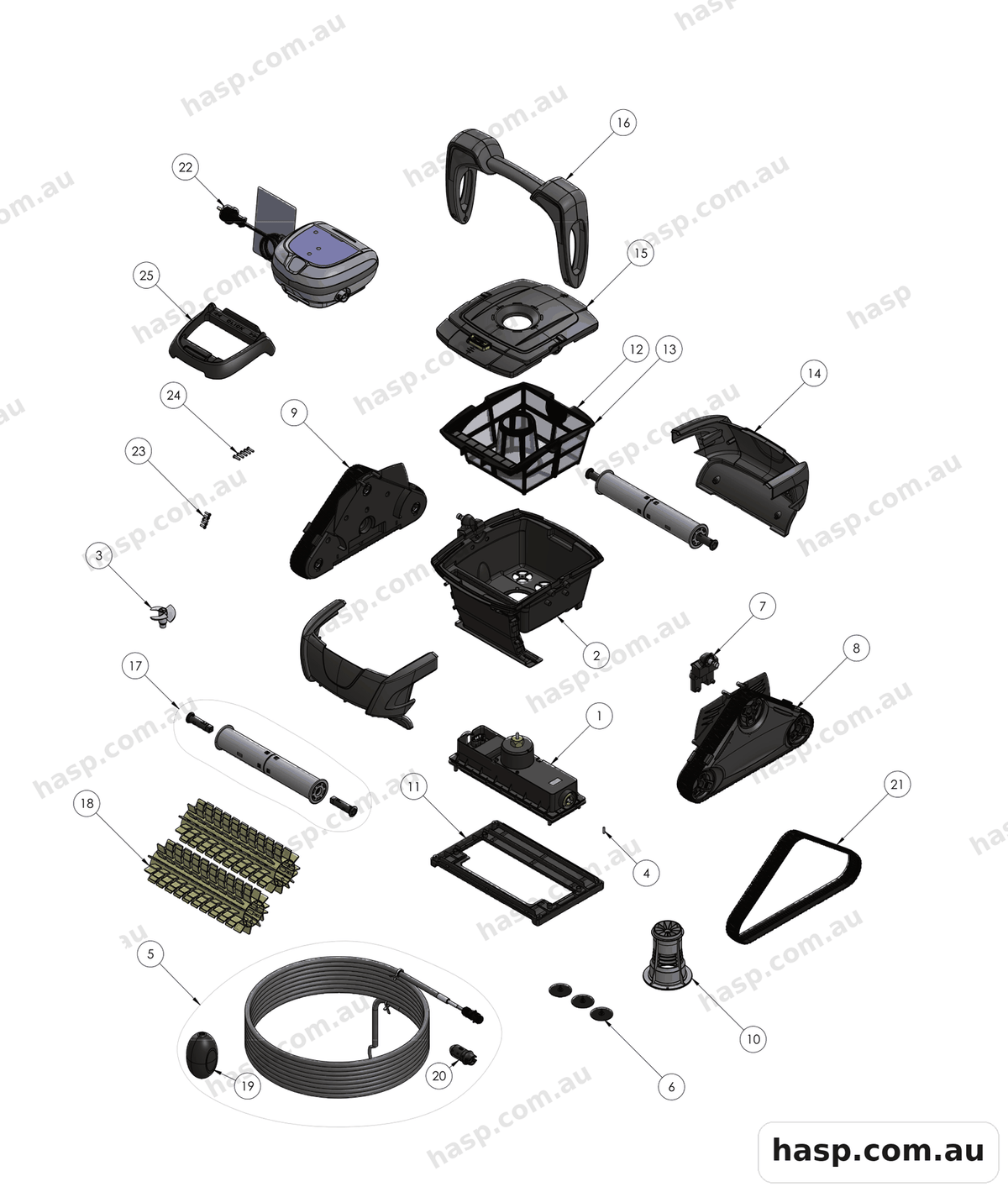

Tap the diagram to enlarge. Zodiac catalogue page 182.
1
Zodiac Complete Motor Block CX R0632000MOTOR BLOCK COMPLETE
R0632000 Qty 1 $642.00
2
Zodiac Bowl C R0633400BOWL C
R0633400 Qty 1 $229.00
3
Zodiac Impeller CyclonX - FreeRider FR500/FR800/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, CX20/CX35/CX40/CX50, Astralpool QB600/QB800 - R0633200IMPELLER C
R0633200 Qty 1 $5.00
4
Zodiac Motor Block Shaft Pin Ø4 (Set of 5) - FreeRider FR200/FR1000/FR2000 iQ, Duo-X DX3000/DX4000/DX4050 iQ, Tornax TX20/TX30/TX35, OT15, FX18, CX20/CX35/CX40/CX50, Astralpool QB600/QB800, QG50 - R0657900PIN 4X16 STAINLESS STEEL A4
R0657900 Qty 1 $9.00
5
Zodiac Complete Floating Cable 15M R0632100FLOATING CABLE ASSEMBLY 15M
R0632100 Qty 1 $285.00
6
Zodiac Exhaust Valve C Set Of 3 R0633300EXHAUST VALVE C
R0633300 Qty 1 $8.00
8
Zodiac Complete Gear Box C Grey R0632303COMPLETE GEAR BOX ASSEMBLY GREY C
R0632303 Qty 1 $112.00
9
Zodiac CX20 Gear Box Grey No Track R0632203FREE TRACK GEAR BOX ASSEMBLY COMPLETE GREY
R0632203 Qty 1 $86.00
12
Zodiac Filter Complete 100 MPP R0632600FILTER COMPLETE 100 CYCLONX
R0632600 Qty 1 $127.00
13
Zodiac Complete Filter 200 CX20 R0632601FILTER COMPLETE 200 CYCLONX
R0632601 Qty 1 $127.00
15
Zodiac Complete Cover C R0632404COVER ASSEMBLY C A-4
R0632404 Qty 1 $112.00
16
Zodiac Complete Handle C Grey Z R0631904HANDLE COMPLETE GREY
R0631904 Qty 1 $70.00
17
Zodiac Brush Roller Key C 2 R0722400BRUSH ROLLER + KEYS C
R0722400 Qty 1 $32.00
18
Zodiac Brush Scrubber C PMS 108 Z R0633104BRUSH SCRUBBER MPP PMS108
R0633104 Qty 1 $71.00
19
Zodiac Cable Float C Z R0634200CABLE FLOAT CX20 HALF BODY CONNECTOR 3PTS TOP x 1 + HALF BODY CONNECTOR 3PTS
R0634200 Qty 1 $19.00
-
Zodiac Connector 3PTS Body R0634100BOTTOM x1
R0634100 Qty 1 $7.00
22
Zodiac Track C Z Set Of 2 1 R0633900TRACK CX20 (SET OF 2)
R0633900 Qty 1 $39.00
23
Zodiac Control Box CX20 R0673900CONTROL BOX CX20
R0673900 Qty 1 $330.00
24
Zodiac Screw 4-12 Set Of 5 R0516700SCREW VP TCL POZI 4X12 A4
R0516700 Qty 1 $4.00
25
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW VP TCL POZI 4X16 A4
R0608500 Qty 1 $4.00
26
Zodiac Control Unit Base R0662600CONTROL UNIT BASE
R0662600 Qty 1 $14.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
