Zodiac AX20 ACTIV Spare Parts

  • AX20 ACTIV
  • AX20
Zodiac AX20 ACTIV Spare Parts

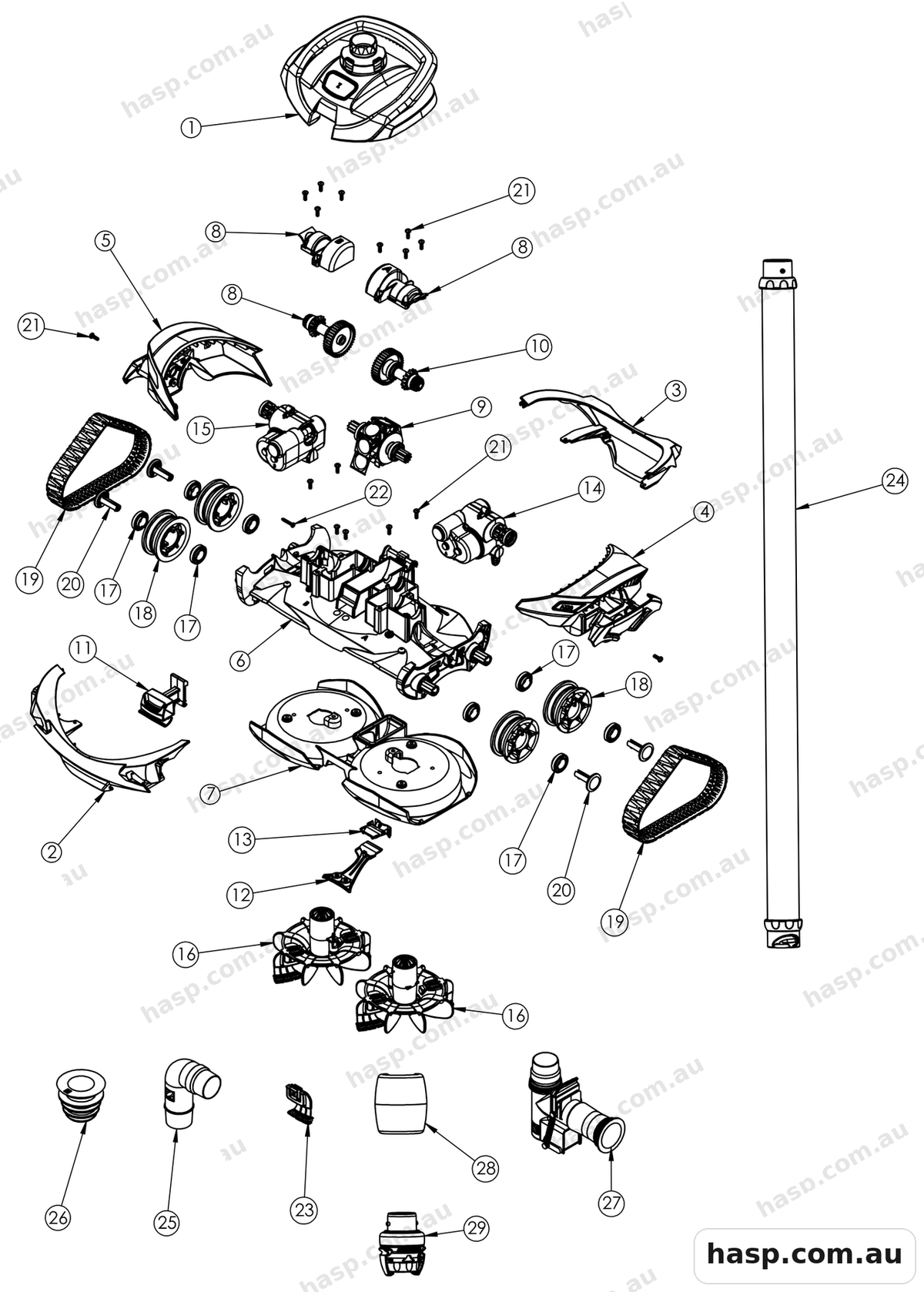

Tap the diagram to enlarge. Zodiac catalogue page 96.
1
Zodiac Body Top Swivel Assembly AX20 30093801BODY TOP SWIVEL ASSEMBLY AX20 ACTIV
30093801 Qty 1 $96.00
3
Zodiac Body Rear Panel AX20 Active A0428001BODY REAR PANEL AX20 ACTIV BODY LEFT SIDE PANEL W/TRACK GUARD AX20
A0428001 Qty 1 $17.00
4
Zodiac Body Left Panel With Track Guard 30138500ACTIV BODY RIGHT SIDE PANEL W/TRACK GUARD AX20
30138500 Qty 1 $56.00
5
Zodiac Body Right Panel With Track Guard 30138501ACTIV
30138501 Qty 1 $56.00
6
Zodiac Chassis Assembly AX20 Activ 30095300CHASSIS ASSEMBLY AX20 ACTIV
30095300 Qty 1 $84.00
7
Zodiac Body Tray AX20 Activ 30138600BODY TRAY AX20 ACTIV
30138600 Qty 1 $73.00
8
Astralpool Gear Housing Covers (a & B) 30138700GEAR HOUSING COVERS (A & B)
30138700 Qty 1 $24.00
9
Zodiac AX20 Activ & Astralpool S20 Engine Assembly - Flex Power Turbine - 30093601ENGINE ASSEMBLY
30093601 Qty 1 $53.00
10
Zodiac Drive Shaft Assembly (qty 1) 30094100DRIVE SHAFT ASSEMBLY
30094100 Qty 1 $16.00
11
Zodiac Body Latch Silver AX20 Activ A0450600BODY LATCH SILVER
A0450600 Qty 1 $4.00
12
Zodiac Inlet Assembly AX20 Activ 30102000INLET ASSEMBLY AX20
30102000 Qty 1 $6.00
13
Zodiac Inlet Reducer AX20 Activ A0450200INLET REDUCER AX20
A0450200 Qty 1 $3.00
14
Zodiac Direction Control Device Sidea V 30064101DIRECTION CONTROL DEVICE, V2, SIDE A
30064101 Qty 1 $79.00
15
Zodiac Direction Control Device Side B 30064201DIRECTION CONTROL DEVICE, V2, SIDE B
30064201 Qty 1 $79.00
16
Zodiac Cyclonic Scrubber Black Grey R0937500CYCLONIC SCRUBBER, BLACK GREY, KIT (2PK)
R0937500 Qty 1 $145.00
17
Zodiac Ball Bearings Wheels 8 Pack W7230223PKBALL BEARING WHEELS (8PK)
W7230223PK Qty 1 $95.00
18
Zodiac Wheel Suction Cleaner (qty 1) A0434400WHEEL SUCTION CLEANER (QTY 1)
A0434400 Qty 1 $7.00
19
Zodiac Track AX20 Activ (2 PK) A0434300PKTRACK MXNXT (Pack of 2)
A0434300PK Qty 1 $32.00
20
Zodiac Wheel Pin Silver (qty 1) A0203002WHEEL PIN SILVER (QTY 1) SCREW, M4 X 12MM, PHILLIPS #2PAN HEAD
A0203002 Qty 1 $2.00
22
Zodiac Screw Thread Forming 6-18 F0106600PHILLIPS #2 PAN HEAD, 5/PK
F0106600 Qty 1 $1.00
23
Zodiac Brush Scrubber MX Silver A0358802BRUSH SCRUBBER MX SILVER
A0358802 Qty 1 $6.00
24
Zodiac Hose Jumbo Global 30PK W26060GLOBAL HOSE, US, 1M, GRAY/BLUE (Pack of 30)
W26060 Qty 1 $742.00
25
Zodiac 90 Degree Flow Elbow A021970090 DEGREES FLOW ELBOW
A0219700 Qty 1 $15.00
26
Zodiac Cuff Weir Universal Eva W70263ADAPTOR, I/G WEIR CUFF (EVA) WHITE
W70263 Qty 1 $21.00
27
Zodiac Au Flow Valve 1PK W70281CAD FLOW VALVE
W70281C Qty 1 $65.00
28
Zodiac MX Hose Float A0173800HOSE FLOAT
A0173800 Qty 1 $15.00
29
Zodiac Flow Regulator Valve Ind FRV100FLOW REGULATOR VALVE (FRV)
FRV100 Qty 1 $39.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
