AstralPool VIRON QT1000 Spare Parts

  • VIRON QT1000
  • QT1000
AstralPool VIRON QT1000 Spare Parts

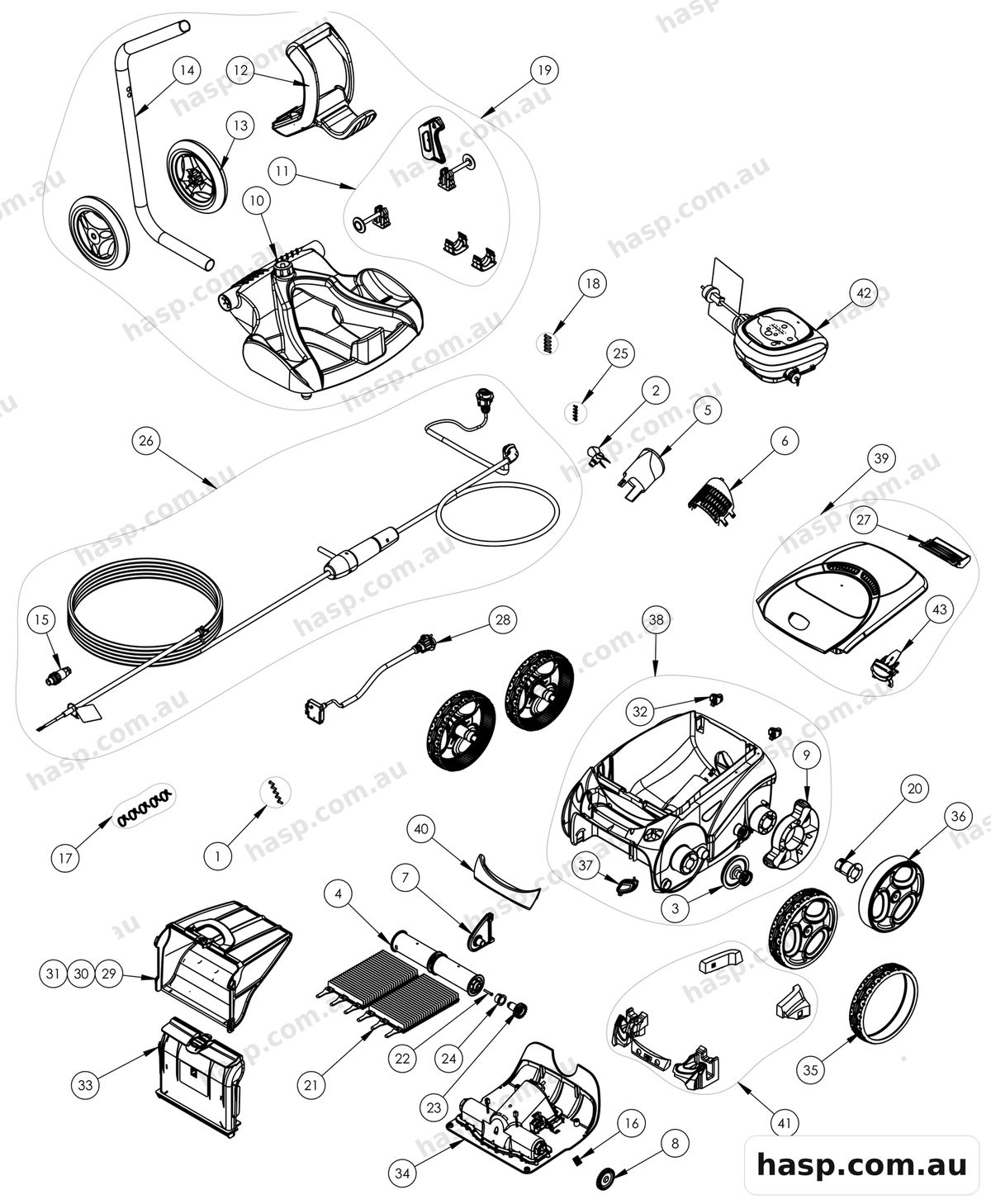

Tap the diagram to enlarge. AstralPool catalogue page 222.
1
Zodiac Screw 4-12 Set Of 5 R0516700SCREW 4*12 (SET OF 5)
R0516700 Qty 1 $4.00
2
Zodiac Propeller Zodiac R0517000PROPELLER
R0517000 Qty 1 $13.00
3
Zodiac Transmission Kit R0517200TRANSMISSION KIT
R0517200 Qty 1 $21.00
4
Zodiac Brush Roller Vortex Set Of 2 R0517400BRUSH ROLLER (SET OF 2)
R0517400 Qty 1 $49.00
5
Zodiac Flow Outlet Kit R0517500FLOW OUTLET KIT
R0517500 Qty 1 $17.00
6
Zodiac Motor Screen R0517600MOTOR SCREEN
R0517600 Qty 1 $11.00
9
Zodiac Wheel Cover R0540300WHEEL COVER
R0540300 Qty 1 $16.00
10
Zodiac Cady Base For Vortex R0564800CADDY BASE
R0564800 Qty 1 $104.00
11
Zodiac Caddy Accessories R0564900CADDY ACCESSORIES KIT
R0564900 Qty 1 $38.00
12
Zodiac Caddy Handle R0565000CADDY HANDLE
R0565000 Qty 1 $88.00
13
Zodiac Caddy Wheel R0565100CADDY WHEEL (SET OF 2)
R0565100 Qty 1 $56.00
14
Zodiac Caddy Tube R0565200CADDY TUBE KIT
R0565200 Qty 1 $67.00
15
Zodiac Floating Cable Plug R0565600FLOATING CABLE PLUG
R0565600 Qty 1 $59.00
16
Zodiac Motor Block Shaft Pin 5PK R0567800MOTOR BLOCK SHAFT PIN (SET OF 5)
R0567800 Qty 1 $8.00
17
Zodiac Floating Cable Clamp 5PK R0567900FLOATING CABLE CLAMP (SET OF 5)
R0567900 Qty 1 $8.00
18
Zodiac Screw 4 16mm Set Of 5 R0608500SCREW 4*16 MM A4 (*5)
R0608500 Qty 1 $4.00
19
Zodiac Vortex Trolley Complete R0609100TROLLEY KIT V
R0609100 Qty 1 $344.00
20
Zodiac Bearing Wheel Vortex R0636700WHEEL BUSHING
R0636700 Qty 1 $9.00
22
Zodiac Screw 4-25mm Set Of 5 R0638900SCREW 4*25MM (SET OF 5)
R0638900 Qty 1 $4.00
23
Zodiac 17 Teeth Gear Pack Of 2 R063900017 GEAR (*2)
R0639000 Qty 1 $7.00
24
Zodiac Bearing Outer Bearing 2 R0639100OUTER BEARING (*2)
R0639100 Qty 1 $8.00
25
Zodiac Screw 2.9 9.5mm Set Of 5 R0639200SCREW 2.9*9.5MM (SET OF 5)
R0639200 Qty 1 $4.00
26
Zodiac 18M Swivel Cable Rkit R0726600CSWIVEL FLOATING CABLE KIT 18M
R0726600C Qty 1 $465.00
27
Zodiac Rear Float / Back Cover Assembly Bypass - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0863200REAR FLOAT ASSEMBLY
R0863200 Qty 1 $25.00
28
Zodiac Sensor Block Assembly - EvoLux EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0863300SENSOR BLOCK ASSEMBLY
R0863300 Qty 1 $348.00
29
Zodiac Evolux iQ, EX400, EX5000, EX6000 iQ, vIRON QT1000 Ultra Fine Filter 60 Micron - R0863500ULTRA FINE FILTER 60µ
R0863500 Qty 1 $127.00
30
Zodiac Fine Filter 100 Micron R0863600FINE FILTER 100µ
R0863600 Qty 1 $127.00
31
Zodiac Large Filter 200 Micron R0863700LARGE FILTER 200µ
R0863700 Qty 1 $127.00
32
Zodiac Roller Brush VR (Set of 2) - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0864900ROLLER, 2PK
R0864900 Qty 1 $49.00
33
Zodiac Filter Canister Support VR R0865100FILTER CANISTER INLET HOUSING
R0865100 Qty 1 $48.00
34
Zodiac Motor Block VR Type 2 - EvoLux EX4000/EX5000/EX5050/EX6000/EX6050 iQ, Viron QT1000/QT1050 - R0865400MOTOR BLOCK TYPE 2
R0865400 Qty 1 $569.00
35
Zodiac Tyre Black R7021 R0865500TIRE, BLACK R7021
R0865500 Qty 1 $54.00
36
Zodiac Wheel Black R0866800WHEEL, BLACK
R0866800 Qty 1 $32.00
39
Zodiac Complete Cover Bypass VR White R0869600COMPLETE COVER BYPASS VR O WHITE ASTRAL
R0869600 Qty 1 $217.00
42
Zodiac Control Box VR Type 5 QT1000 R0891000CONTROL BOX VR TYPE 5 QT1000
R0891000 Qty 1 $397.00
43
Zodiac Cover Latch VR O Astral R0891100COVER LATCH VR O ASTRAL
R0891100 Qty 1 $17.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
