AstralPool VIRON QL420 & QL 540 CARTRIDGE FILTER Spare Parts

  • VIRON QL420 & QL 540 CARTRIDGE FILTER
  • QL420
  • QL 540
AstralPool VIRON QL420 & QL 540 CARTRIDGE FILTER Spare Parts

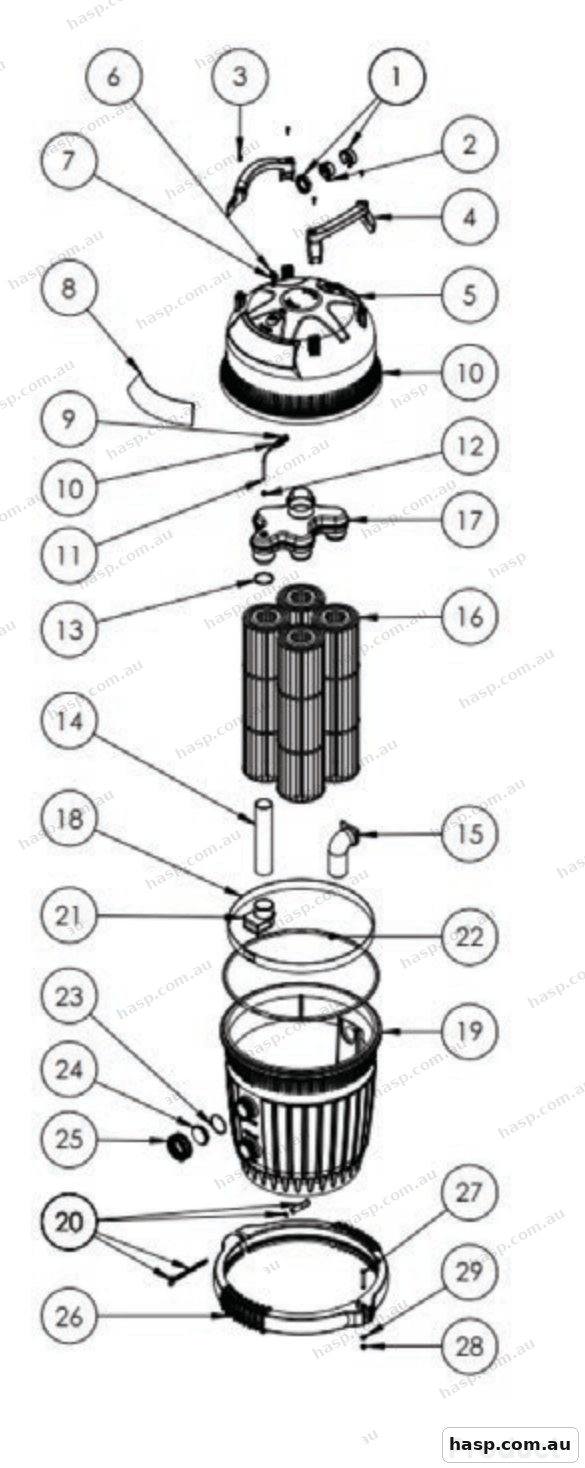

Tap the diagram to enlarge. AstralPool catalogue page 91.
1
Astralpool Cover AP Pressure Gauge 75039PRESSURE GAUGE COVER
75039 Qty 1 $15.00
2
Universal Pressure Gauge for Pool & Spa Filters - 1/4" BSP (13mm thread)PRESSURE GAUGE
75032 Qty 1 $23.00
3
Astralpool / Zodiac Screw 10G X 3/4 Pan Head 40218HANDLE SCREW
40218 Qty 4 $2.00
4
Astralpool / Zodiac Handle Lid CL Filter 76047HANDLE
76047 Qty 2 $58.00
Enquire
5
Astralpool / Zodiac Lid QL Ufhandles Cart Filter 76301TOP BODY HALF
76301 Qty 1 $331.00
7
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 1 $4.00
9
Astralpool / Zodiac Air Bleed 1/4 Plastic Silenc 78092AIR BLEED part of 76362
78092 Qty 1 $33.00
10
Astralpool / Zodiac Connector Air Bleed Push In 78091AIR BLEED CONNECTOR part of 76362
78091 Qty 1 $30.00
11
Astralpool / Zodiac Air Bleed Tubing Flexible N 78090AIR BLEED TUBE part of 76362
78090 Qty 1 $13.00
12
Astralpool / Zodiac Viron Solar Grommet 44774RUBBER CROMMET part of 76362
44774 Qty 1 $2.00
13
Astralpool / Zodiac O-Ring QL & Uf Top Manifold 76320O-RING part of 76362
76320 Qty 1 $6.00
14
Astralpool / Zodiac Pipe Quad Top Manifold 16041-2952” PIPE
16041-295 Qty 1 $5.00
15
Astralpool / Zodiac Return M Fold QL Uf Cart Filter 76319INLET MANIFOLD
76319 Qty 1 $6.00
16
Astralpool / Zodiac Element 105 SQM Filter QL420 SP78079FILTER ELEMENTS FOR QL420
SP78079 Qty 4 $174.00
16
Astralpool / Zodiac Element 135 SQM QL 540 Filter SP78082FILTER ELEMENTS FOR QL540
SP78082 Qty 4 $210.00
17
Astralpool / Zodiac M-Fold Uf-De - Com-Grey-BleedMANIFOLD UF/DE -COMPLETE-GREY with BLEED
76362 Qty 1 $130.00
19
Astralpool / Zodiac Base Body QL Uf Cart Filter 76300BODY BOTTOM HALF
76300 Qty 1 $546.00
20
Astralpool / Zodiac Bolt Clamp Assembly QL Uf Fi 76325CLAMP BOLT ASSEMBLY
76325 Qty 1 $36.00
21
Astralpool / Zodiac Tube Adaptor QC Cart Filter 1114020OUTLET MANIFOLD
1114020 Qty 1 $12.00
22
Astralpool / Zodiac O Ring - Main Body Ql & Uf CBODY O-RING
76316 Qty 1 $127.00
23
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING
70003 Qty 3 $6.90
24
Astralpool / Zodiac Component Bag 50mm Blanking Cap SP76322BLANKING CAP
76322 Qty 1 $15.00
25
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT
950919 Qty 3 $31.00
26
Astralpool / Zodiac Clamp Band QL Uf Filter 76306CLAMP
76306 Qty 1 $610.00
27
Astralpool / Zodiac Pin Brass QL Uf Clamp Piv Pin 76309CLAMP PIVOT PIN
76309 Qty 1 $12.00
28
Astralpool / Zodiac E Clip 8/Stainless Steel 76350CLAMP PIVOT PIN CLIP
76350 Qty 1 $3.00
NOT SHOWN
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - Combo2” GLUE IN PIPE UNION
950920 Qty 1 $25.00
NOT SHOWN
Astralpool / Zodiac Component Bag QL Filter PVC 78386PIPE FITTING COMPONENT BAG
78386 Qty 1 $163.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
