AstralPool VIRON P280 PUMP Spare Parts

VIRON P280 PUMP
P280

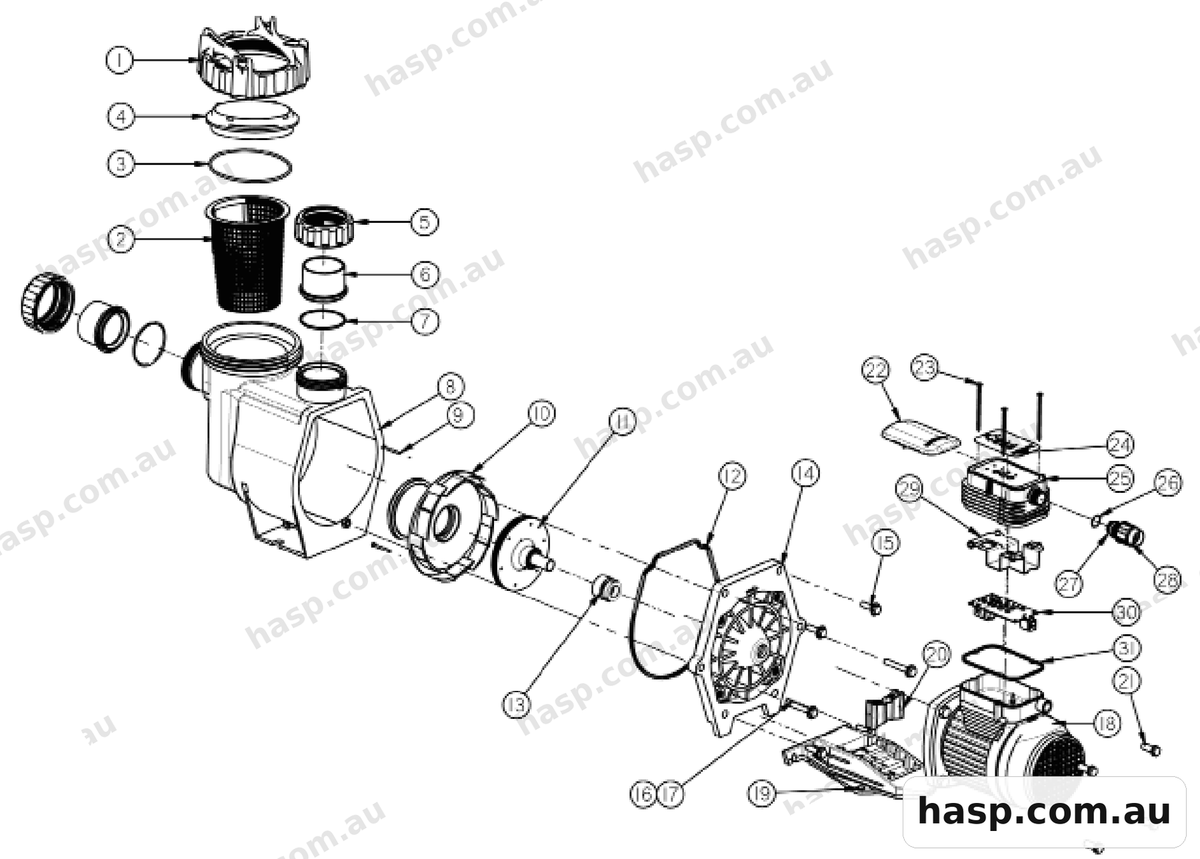

AstralPool VIRON P280 PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 162.

-

Astralpool / Zodiac Lid Assembly & O Ringbx P600 Pump SP400691, 2, 3, 4 PUMP LID -1/4 TURN CLAMP- TX/CTX

40069 Qty 1 $186.00

5

Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT UNION - 50MM

950919 Qty 2 $31.00

6

Astralpool / Zodiac Tail Union 50/40mm PVCTAIL UNION 50MM-40MM REDUCER

950918 Qty 2 $8.00

6

Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboTAIL UNION - 50MM ABS

950920 Qty 2 $25.00

7

Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO RING - 50MM UNION

70003 Qty 2 $6.90

8

Astralpool Volute (Wet End) & Basket - CTX Series 1 4007502VOLUTE - TX/CX/ E PUMP

4007502 Qty 1 $665.00

9

Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165BOLT - PAN HEAD 6g X 35 S/TAP S/STEEL

40165 Qty 2 $4.00

10

Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER - SMALL - BX/CTX/E/P300

40071A Qty 1 $12.00

11

Astralpool / Hurlcon Impeller P280 P320 eVo FX290 E290 CTX360 40060FIMPELLER MOULDED 11.5MM - SMALL

40060F Qty 1 $79.00

12

Astralpool Pump Body O-ring / Gasket - Various - See ListingSQUARE O RING (SEAL PLATE) EPDM

70004 Qty 1 $48.00

13

Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL - BX/TX/CX/E/CTX

PS3868 Qty 1 $28.00

14

Astralpool / Zodiac Seal Plate Ser 1 G Pearl 4009002SEAL PLATE - (BLACK) - P300

4009002 Qty 1 $224.00

15

Astralpool / Zodiac Bolt M8 X 30mm Ind Hex Sem 40150BOLT - M8 X 30 IND HEX SEMS S/STEEL

40150 Qty 4 $6.00

17

Astralpool / Zodiac Bolt M8 X 55mm Ind Hex Sem 40160BOLT - M8 X 55 IND HEX SEMS S/STEEL

40160 Qty 2 $8.00

19

Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT - BLACK

4005002 Qty 1 $43.00

20

Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056RUBBER INSERT - V2 - PUMP MOTOR

40056 Qty 1 $7.00

30

Astralpool PCB For BLDC P300 Pump 70501PCB - FOR BLDC P300 PUMP

70501 Qty 1 $206.00

-

Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)O RING - TAIL UNION 65MM - BX/FX/CT

78104 Qty 1 $8.00

-

Astralpool Pump Check Valve AssemblyCHECK VALVE ASSEMBLY-ALL CTX E SERIES PUMPS

598770 Qty 1 $24.00

31

Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT INSERT

40056 Qty 1 $7.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
