AstralPool VIRON INVERTER IHPS120 HEAT PUMP SIDE DISCHARGE Spare Parts

VIRON INVERTER IHPS120 HEAT PUMP SIDE DISCHARGE

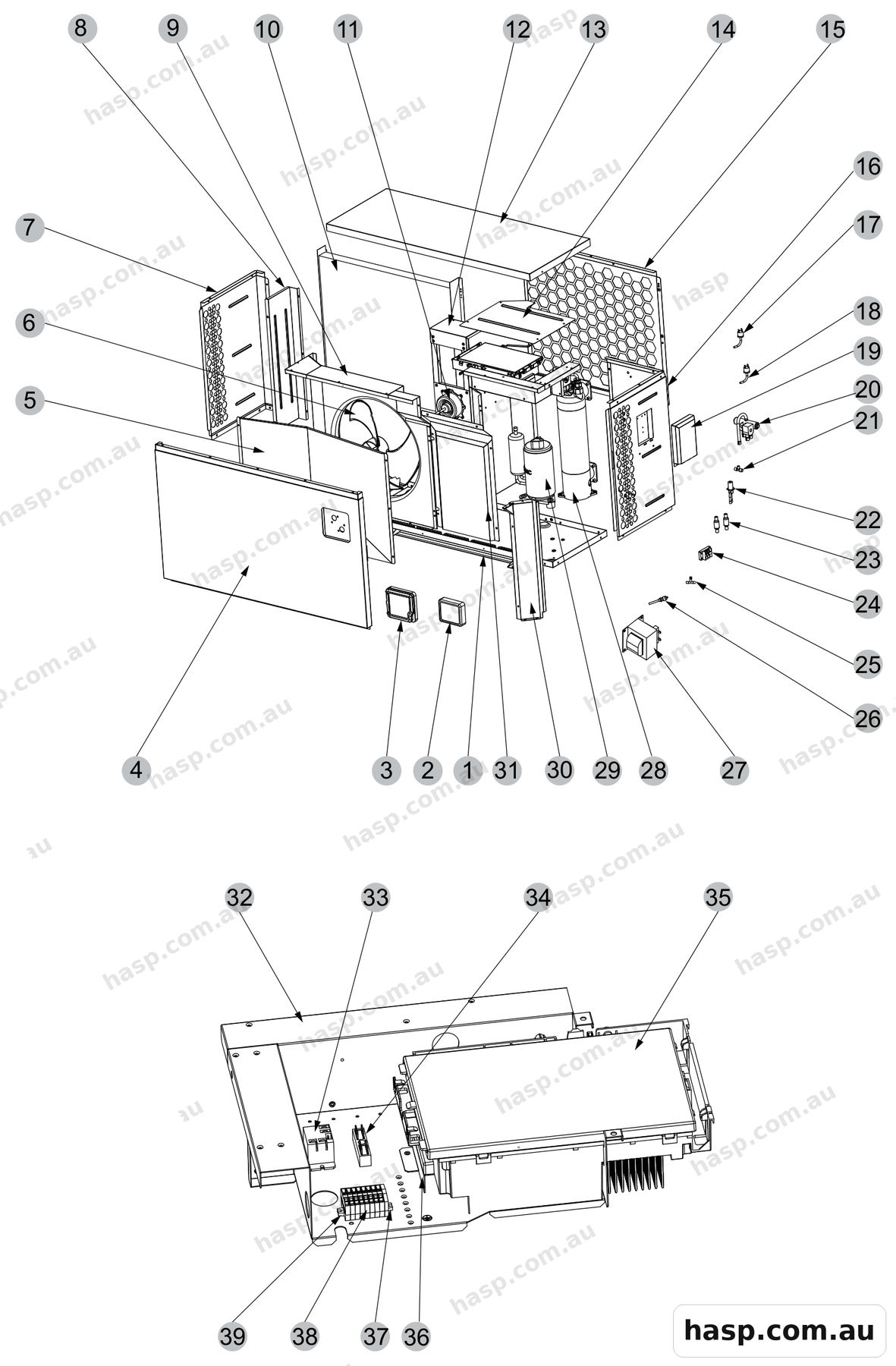

AstralPool VIRON INVERTER IHPS120 HEAT PUMP SIDE DISCHARGE Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 208.

5

Astralpool Wind Deflect Board WH00618-619 80718526AIR DEFLECTOR

80718526 Qty 1 $111.00

6

Astralpool Axial Fan Blades 301030-00000006FAN BLADE

301030-00000006 Qty 1 $37.00

8

Astralpool Support Plate WH000618-619 80718381RETAINING PLATE

80718381 Qty 1 $29.00

9

Astralpool Wind Deflect Assembly WH000618-619 80719342WIND DEFLECTOR ASSEMBLY

80719342 Qty 1 $146.00

10

Astralpool Fin Heat Exchanger WH000619 80602065FIN HEAT EXCHANGER

80602065 Qty 1 $1,065.00

11

Astralpool DC Motor 80200018DC FAN MOTOR

80200018 Qty 1 $327.00

12

Astralpool Motor Bracket Assembly WH000618-619 80718376FAN MOTOR BRACKET ASSEMBLY

80718376 Qty 1 $52.00

14

Astralpool E Box Cover WH000618-619 80722475TOP PANEL OF ELECTRICAL BOX

80722475 Qty 1 $29.00

17

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

18

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

20

Astralpool 4 Way Valve Assembly WH000618-20 20000-1404844 WAY VALVE ASSEMBLY

20000-140484 Qty 1 $73.00

24

Astralpool Wiring Terminal Block 2000-3928WIRING TERMINAL BLOCK

2000-3928 Qty 1 $8.00

26

Astralpool Needle Valve 20000-140150VALVE

20000-140150 Qty 1 $7.00

27

Astralpool Reactor For HP WH000618-19 82500020REACTOR

82500020 Qty 1 $43.00

28

Astralpool Titanium Heat Exchang WH000619 72300014TITANIUM HEAT EXCHANGER

72300014 Qty 1 $425.00

29

Astralpool Compressor Suit 78567-78572 20000-110448COMPRESSOR

20000-110448 Qty 1 $978.00

30

Astralpool Bracket Assembly For WH000618-619 80722468BRACKET ASSEMBLY

80722468 Qty 1 $29.00

31

Astralpool Support Plate WH000618-620 80722471RETAINING PLATE

80722471 Qty 1 $29.00

33

Astralpool Relay For Phnix H/Pumps 20000-360297RELAY

20000-360297 Qty 1 $19.00

36

Astralpool Bracket WH000618 WH000619 80708603BRACKET

80708603 Qty 1 $7.00

37

Astralpool / Zodiac Terminal For 78547 20000-390047TERMINAL BLOCK

20000-390047 Qty 2 $1,900.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
