AstralPool VIRON EVO GAS HEATER Spare Parts

  • VIRON EVO GAS HEATER
AstralPool VIRON EVO GAS HEATER Spare Parts

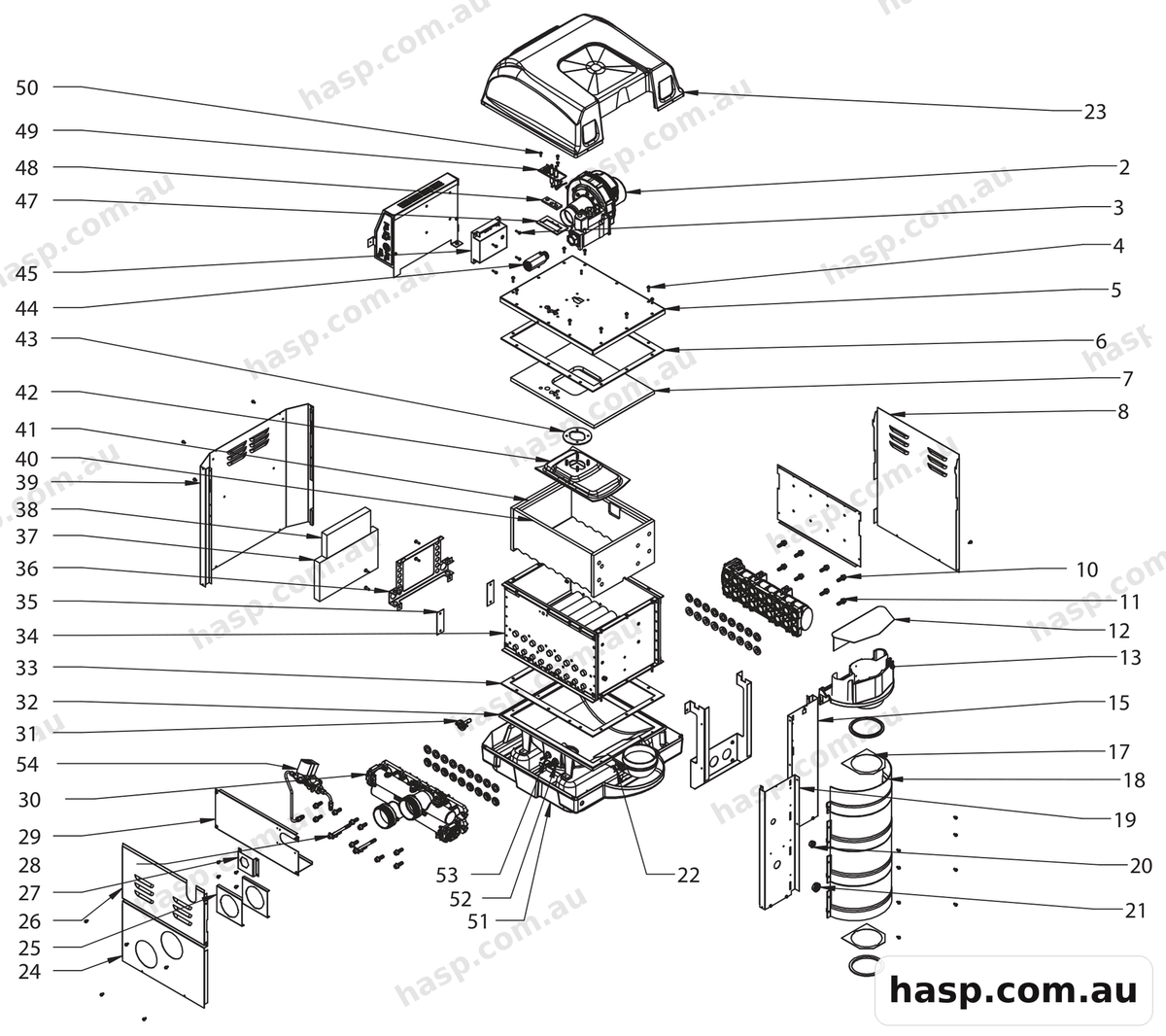

Tap the diagram to enlarge. AstralPool catalogue page 175.
1
Astralpool Viron Top Cover With VisorVIRON TOP COVER WITH VISOR
78615 Qty 1 $176.00
2
Astralpool Viron 250, ICI 200 Combustion Fan - RG130FAN - RG130 VIRON 250
78131 Qty 1 $901.00
2
Astralpool Viron, HiNRG, ICI Combustion Fan - RG148FAN - RG148 VIRON 350/450
78132 Qty 1 $1,002.00
10
Astralpool / Zodiac Bolt M8 X 42mm Hex Head Sems 78152BOLT-M8 X 42MM HEX HEAD SEMS ASS 19
78152 Qty 1 $3.00
18
Astralpool / Zodiac Flue Cover Viron Rear Small 14600019VIRON REAR FLUE COVER 250/350
14600019 Qty 1 $9.00
20
Astralpool / Zodiac Universal Bushing 19mm 77181UNIVERSAL BUSHING - 19MM
77181 Qty 1 $2.00
22
Astralpool Hi Limit 175C - Flue VironHI LIMIT 175DEG C -FLUE-VIRON HEATER
78169 Qty 1 $45.00
28
Astralpool / Zodiac Bolt M8 X 42mm Hex Head Sems 78152BOLT-M8 X 42MM HEX HEAD SEMS ASS 19
78152 Qty 1 $3.00
30
Astralpool / Cap-Header-Viron Evo-In/Out V2VIRON EVO HEADER CAP - IN/OUT VERSION 2
14600102 Qty 1 $31.00
-
Astralpool Viron eVo Gas Heater Manifold Headers - 2013 to CurrentVIRON EVO HEADER (V2) - COMPLETE
71047 Qty 1 $255.00
-
Astralpool Viron eVo Gas Heater Manifold Headers - 2013 to CurrentVIRON EVO INLET HEADER (V2) - COMPLETE
71048 Qty 1 $255.00
-
Astralpool Viron eVo Gas Heater Manifold Headers - 2013 to CurrentVIRON EVO RETURN HEADER (V2) COMPLETE
71049 Qty 1 $255.00
35
Astralpool / Zodiac Fibre Gasket Viron Front B 77233FIBRE GASKET - VIRON FRONT BRACKET
77233 Qty 1 $7.00
40
Astralpool / Zodiac Ins Viron Evo 250-350 Vert HS 78821INSULATION - VIRON - EVO 250/350 VERTICAL HSI
78821 Qty 1 $71.00
41
Astralpool / Zodiac Ins Viro EVO250-350 Front Rear 78823INSULATION - VIRON - EVO 250/350 FRONT & REAR
78823 Qty 1 $58.00
43
Astralpool / Zodiac Fibre Gasket Fan Burner Viro 78141FIBRE GASKET-FAN BURNER-VIRON 250-4
78141 Qty 1 $8.00
45
Astralpool Viron eVo / ICI HSI Ignition Module - Techrite Astralpool FluidraVIRON PILOT IGNITION PACK - R310.
SP79138 Qty 1 $346.00
47
Astralpool Ignitor Gasket Outer - DsiIGNITOR GASKET OUTER - DSI - VIRON/HINRG
78161 Qty 1 $32.00
48
Astralpool Igniter / Ignitor Flame Sensor Gasket - Inner - DSI Viron & HiNRG Gas Heaters - 78143IGNITOR GASKET - INNER - DSI VIRON
78143 Qty 1 $7.00
49
Astralpool Hurlcon Viron DSI Spark Igniter with Sight Glass - Obsolete (No Longer Available) 78134PREMIX IGNITOR WITH SIGHTGLASS-VIRO
78134 Qty 1 $2.00
Enquire
50
Astralpool / Zodiac Screw Panhead G304 M4 X 12 S 40164SCREW-PANHEAD G304 M4 X 12 S/STEEL
40164 Qty 1 $2.00
53
Astralpool Float Switch - VironFLOAT SWITCH - VIRON
78140 Qty 1 $322.00
54
Astralpool / Zodiac Gas System (dungs Whirlwind) 78137VIRON 250 GAS VALVE
78137 Qty 1 $727.00
NOT SHOWN
Astralpool Viron eVo Gas Heater PCB Thermostat - Post 2012PCB 250 VIRON USER
78166250 Qty 1 $1,039.00
NOT SHOWN
Astralpool Viron eVo Gas Heater PCB Thermostat - Post 2012PCB 350 VIRON USER
78166350 Qty 1 $1,039.00
NOT SHOWN
Astralpool Viron eVo Gas Heater PCB Thermostat - Post 2012PCB 450 VIRON USER
78166450 Qty 1 $1,039.00
NOT SHOWN
Astralpool 200° High Limit Switches - for F6 Error - Post-recall & B series Hurlcon Astralpool Gas HeatersFAN PLATE 200 HI LIMIT
SP79141 Qty 1 $67.00
NOT SHOWN
Astralpool 160c High Limit Overtemp Switch - ICI 200 / ICI 400 FlueFLUE PIPE 160 HI LIMIT
SP79140 Qty 1 $26.00
NOT SHOWN
Astralpool Loom ICI Viron High-Limit SP79142HILIMIT LOOM KIT 235/350
SP79142 Qty 1 $91.00
NOT SHOWN
Astralpool / Zodiac Loom Viron 450 High-Limit SP79143HILIMIT LOOM KIT 450
SP79143 Qty 1 $80.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
