AstralPool TOP DISCHARGE 24KW INVERTER HEAT PUMP Spare Parts

TOP DISCHARGE 24KW INVERTER HEAT PUMP

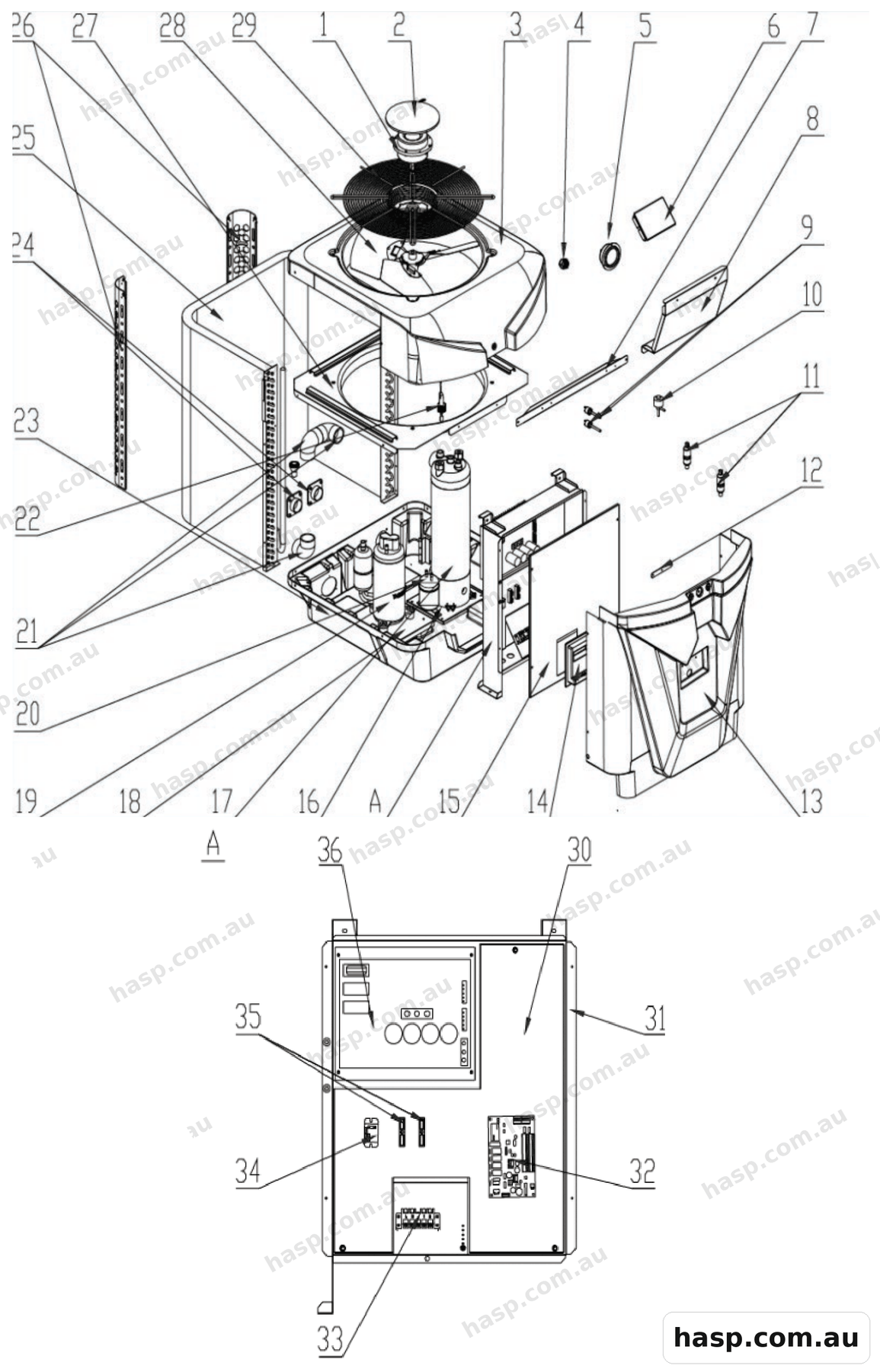

AstralPool TOP DISCHARGE 24KW INVERTER HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 194.

1

Astralpool / Zodiac Fan Motor Suit 20000-330381AXIAL FLOW FAN MOTOR

20000-330381 Qty 1 $874.00

5

Astralpool / Zodiac Pressure Gauge All Phnix Heatp 20000-280004PRESSURE GAUGE

20000-280004 Qty 1 $138.00

9

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

18

Astralpool Press Stents 32002-210073PRESS STENTS

32002-210073 Qty 1 $19.00

22

Universal Pool & Spa Flow Switch - Heat Pumps, Chlorinators, Dosing Systems, etc - 3/4"WATER FLOW SWITCH (MOULD)

20000-360005 Qty 1 $72.00

33

Astralpool 4 Bit Connection Seat 4000-3901FIVE SOCKET

4000-3901 Qty 1 $873.00

34

Astralpool / Zodiac Relay Suit Inverter 78543 20000-360203RELAY

20000-360203 Qty 1 $17.00

36

Astralpool Heat Pump Drive Module 78545 78546 20000-310165VARIABLE FREQUENCY DRIVE MODULE

20000-310165 Qty 1 $3,197.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
