AstralPool TOP DISCHARGE 13KW INVERTER HEAT PUMP Spare Parts

TOP DISCHARGE 13KW INVERTER HEAT PUMP

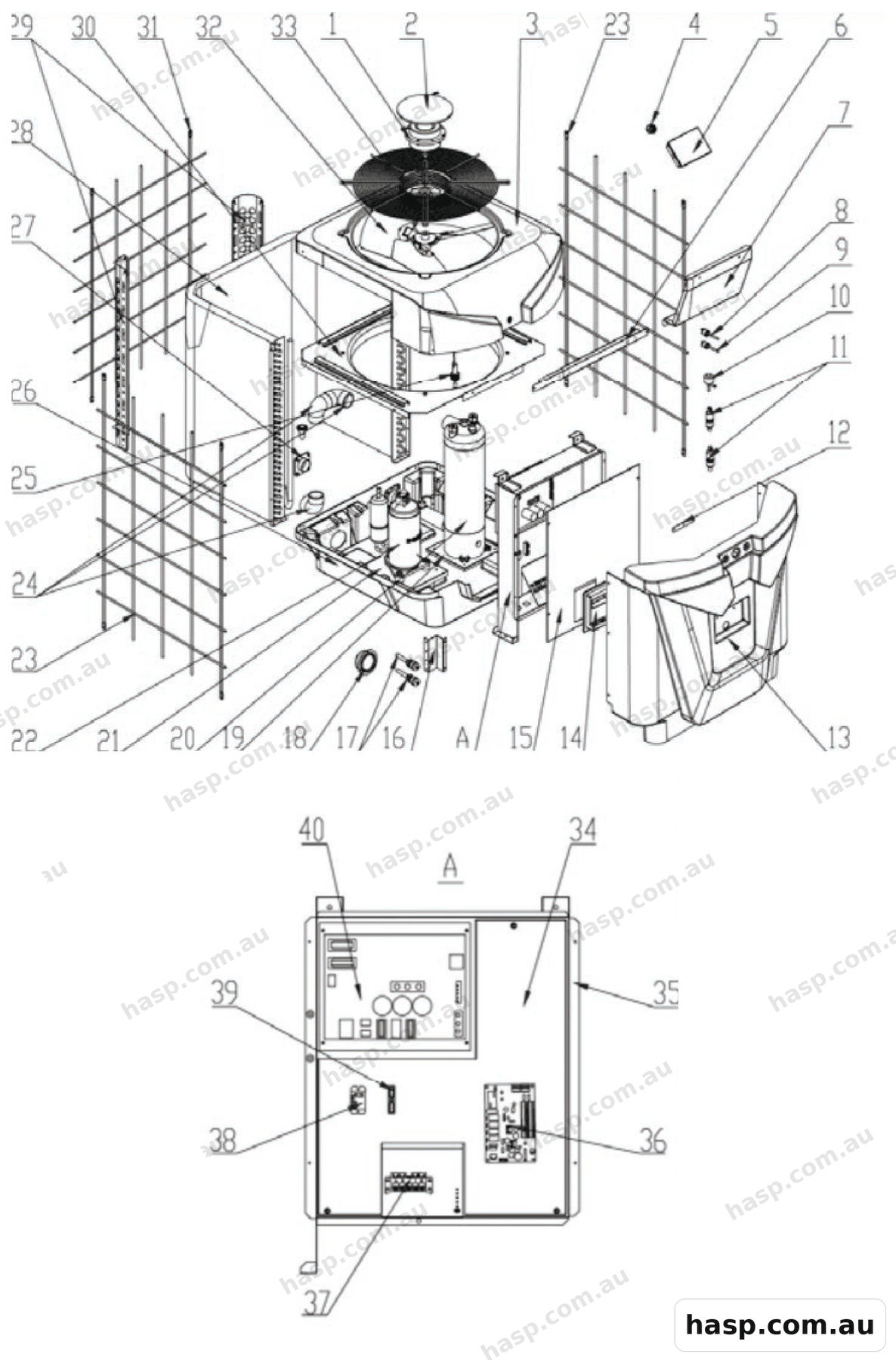

AstralPool TOP DISCHARGE 13KW INVERTER HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 190.

1

Astralpool / Zodiac Fan Motor Suit 20000-330381AXIAL FLOW FAN MOTOR

20000-330381 Qty 1 $874.00

3

Astralpool Top Cover Heat Pump 78560-78561 32012-220106THE TOP

32012-220106 Qty 1 $553.00

8

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

9

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

13

Astralpool The Front Panel 32012-220105THE FRONT PANEL

32012-220105 Qty 1 $386.00

17

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 1 $7.00

18

Astralpool / Zodiac Pressure Gauge All Phnix Heatp 20000-280004PRESSURE GAUGE

20000-280004 Qty 1 $138.00

25

Universal Pool & Spa Flow Switch - Heat Pumps, Chlorinators, Dosing Systems, etc - 3/4"WATER FLOW SWITCH (MOULD)

20000-360005 Qty 1 $72.00

28

Astralpool Finned Heat Exchanger 32012-120155FINNED HEAT EXCHANGER

32012-120155 Qty 1 $2,758.00

37

Astralpool 4 Bit Connection Seat 4000-3901FIVE SOCKET

4000-3901 Qty 1 $873.00

38

Astralpool / Zodiac Relay Suit Inverter 78543 20000-360203RELAY

20000-360203 Qty 1 $17.00

40

Astralpool / Zodiac Drive Module 78543 78544 78561 20000-310170VARIABLE FREQUENCY DRIVE MODULE

20000-310170 Qty 1 $2,647.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
