AstralPool SOLAR CELL Spare Parts

SOLAR CELL

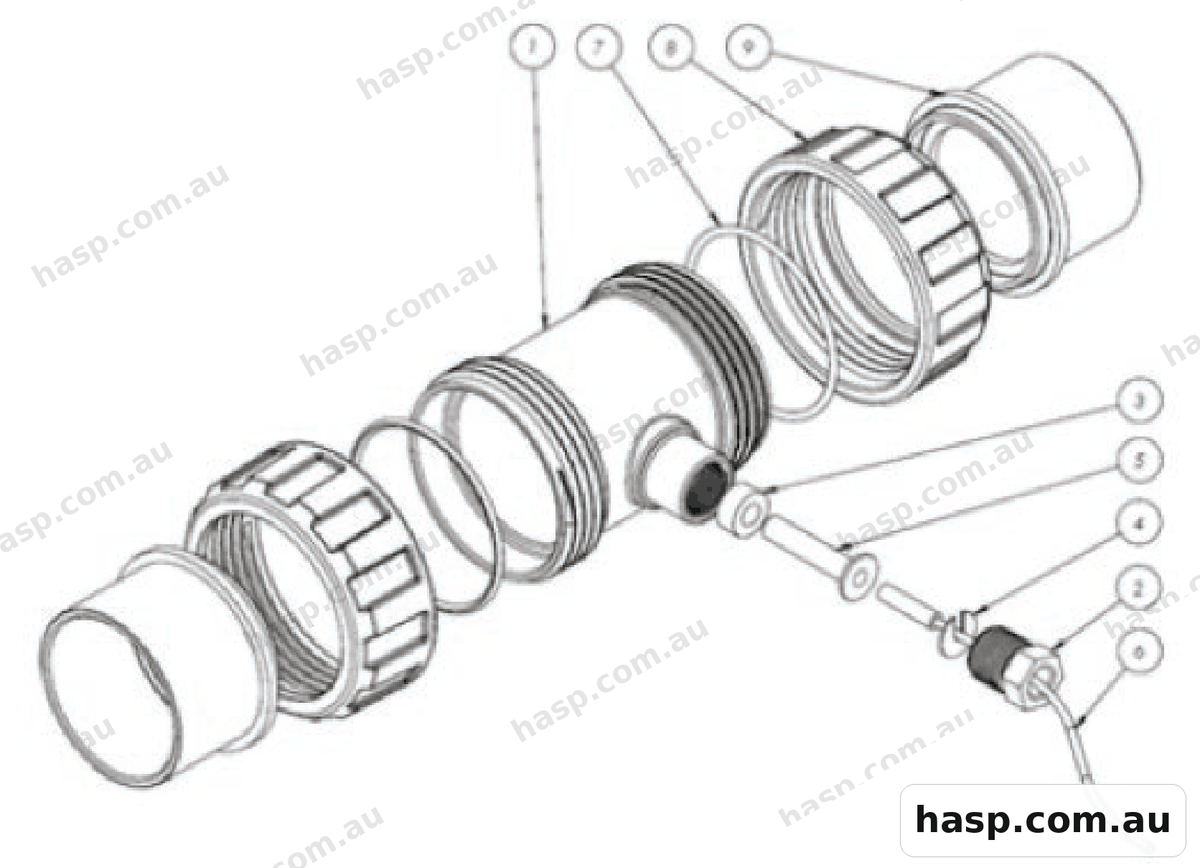

AstralPool SOLAR CELL Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 155.

2

Astralpool Temp Sensor Kit Spare PartsGLAND NUT

2030053 Qty 1 $3.00

3

Astralpool Temp Sensor Kit Spare PartsGLAND GROMMET

2030055 Qty 1 $3.00

4

Astralpool Temp Sensor Kit Spare PartsSENSOR WELL-CAP

477183 Qty 1 $3.00

5

Astralpool Temp Sensor Kit Spare PartsSENSOR WELL - BRASS

477182 Qty 1 $3.00

6

Astralpool Connect 10 Solar Sensor Replacements - Roof & Cold SidesSENSOR

15211 Qty 1 $22.00

7

Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING

70003 Qty 2 $6.90

8

Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT

950919 Qty 2 $31.00

9

Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboPIPE FITTING – GLUE IN

950920 Qty 2 $25.00

NOT SHOWN

Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboCOMPONENT BAG – PIPE FITTINGS

78308 Qty 1 $25.00

Air Switch 10 Amp

-

Astralpool Air Sensor Latching 10AMP 20001AIR SENSOR LATCHING - 10amp

20001 Qty 2 $145.00

-

Astralpool Time Clock Mechanical (air S 20005TIME CLOCK - MECHANICAL

20005 Qty 1 $285.00

-

Astralpool Spplug Base 3 Pin Flat 10A3 SP20032PLUG BASE - 3 PIN (HPM) - FLAT 10A

20032 Qty 2 $14.00

-

Sensapool MF Pressure Gauge / Air Release O'ringAIR SWITCH- MECHANICAL 2MTR

20015 Qty 1 $6.00

-

Astralpool O-Ring Multifunction Time 75168O' RING - MULTIFUNCTION TIME CLOCK

75168 Qty 1 $12.00

Sx Blower

-

Astralpool Air Sensor Latching 10AMP 20001AIR SENSOR LATCHING - 10AMP

20001 Qty 1 $145.00

Skimmer

-

Astralpool Hurlcon / Astralpool Skimmer Weir DoorSKIMMER DOOR - WHITE COLOUR

16247 Qty 1 $16.00

-

Astralpool / Hurlcon Skimmer & Leaf Basket 74577LEAF BASKET

74577 Qty 1 $52.00

-

Astralpool / Zodiac Screw 12G X 1-1/2 Bag Of 18 75136MOUNTING SCREWS

75136 Qty 1 $40.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
