AstralPool S20 SUCTION CLEANER Spare Parts

S20 SUCTION CLEANER
S20

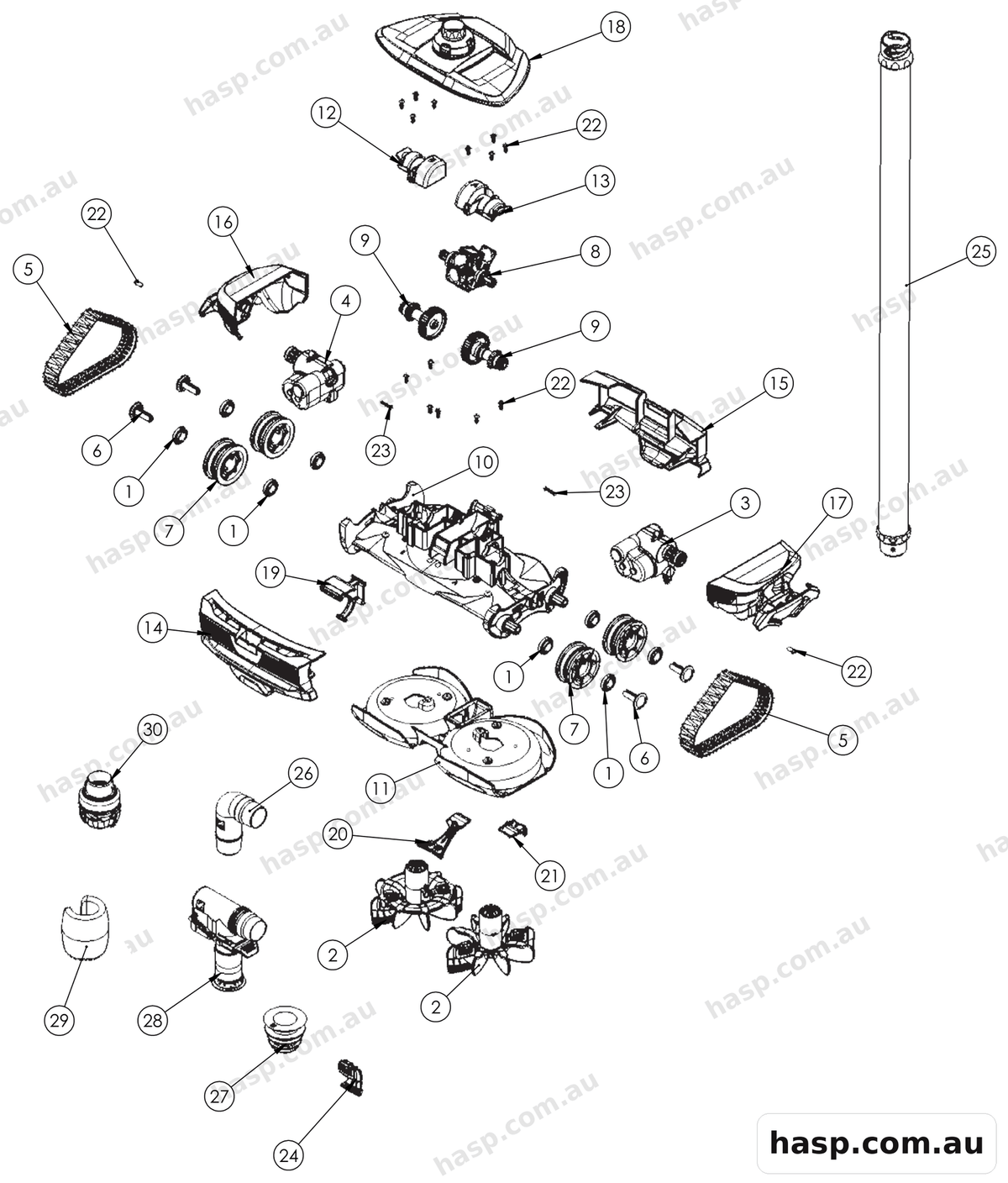

AstralPool S20 SUCTION CLEANER Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 140.

1

Zodiac Ball Bearings Wheels 8 Pack W7230223PKW7230223PK, BALL BEARINGS, WHEELS (2)

W7230223PK Qty 1 $95.00

2

Zodiac Cyclonic Scrubber Black Grey R0937500CYCLONIC SCRUBBER, BLACK GREY, KIT (2PK)

R0937500 Qty 1 $145.00

3

Zodiac Direction Control Device Sidea V 30064101ASSEMBLY, DAD, SIDE A MX NEXT

30064101 Qty 1 $79.00

4

Zodiac Direction Control Device Side B 30064201ASSEMBLY, DAD, SIDE B MX NEXT

30064201 Qty 1 $79.00

5

Zodiac Track AX20 Activ (2 PK) A0434300PKTRACK, MX NEXT, SPARES, 2 PK

A0434300PK Qty 1 $32.00

6

Zodiac Wheel Pin Silver (qty 1) A0203002WHEEL PIN, FULL DISH, SILVER

A0203002 Qty 1 $2.00

7

Zodiac Wheel Suction Cleaner (qty 1) A0434400WHEEL MX NEXT

A0434400 Qty 1 $7.00

8

Zodiac AX20 Activ & Astralpool S20 Engine Assembly - Flex Power Turbine - 30093601MX Next Engine

30093601 Qty 1 $53.00

9

Zodiac Drive Shaft Assembly (qty 1) 30094100DRIVE SHAFT ASSY MX NEXT

30094100 Qty 1 $16.00

10

Astralpool Chassis Assembly S20 30095302CHASSIS WITH INSERTS ASSY MX NEXT WHITE

30095302 Qty 1 $82.00

16

Astralpool Body RS Panel With Track Guard 30140601SIDE PANEL, RIGHT, WITH TRACK GUARD, MX NEXT

30140601 Qty 1 $60.00

18

Astralpool Body Top Swivel Assembly S20 30125500TOP ASSY, MX N BODY B WHITE

30125500 Qty 1 $104.00

19

Astralpool Latch For S20 Suction Cleaner A0492100LATCH, MX NEXT SILVER

A0492100 Qty 1 $4.00

23

Zodiac Screw Thread Forming 6-18 F0106600SCREW, THREAD FORMING, #6-18 7/8in TYPE A, PHILLIPS #2, PAN HEAD

F0106600 Qty 1 $1.00

24

Zodiac Brush Scrubber MX Silver A0358802BRUSH, SCRUBBER, MX, SILVER

A0358802 Qty 1 $6.00

25

Zodiac Hose Jumbo Global 30PK W26060W26060 - HOSE JUMBO GLOBAL 30PK

W26060 Qty 1 $742.00

26

Zodiac 90 Degree Flow Elbow A0219700AU FLOW ELBOW

A0219700 Qty 1 $15.00

27

Zodiac Cuff Weir Universal Eva W70263ADAPTOR, I/G WEIR CUFF (EVA), WHITE

W70263 Qty 1 $21.00

28

Zodiac Au Flow Valve 1PK W70281CFLOW VALVE, AUS

W70281C Qty 1 $65.00

29

Zodiac MX Hose Float A0173800MX8 HOSE FLOAT

A0173800 Qty 1 $15.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
