AstralPool RX MEDIA FILTER Spare Parts

RX MEDIA FILTER

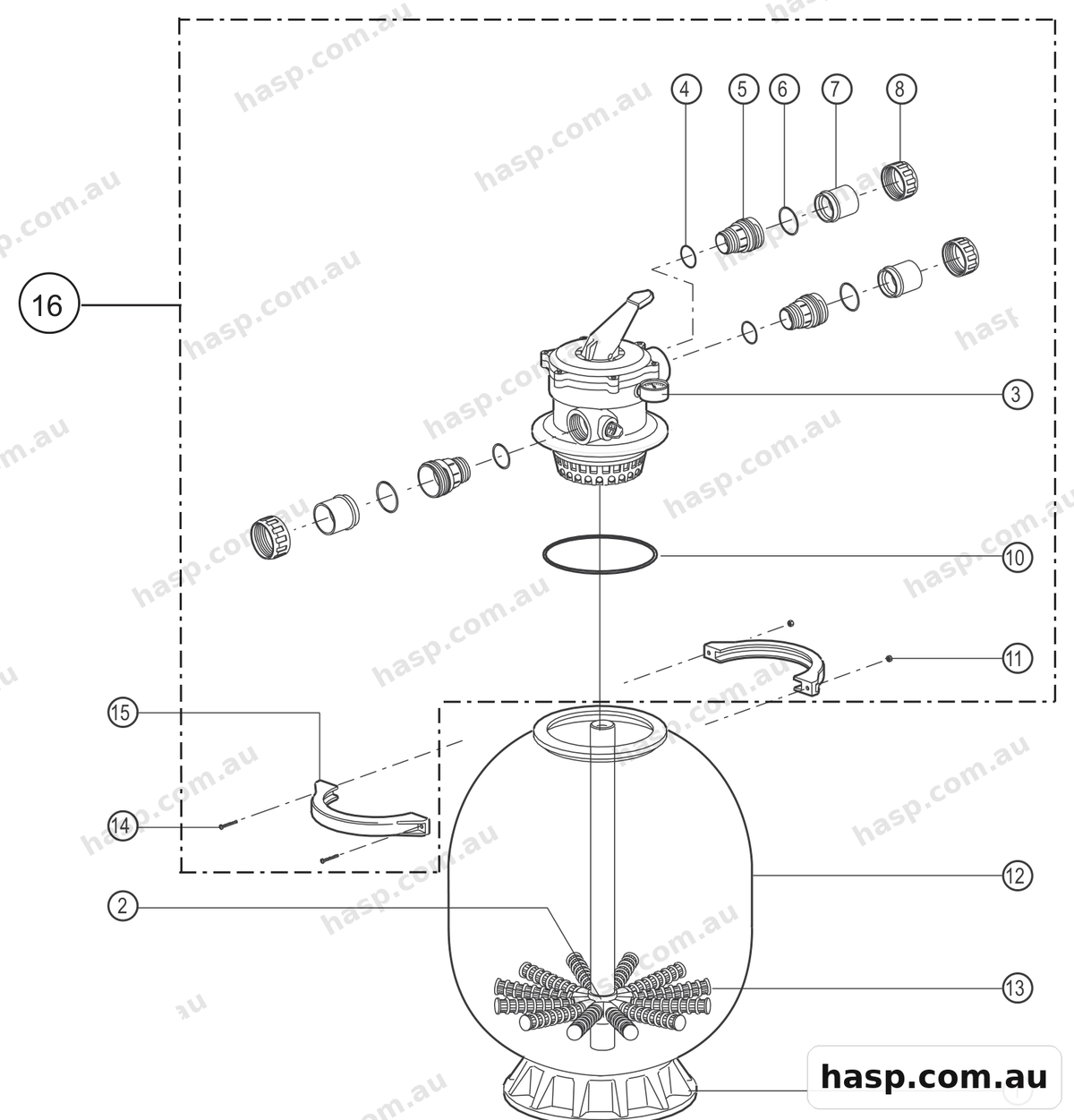

AstralPool RX MEDIA FILTER Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 170.

3

Universal Pressure Gauge for Pool & Spa Filters - 1/4" BSP (13mm thread)PRESSURE GAUGE - LIQUID FILLED DUAL

75032 Qty 1 $23.00

4

Astralpool 40mm Threaded Tail O-ringO RING T/TAIL 40MM - UNION TO VALVE

70008 Qty 3 $2.00

-

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500O RING T/TAIL 50MM - UNION TO VALVE

70009 Qty 3 $2.00

5

Astralpool Hurlcon 40mm Threaded Tail - for FiltersTAIL UNION 40MM -THREADED

950922 Qty 3 $24.95

6

Astralpool / Hurlcon 40mm O-ring - HX, JX, 40mm MPVO RING - 40MM - UNION

75109 Qty 3 $4.89

-

Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO RING - 50MM UNION

70003 Qty 3 $6.90

7

Astralpool / Zodiac Union Tail 40mm PVC 76015UNION TAIL 40MM

76015 Qty 3 $12.00

-

Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboTAIL UNION - 50MM ABS

950920 Qty 3 $25.00

8

Astralpool / Zodiac Lock Nut Union 40mm 76020LOCK NUT UNION - 40MM

76020 Qty 3 $14.00

-

Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT UNION - 50MM

950919 Qty 3 $31.00

10

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500O RING - VALVE TO TANK 40/ 50MM

75058 Qty 1 $2.00

-

Astralpool Lateral 180mm Short, Single - Hurlcon RX180, RX280, RX320, E550, E650 - 77025-1LATERAL SHORT RX180, 280, 320

77025-1 Qty 12 $27.00

14

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500BOLT - 1/4"" BUTTON HEAD S/STEEL

4020001 Qty 2 $2.00

15

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500V CLAMP SET - TOP MOUNT MPV

75010 Qty 1 $2.00

16

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500MULTIPORT VALVE 40MM -Top Mount MP

76032 Qty 1 $2.00

-

Astralpool / Hurlcon MPV Multiport Valve Parts for RX Sand Filters - RX180, RX280, RX320, RX360, RX400, RX500MULTIPORT VALVE 50MM -Top Mount MP

76033 Qty 1 $2.00

17

Astralpool / Zodiac Allen Key 5/32 4010101ALLEN KEY - 5/32 (NOT SHOWN)

4010101 Qty 1 $2.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
