AstralPool PINNACLE IHP SD 217 Spare Parts

PINNACLE IHP SD 217
SD 217

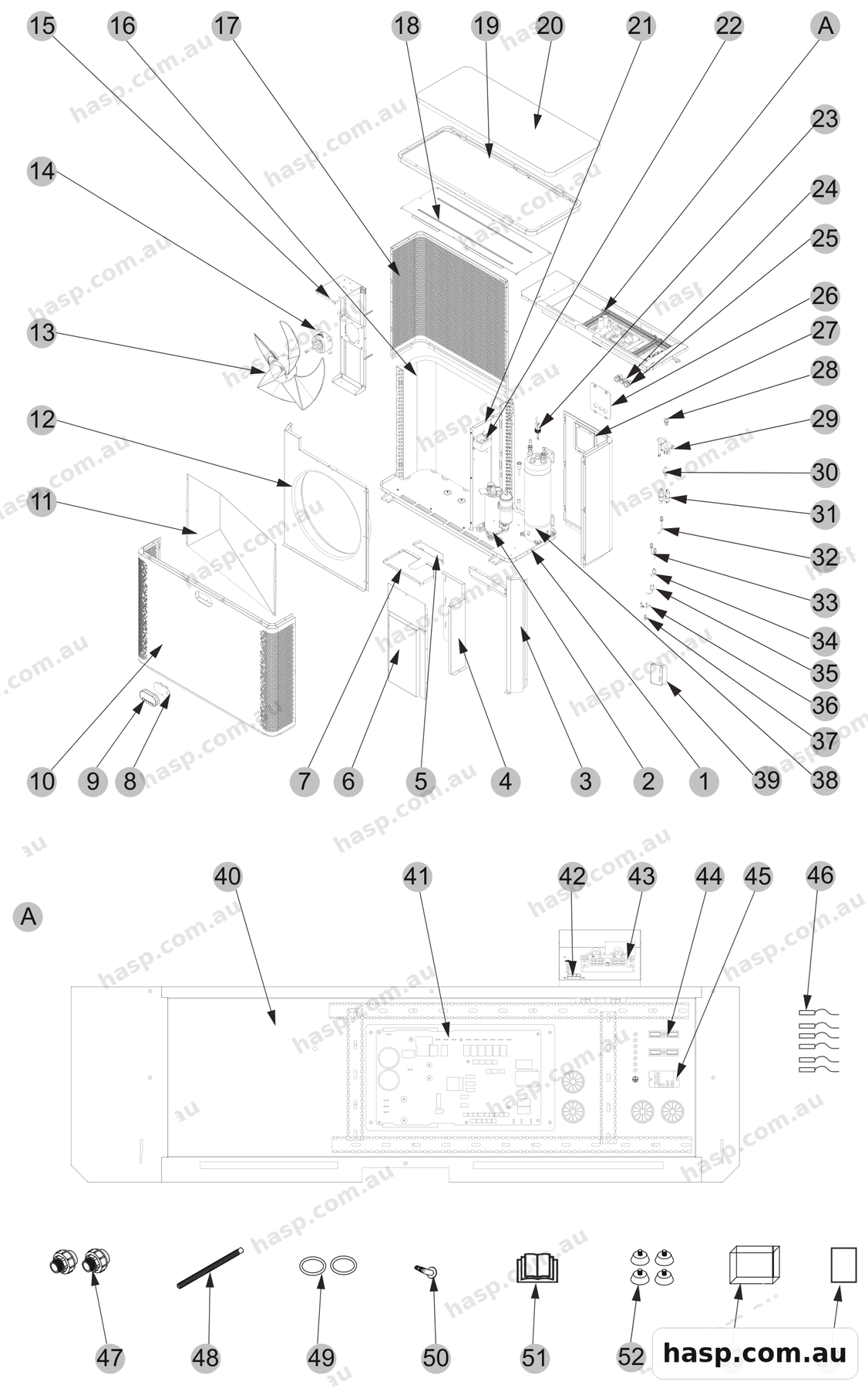

AstralPool PINNACLE IHP SD 217 Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 110.

2

Astralpool Compressor 78580 80100069COMPRESSOR

80100069 Qty 1 $1,148.00

9

Astralpool Controller Pinnacle 72200771DISPLAY-LCD402-G

72200771 Qty 1 $211.00

13

Astralpool Fan Blade 78583-78584 80300078AXIAL FAN BLADES

80300078 Qty 1 $283.00

22

Astralpool Reactor 78584 82500008REACTOR

82500008 Qty 1 $37.00

30

Astralpool Expansion Valve 78580 20000-140573ELECTRONIC EXPANSION VALVE

20000-140573 Qty 1 $92.00

33

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 2 $7.00

45

Astralpool Relay 78581-78584 2000-3619RELAY

2000-3619 Qty 1 $18.00

46

Astralpool Temperature Sensor Pinnacle 83000109EXHAUST TEMP SENSOR

83000109 Qty 1 $13.00

47

Pool Heat Pump Barrel Union / Water ConnectorINLET/OUTLET PVC CONNECTOR

20000-130097 Qty 2 $16.00

50

Astralpool / Zodiac Drain Fit Inverter H Pumps 3400-2203COPPER PIPE FITTING

3400-2203 Qty 1 $8.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
