AstralPool PINNACLE IHP SD 107 Spare Parts

PINNACLE IHP SD 107
SD 107

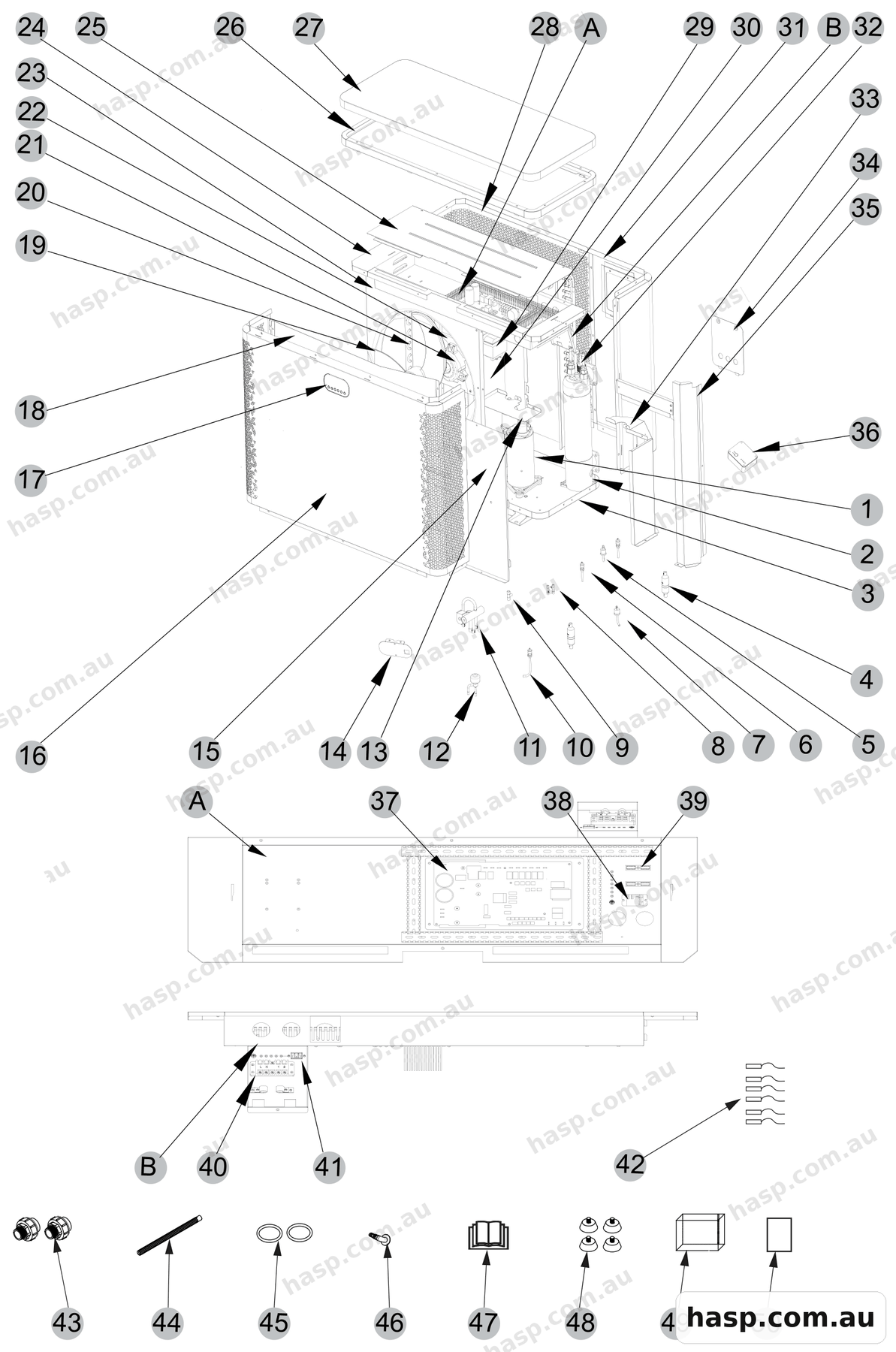

AstralPool PINNACLE IHP SD 107 Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 104.

1

Astralpool Compressor 78581 80100108COMPRESSOR

80100108 Qty 1 $699.00

6

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 2 $7.00

12

Astralpool Expansion Valve 78581 20000-140570ELECTRONIC EXPANSION VALVE

20000-140570 Qty 1 $80.00

19

Astralpool Axial Fan Blades 78581-78582 301030-00000001FAN BLADE

301030-00000001 Qty 1 $56.00

29

Astralpool Reactor For HP WH000618-19 82500020REACTOR

82500020 Qty 1 $43.00

38

Astralpool Relay 78581-78584 2000-3619RELAY

2000-3619 Qty 1 $18.00

40

Astralpool 4 Bit Connection Seat 4000-39015-POLE TERMINAL

4000-3901 Qty 1 $873.00

43

Pool Heat Pump Barrel Union / Water ConnectorINLET/OUTLET PVC CONNECTOR

20000-130097 Qty 2 $16.00

45

Heat Pump Union O-ringRUBBER RING

20000-260009 Qty 2 $2.00

46

Astralpool / Zodiac Drain Fit Inverter H Pumps 3400-2203COPPER PIPE FITTING

3400-2203 Qty 1 $8.00

48

Astralpool Heat Pump Rubber Feet Apl 20000-260086RUBBER FEET

20000-260086 Qty 4 $10.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
