AstralPool IX50 IN LINE LEAF CANISTER Spare Parts

  • IX50 IN LINE LEAF CANISTER
  • IX50
AstralPool IX50 IN LINE LEAF CANISTER Spare Parts

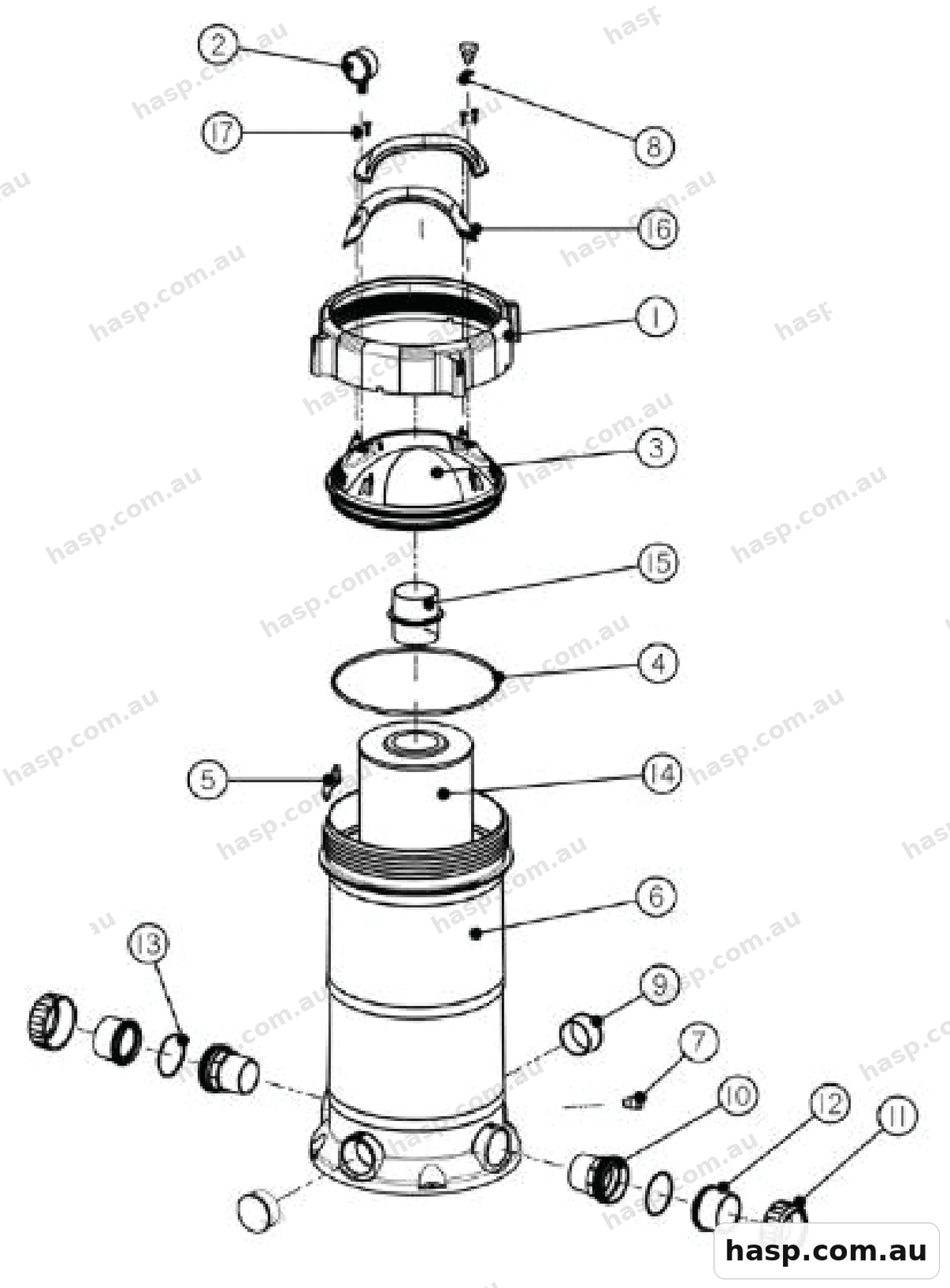

Tap the diagram to enlarge. AstralPool catalogue page 92.
1
Astralpool / Zodiac Lock Ring ZX Filter Graphpearl 7820002LOCKING RING
7820002 Qty 1 $141.00
3
Astralpool ZX / Zodiac ZCF Titan / Filtrite CF / Aquatight / Smart Filter Lid with Handles & Locking RingCOMPLETE LID ASSEMBLY
7820502 Qty 1 $249.00
4
Astralpool ZX / Zodiac ZCF Cartridge Filter Lid O-Ring Seal - MKIILID O-RING
78110 Qty 1 $38.00
6
Astralpool ZX 50 & ZX 75 Filter Tank Body 78380/7821102FILTER BODY – 50/75
7821102 Qty 1 $353.00
Enquire
7
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 2 $4.00
8
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 1 $4.00
9
Astralpool / Zodiac Blanking Cap 50mm Black - ZX Filter 78214BLANKING CAP
78214 Qty 1 $14.00
9
Astralpool / Zodiac Cap ZX Filter Drainage Blank 78218BLANKING CAP WITH DRAIN
78218 Qty 1 $17.00
10
Astralpool / Zodiac Slip Tail - 50mmGLUE IN THREADED PIPE FITTING
950923 Qty 2 $31.00
11
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT
950919 Qty 2 $31.00
12
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - Combo50MM/2 GLUE IN UNION TAIL
950920 Qty 2 $25.00
12
Astralpool / Zodiac Tail Union 50/40mm PVC40MM/1 ½ GLUE IN UNION TAIL
950918 Qty 2 $8.00
13
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO RING
70003 Qty 2 $6.90
14
Astralpool Leaf Canister Basket Assembly 10061LEAF BASKET
10061 Qty 1 $152.00
16
Astralpool / Zodiac Handle ZX Filter Graph Pearl 7820202LID HANDLES
7820202 Qty 2 $17.00
17
Astralpool / Zodiac Screw 10G X 3/4 Pan Head 40218HANDLE SCREWS
40218 Qty 4 $2.00
NOT SHOWN
Astralpool / Zodiac Component Bag Ix Leaf Catche 78312COMPONENT BAG
78312 Qty 1 $77.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
