AstralPool ICI 200C GAS HEATER Spare Parts

  • ICI 200C GAS HEATER
  • ICI 200C
AstralPool ICI 200C GAS HEATER Spare Parts

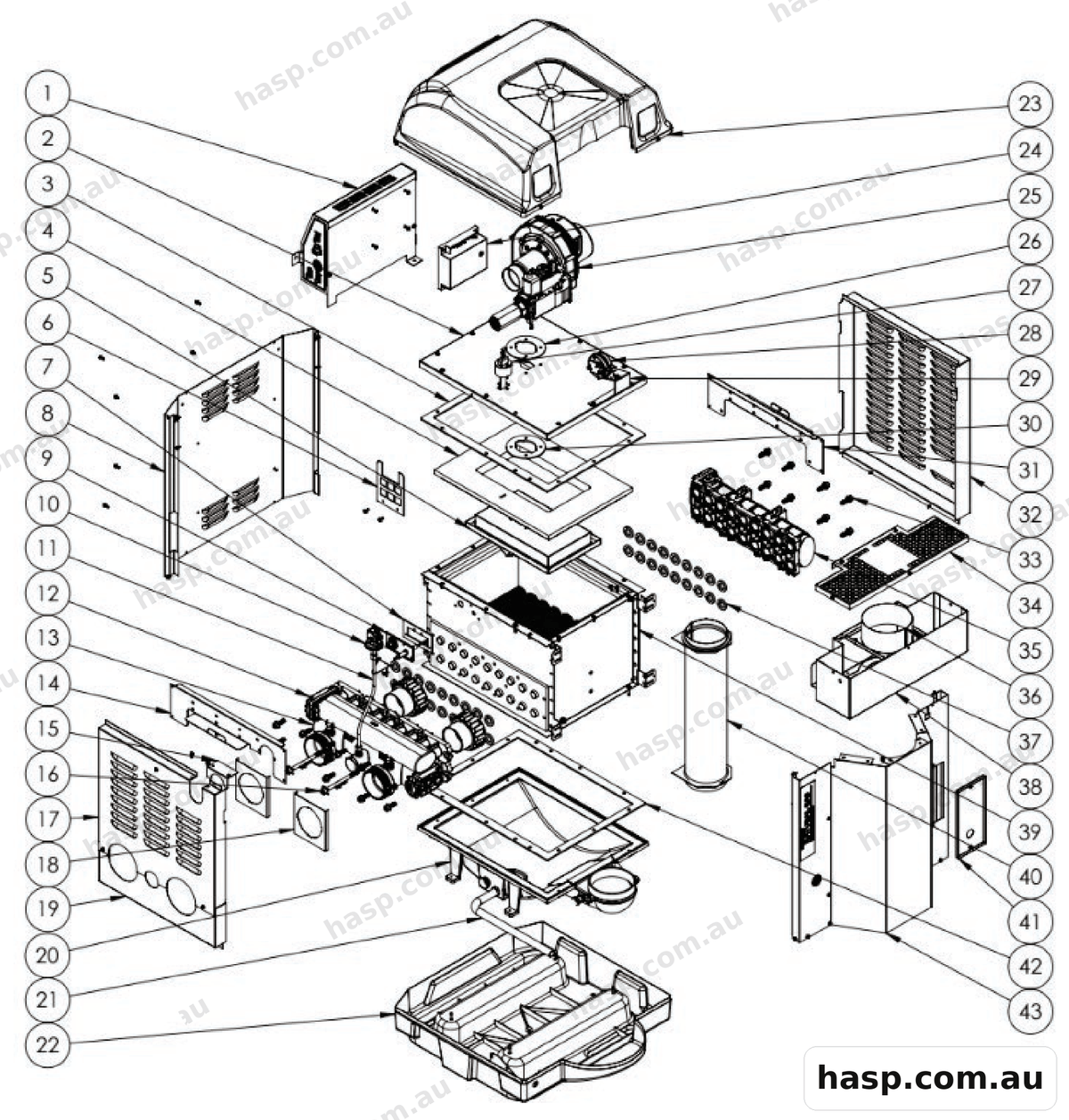

Tap the diagram to enlarge. AstralPool catalogue page 100.
1
Astralpool PCB Suit ICI 200B SP781665200BUSER PANEL PCB
SP781665200B Qty 1 $679.00
2
Astralpool / Zodiac Fan Plate Viron 250-450 ICI 9189430FAN PLATE-ALL MODELS
9189430 Qty 1 $43.00
3
Astralpool Gasket Fan/Burne Viron 250/450 SP78135GASKET- FAN PLATE-ALL MODELS
78135 Qty 1 $12.00
4
Astralpool / Zodiac Insul Viron ICI Fan PLATE03-20 1115068FAN PLATE INSULATION-ALL MODELS
1115068 Qty 1 $164.00
5
Astralpool Burner Replacement Kit ICI Viron SP78409BURNER-ALL MODELS
78409 Qty 1 $1,017.00
9
Astralpool Flame Rod With SightglassFLAME ROD WITH SIGHT GLASS-ALL MODELS
77140 Qty 1 $117.00
10
Astralpool / Hurlcon - Len Gordon Pressure SwitchPRESSURE SWITCH – ALL MODELS
71580 Qty 1 $144.00
12
Astralpool ICI 200, 400 Header Manifolds - Inlet & Outlet / Crossover / ReturnCROSS OVER RETURN HEADER
SP20411 Qty 1 $140.00
13
Astralpool ICI 200, 400 Header Manifolds - Inlet & Outlet / Crossover / ReturnIN/OUT HEATER-ALL MODELS
SP20410 Qty 1 $140.00
24
Astralpool Viron eVo / ICI HSI Ignition Module - Techrite Astralpool FluidraIGNITION MODULE –ALL MODELS
SP79138 Qty 1 $346.00
25
Astralpool Viron, HiNRG, ICI Combustion Fan - RG148FAN-INDUCTION
78132 Qty 1 $1,002.00
26
Astralpool Gasket Fan/Burne Viron 250/450 SP78135GASKET-FAN TO PLATE
78135 Qty 1 $12.00
28
Astralpool / Zodiac Air Pressure Switch Viron/ICI 77139AIR PRESSURE SWITCH
77139 Qty 1 $105.00
30
Astralpool / Zodiac Fibre Gasket Fan Burner Viro 78141FIBER GASKET
78141 Qty 1 $8.00
33
Astralpool / Zodiac Bolt M8 X 25mm SHCD Zinc 40152HEADER BOLTS
40152 Qty 16 $1.00
34
Astralpool Ici Indoor Flue Top CoverFLUE TOP COVER INDOOR-ALL MODELS
1115600 Qty 1 $15.00
35
Astralpool ICI 200, 400 Header Manifolds - Inlet & Outlet / Crossover / ReturnRETURN HEADER
SP71049B Qty 1 $140.00
36
Astralpool Flue Spigot Assembly Indoor ICI 1115110INDOOR FLUE SPIGOT
1115110 Qty 1 $29.00
37
Astralpool Gas Heater Gasket for MX, Viron, ICI, HiNRG - Tube Seals - 9 PackGASKET-TUBE SEALS-BAG OF 9
76121 Qty 4 $51.00
38
Astralpool / Zodiac Flue Base ICI Heater 1115103FLUE BASE-ALL MODELS
1115103 Qty 1 $30.00
39
Astralpool H/Change & Insulation ICI SP111552SP HEAT EXCHANGE-ICI 400 HEATER
SP111552 Qty 1 $2,366.00
40
Astralpool / Zodiac Flue Viron Evo SS 250/350 ICI 78808FLUE TUBE-ALL MODELS
78808 Qty 1 $93.00
NOT SHOWN
Astralpool Temp Sensor Brass Well - Thermostat Well - 1/8"BRASS THERMOSTAT WELL – ALL MODELS
477165 Qty 1 $11.00
NOT SHOWN
Astralpool Hurlcon Gas Heater & Halo Temperature Sensor - Thermistor - HX JX MX Viron ICI HiNRG HaloSENSOR LEAD THERMOSTAT
70276 Qty 1 $19.00
NOT SHOWN
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboPIPE FITTING COMPONENT BAG
78308 Qty 1 $25.00
NOT SHOWN
Astralpool 200° High Limit Switches - for F6 Error - Post-recall & B series Hurlcon Astralpool Gas HeatersFAN PLATE 200deg HILIMIT
SP79141 Qty 1 $67.00
NOT SHOWN
Astralpool 160c High Limit Overtemp Switch - ICI 200 / ICI 400 FlueFLUE 160deg HILIMIT
SP79140 Qty 1 $26.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
