AstralPool HX & HW GAS HEATERS Spare Parts

  • HX & HW GAS HEATERS
AstralPool HX & HW GAS HEATERS Spare Parts

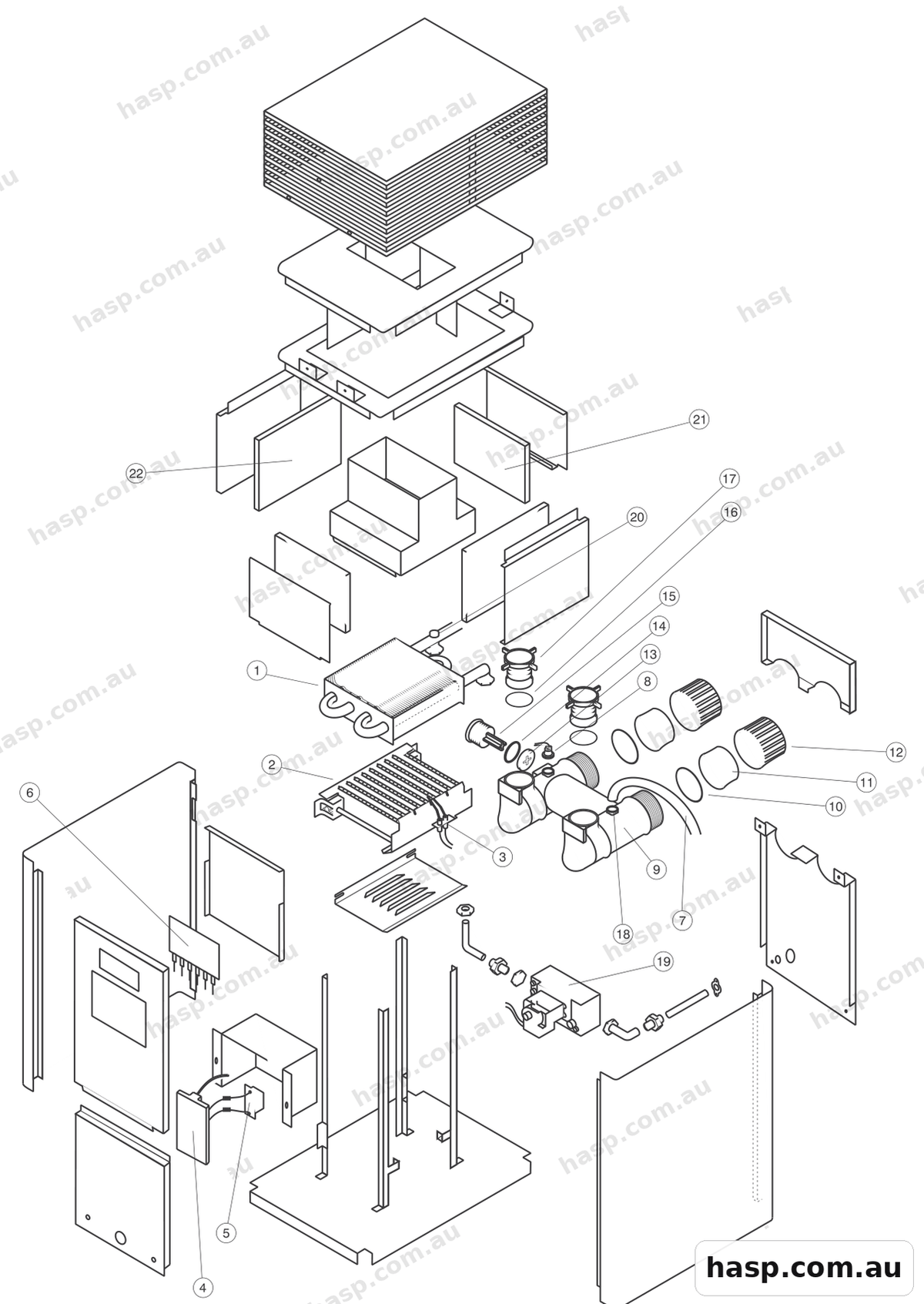

Tap the diagram to enlarge. AstralPool catalogue page 93.
1
Astralpool HX70 Heat ExchangerSP HX70 CUPRO NICKEL HEAT EXCH
SPHSP410 Qty 1 $838.00
-
Astralpool HX 120 Heat Exchanger - Tube BundleSP HX 120 H-EXCH CUPRO NICKEL
SPHSP420 Qty 1 $888.00
2
Astralpool Hurlcon / Astralpool HX Burner Assembly - HX70 & HX120BURNER ASSEMBLY - 9 BLADE HX70
70991 Qty 1 $416.00
-
Astralpool Hurlcon / Astralpool HX Burner Assembly - HX70 & HX120BURNER ASSEMBLY - 14 BLADE HX120
70990 Qty 1 $416.00
-
Astralpool / Zodiac Burner JX160 Natural Gas 20 Blade 70993BURNER ASSEMBLY - 20 BLADE HX150
70993 Qty 1 $273.00
3
Astralpool JX / HX Spark Igniter - DSI Electrode Assembly - Right Angle RodsIGNITOR - DSI - ELECTRODE ASSEMBLY
77185 Qty 1 $87.00
-
Astralpool Ignitor - Suppression LeadIGNITOR - SUPPRESSION LEAD
77186 Qty 1 $29.00
-
Astralpool / Zodiac Ignitor Sensor Lead White 77187IGNITOR - SENSOR LEAD - WHITE
77187 Qty 1 $9.00
4
Astralpool Ignition Module - DSI - 2460DSI IGNITION MODULE - 2460D 501-00
477145 Qty 1 $571.00
5
Astralpool Transformer 24V AC - for Hurlcon Astralpool HeatersTRANSFORMER 240V/24V - 1.25AMP
72052 Qty 1 $238.00
6
Astralpool / Hurlcon Gas Heater PCB - for MX, JX, HX Gas HeatersPCB - THERMOSTAT CURRENT
70280 Qty 1 $449.00
-
Astralpool Hurlcon Minimax HX 70 / HX 120 70275AN Thermostat PCB - Very Old Style - Obsolete (No Longer Available) 70275ANPCB - THERMOSTAT & HI LIMIT ANALOG
70275AN Qty 1 $2.00
Enquire
-
Astralpool Hurlcon HX70 / HX120 / HX150 & WX Thermostat PCB - Older StylePCB - THERMOSTAT & HI LIMIT DIGITAL
70275HX Qty 1 $683.00
7
Astralpool Hurlcon Gas Heater & Halo Temperature Sensor - Thermistor - HX JX MX Viron ICI HiNRG HaloSENSOR LEAD - ELECTRONIC THERMOSTAT CURRENT
70276 Qty 1 $19.00
-
Astralpool Hurlcon Old Style Analogue Temperature Sensor - ThermistorSENSOR - ANALOGUE THERMOSTAT
70276AN Qty 1 $65.00
8
Astralpool / Hurlcon - Len Gordon Pressure SwitchPRESSURE SWITCH WITH UNION
71580 Qty 1 $144.00
9
Astralpool Manifold-HX/JX In/Out - CompleteMANIFOLD INLET/OUTLET - THERMOPLATE
76050 Qty 1 $419.00
10
Astralpool / Hurlcon 40mm O-ring - HX, JX, 40mm MPVO RING - 40MM - UNION
75109 Qty 1 $4.89
11
Astralpool / Zodiac Union Tail 40mm PVC 76015UNION TAIL 40MM
76015 Qty 2 $12.00
12
Astralpool / Zodiac Lock Nut Union 40mm 76020LOCK NUT UNION - 40MM
76020 Qty 2 $14.00
13
Astralpool / Zodiac Plunger Disc Bi Pass Valve. 76026DISC - BY-PASS ASSEMBLY
76026 Qty 1 $6.00
14
Astralpool Hurlcon Astralpool HX JX WX MX Bypass Plunger O Ring SealO RING - BY-PASS ASSEMBLY
70007 Qty 1 $2.00
15
Astralpool / Zodiac Spindle Bi Pass Valve 70-160 76025PLUNGER - BY PASS ASSEMBLY
76025 Qty 1 $16.00
16
Astralpool Hurlcon Astralpool HX, JX, WX Heat Exchanger Adaptor & Seal KitO RING - HEAT EXCHANGE ADAPTOR
70002 Qty 1 $56.00
17
Astralpool Hurlcon Astralpool HX, JX, WX Heat Exchanger Adaptor & Seal KitADAPTOR - HEAT EXCHANGER - F.I.PVC
76030 Qty 2 $56.00
18
Astralpool Temp Sensor Brass Well - Thermostat Well - 1/8"THERMOSTAT WELL - 1/8"" BRASS
477165 Qty 2 $11.00
19
Astralpool Techrite - Hurlcon Astralpool Gas Regulator Valve for HX 70, HX 120, WX Gas HeatersGAS VALVE - 1/2 X 3/4"" 36EO6-301
477143 Qty 1 $650.00
-
Astralpool Gas Valve 3/4 Vr8305GAS VALVE - 3/4"" VR8305
477141 Qty 1 $454.00
20
Astralpool Hi Limit 52C - NC AutoHI LIMIT - 52° C
71031 Qty 1 $38.00
-
Astralpool / Zodiac High-Limit 43C NC Auto Thread 71039HI LIMIT - 43° C
71039 Qty 1 $80.00
21
Astralpool Insulation HX70 Front Rear 425057INSULATION - HX70 FRONT / REAR
425057 Qty 1 $31.00
21
Astralpool / Zodiac Ins Sides 218X168X13mm 425049INSULATION - HX70 L & R
425049 Qty 2 $83.00
22
Astralpool Hurlcon HX & WX Insulation and Fire BricksINSULATION - SIDES HX120 FRONT
425064 Qty 2 $352.00
-
Astralpool Hurlcon HX & WX Insulation and Fire BricksINSULATION - HX120 REAR
425065 Qty 2 $352.00
-
Astralpool Hurlcon HX & WX Insulation and Fire BricksINSULATION - HX120 L & R
425066 Qty 2 $352.00
not shown
Astralpool HX Heater Loom B 65005WIRING LOOM (B) - THERMOSTAT
65005 Qty 2 $98.00
not shown
Astralpool Injector Natural Gas Suit HX Burner 71450NATURAL INJECTOR - HX BURNER (NAT)
71450 Qty 1 $14.00
not shown
Astralpool LPG Injector Suit HX Burner 350120NATURAL INJECTOR - HX BURNER (LPG)
350120 Qty 1 $14.00
not shown
Astralpool Manifold-HX/JX In/Out - CompleteMANIFOLD ASSEMBLY - COMLETE
76050 Qty 1 $419.00
-
Astralpool Label - HX, JX, MX Thermostat LabelTHERMOSTAT FACIA LABEL
LABEL274 Qty 1 $82.00
1
Astralpool / Hurlcon - Len Gordon Pressure SwitchPRESSURE SWITCH WITH UNION
71580 Qty 1 $144.00
2
Astralpool Hurlcon Astralpool HX, JX, WX Heat Exchanger Adaptor & Seal KitADAPTOR - HEAT EXCHANGER
76030 Qty 2 $56.00
3
Astralpool Hurlcon Astralpool HX, JX, WX Heat Exchanger Adaptor & Seal KitO RING - HEAT EXCHANGE ADAPTOR
70002 Qty 2 $56.00
4
Astralpool / Zodiac Spindle Bi Pass Valve 70-160 76025PLUNGER - BY PASS ASSEMBLY
76025 Qty 1 $16.00
5
Astralpool Hurlcon Astralpool HX JX WX MX Bypass Plunger O Ring SealO RING - BY-PASS ASSEMBLY
70007 Qty 1 $2.00
6
Astralpool / Zodiac Plunger Disc Bi Pass Valve. 76026DISC - BY-PASS ASSEMBLY
76026 Qty 1 $6.00
7
Astralpool / Zodiac Lock Nut Union 40mm 76020LOCK NUT UNION - 40MM
76020 Qty 2 $14.00
8
Astralpool / Zodiac Union Tail 40mm PVC 76015UNION TAIL 40MM
76015 Qty 2 $12.00
9
Astralpool / Hurlcon 40mm O-ring - HX, JX, 40mm MPVO RING - 40MM - UNION
75109 Qty 2 $4.89
10
Astralpool Hurlcon Gas Heater & Halo Temperature Sensor - Thermistor - HX JX MX Viron ICI HiNRG HaloSENSOR LEAD - ELECTRONIC THERMOSTAT
70276 Qty 1 $19.00
11
Astralpool Temp Sensor Brass Well - Thermostat Well - 1/8"THERMOSTAT WELL - 1/8"" BRASS
477165 Qty 1 $11.00
not shown
Astralpool Hurlcon Astralpool HX JX Gas Heater Seal Kits and PartsBY PASS SPRING HX
71922 Qty 1 $33.00
not shown
Astralpool Hurlcon Astralpool HX JX Gas Heater Seal Kits and PartsBY PASS SPRING WX
71924 Qty 1 $33.00
not shown
Astralpool Hurlcon Astralpool HX, JX, WX Heat Exchanger Adaptor & Seal KitSANTOPRENE WASHER
76001 Qty 2 $56.00
not shown
Astralpool Pair of Split Pins / Cotter Pins for Hurlcon and Astralpool Gas HeatersSPLIT PINS
76040 Qty 6 $2.00
-
Astralpool Manifold-HX/JX In/Out - CompleteMANIFOLD ASSEMBLY COMPLETE (EXCLUDING FI ADAPTORS B/UNIONS AND ELECTRONICS)
76050 Qty 1 $419.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
