AstralPool FX PUMPS Spare Parts

  • FX PUMPS
AstralPool FX PUMPS Spare Parts

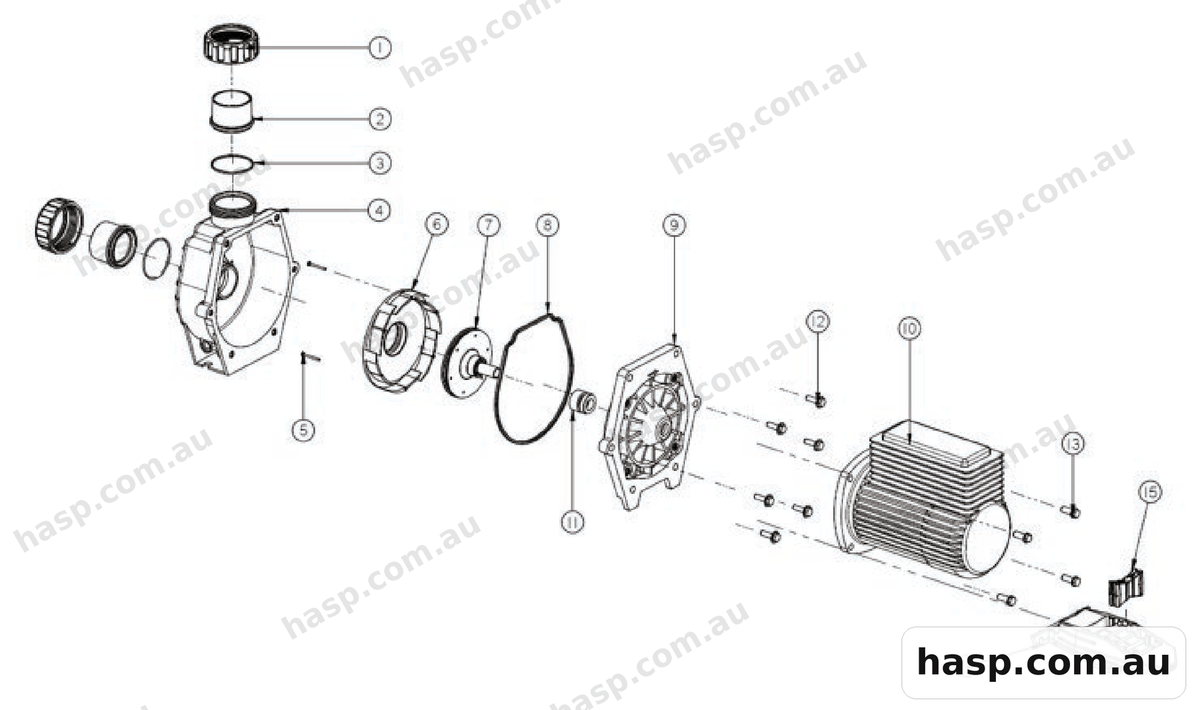

Tap the diagram to enlarge. AstralPool catalogue page 167.
1
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 95091950MM LOCK NUT
950919 Qty 1 $31.00
2
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - ComboPIPE UNION 50MM (2”)
950920 Qty 1 $25.00
3
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING
70003 Qty 1 $6.90
4
Astralpool / Zodiac Volute FX G Pearl Grey 4009602FX PUMP BODY
4009602 Qty 1 $563.00
5
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165SCREW- DIFFUSER
40165 Qty 2 $4.00
6
Astralpool / Zodiac Diffuser FX 40072ADIFFUSER
40072A Qty 1 $101.00
7
Astralpool / Hurlcon Impeller CTX 180 FX 190 P310 40060RIMPELLER FX 190
40060R Qty 1 $79.00
7
Astralpool / Hurlcon Impeller CX240 FX250 40060BIMPELLER FX 250
40060B Qty 1 $79.00
7
Astralpool / Hurlcon Impeller P280 P320 eVo FX290 E290 CTX360 40060FIMPELLER FX 290
40060F Qty 1 $79.00
7
Astralpool Impeller Ecombie FX340 CTX400 40060GIMPELLER FX 340
40060G Qty 1 $79.00
7
Astralpool / Hurlcon Impeller CX400 FX520 Pump 40060JIMPELLER FX 520
40060J Qty 1 $79.00
8
Astralpool Pump Body O-ring / Gasket - Various - See ListingFX SEALPLATE SEAL
70004 Qty 1 $48.00
9
Astralpool / Zodiac Seal Plate Ser 1 G Pearl 4009002SEAL PLATE
4009002 Qty 1 $224.00
10
Astralpool Pump Motor 750W Mini 71310 (Black) - CTX 180, FX 190, E-SeriesMOTOR FX 190
71310 Qty 1 $845.00
11
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL-316 VITON
PS3868 Qty 1 $28.00
13
Astralpool / Zodiac Bolt M8 X 30mm Ind Hex Sem 40150MOTOR BOLTS
40150 Qty 4 $6.00
14
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
15
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
NOT SHOWN
Astralpool / Zodiac Brass Hex Nut M8 - TX / CX / CTX / E-Series 40272NUTS FOR BOLTS
40272 Qty 6 $4.00
NOT SHOWN
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303COMPONENT BAG
78303 Qty 1 $165.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
