AstralPool FILTER PARTS Spare Parts

  • FILTER PARTS
AstralPool FILTER PARTS Spare Parts

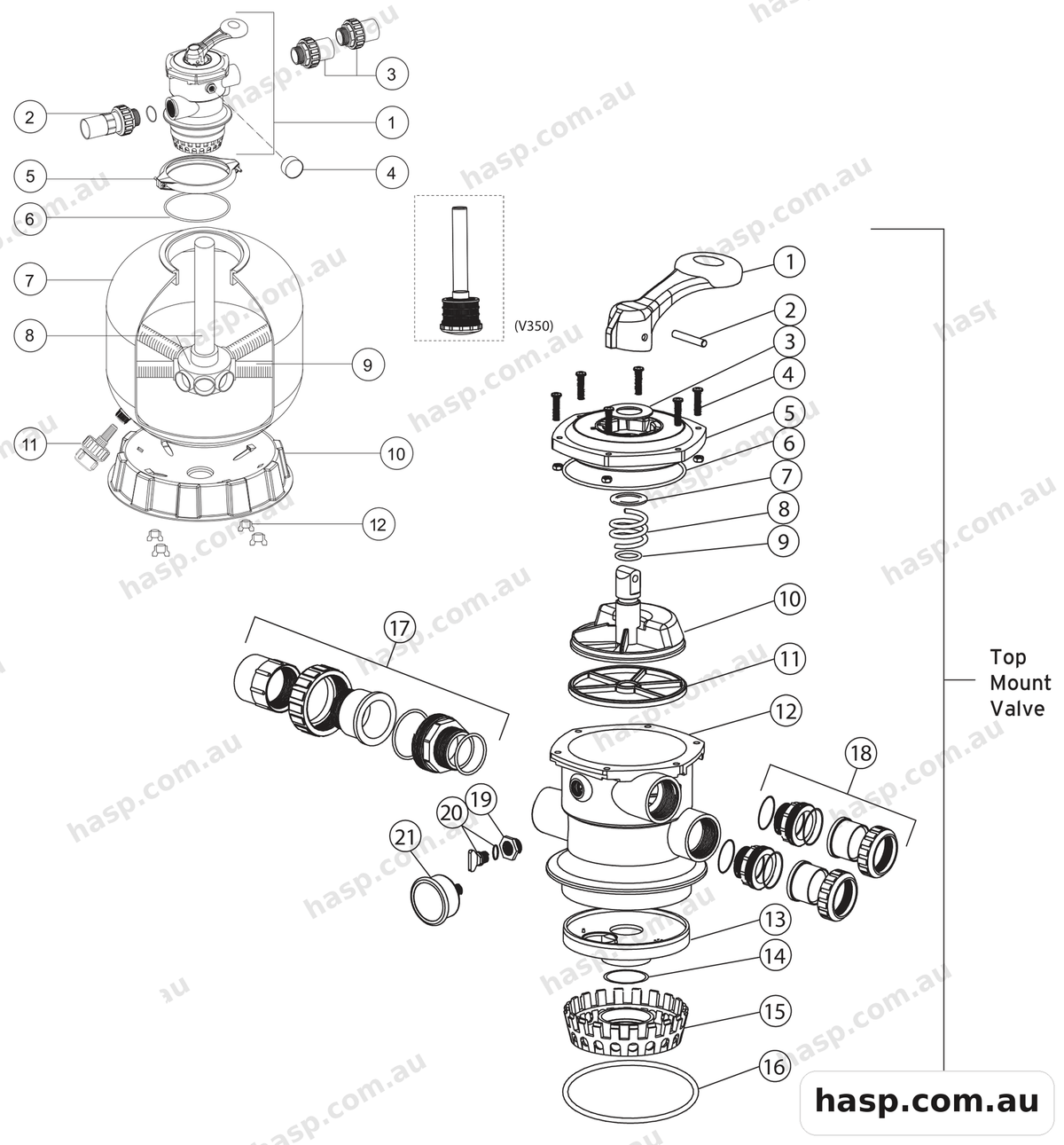

Tap the diagram to enlarge. AstralPool catalogue page 86.
1
Zodiac Top Mount Valve 40mm W8828010540mm Top Mount Valve
W88280105 Qty 1 $310.00
2
Zodiac Union 40mm with O-Ring & Sight Glass W8928010140mm Union With Sight Glass, O-Ring
W89280101 Qty 1 $22.00
3
Zodiac Union 40mm with O-Ring W8928010240mm Union Set With O-Ring
W89280102 Qty 2 $14.00
5
Zodiac Bolt & Nut M6 X 50 W89010119M6*50 Screws With Nut
W89010119 Qty 2 $6.00
6
Zodiac Titan and Emaux O-Ring for Filter Neck, Clamp Type Valve - W02011134O-Ring for Filter Neck
W02011134 Qty 1 $7.00
7
Astralpool APV 650 Sand / Media Filter — 25" Fibreglass — Pickup Carrum Downs, VicAPV650 Filter tank
50025 Qty 1 $1,106.00
8
Zodiac Lateral Assembly With Centre ZT650 W89010103APV650 Lateral Assembly with Center Pipe
W89010103 Qty 1 $37.00
9
Zodiac Laterals 126mm ZTS500 ZTS700 W01172008APV650 Laterals (126mm)
W01172008 Qty 8 $5.00
10
Zodiac Filter Base Titan W01111062APV650 Filter
W01111062 Qty 1 $82.00
11
Zodiac Titan Water Drain Set W89010107 for ZT Series Fibreglass Sand FiltersWater Drain Set
W89010107 Qty 1 $15.00

Top Mount Valve

1
Zodiac Handle Titan Series W01013003Handle
W01013003 Qty 1 $9.00
2
Zodiac Pin Handle Titan Series W03018008Pin for Handle
W03018008 Qty 1 $6.00
3
Zodiac Washer Handle Titan Series W01181001Plastic Washer for Handle
W01181001 Qty 1 $1.00
-
Zodiac Screw Nut Set ZT 650 W89280107M6×30 Screw with Nut for Standard Lid
W89280107 Qty 6 $8.00
5
Zodiac 40mm Top Mount Valve Standard Lid W0101300440mm Top Mount Valve Standard Lid (Black)
W01013004 Qty 1 $28.00
6
Zodiac O-Ring 40mm Valve Lid W02011002O-Ring for 40mm Valve Lid
W02011002 Qty 1 $6.00
7
Zodiac Washer Spring 40mm Top W01181002Washer for Spring
W01181002 Qty 1 $1.00
8
Zodiac Spring 40mm Top Mount Val W03014001Spring for 40mm Top Mount Valve
W03014001 Qty 1 $60.00
9
Zodiac O-Ring 1.5 Valve Rotor W02011022O-Ring for 40mm Valve Rotor
W02011022 Qty 2 $3.00
10
Zodiac Valve Rotator 40mm W0102100140mm Valve Rotor
W01021001 Qty 1 $15.00
11
Zodiac Spider Gasket 40mm Top MT Val W02311002Spider Gasket
W02311002 Qty 1 $5.00
14
Zodiac O-Ring Diffuser 40mm Top W02011001O-Ring for Diffuser
W02011001 Qty 1 $2.00
16
Zodiac Titan and Emaux O-Ring for Filter Neck, Clamp Type Valve - W02011134O-Ring
W02011134 Qty 1 $7.00
17
Zodiac Union 40mm with O-Ring & Sight Glass W8928010140mm Union With Sight Glass, O-Ring
W89280101 Qty 1 $22.00
18
Zodiac Union 40mm with O-Ring W8928010240mm Union Set With O-Ring
W89280102 Qty 2 $14.00
19
Threaded Pressure Gauge Adaptor for Sand FiltersConnector for pressure gauge/stopper
W01111048 Qty 1 $2.00
20
Zodiac Drain Plug with O-Ring ZTS Pump W89021703Drain Plug with O-ring
W89021703 Qty 1 $2.00
-
Zodiac O-Ring 40mm Connector W0201115140mm Union O-ring
W02011151 Qty 1 $2.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
