AstralPool FILTER PARTS Spare Parts

  • FILTER PARTS
AstralPool FILTER PARTS Spare Parts

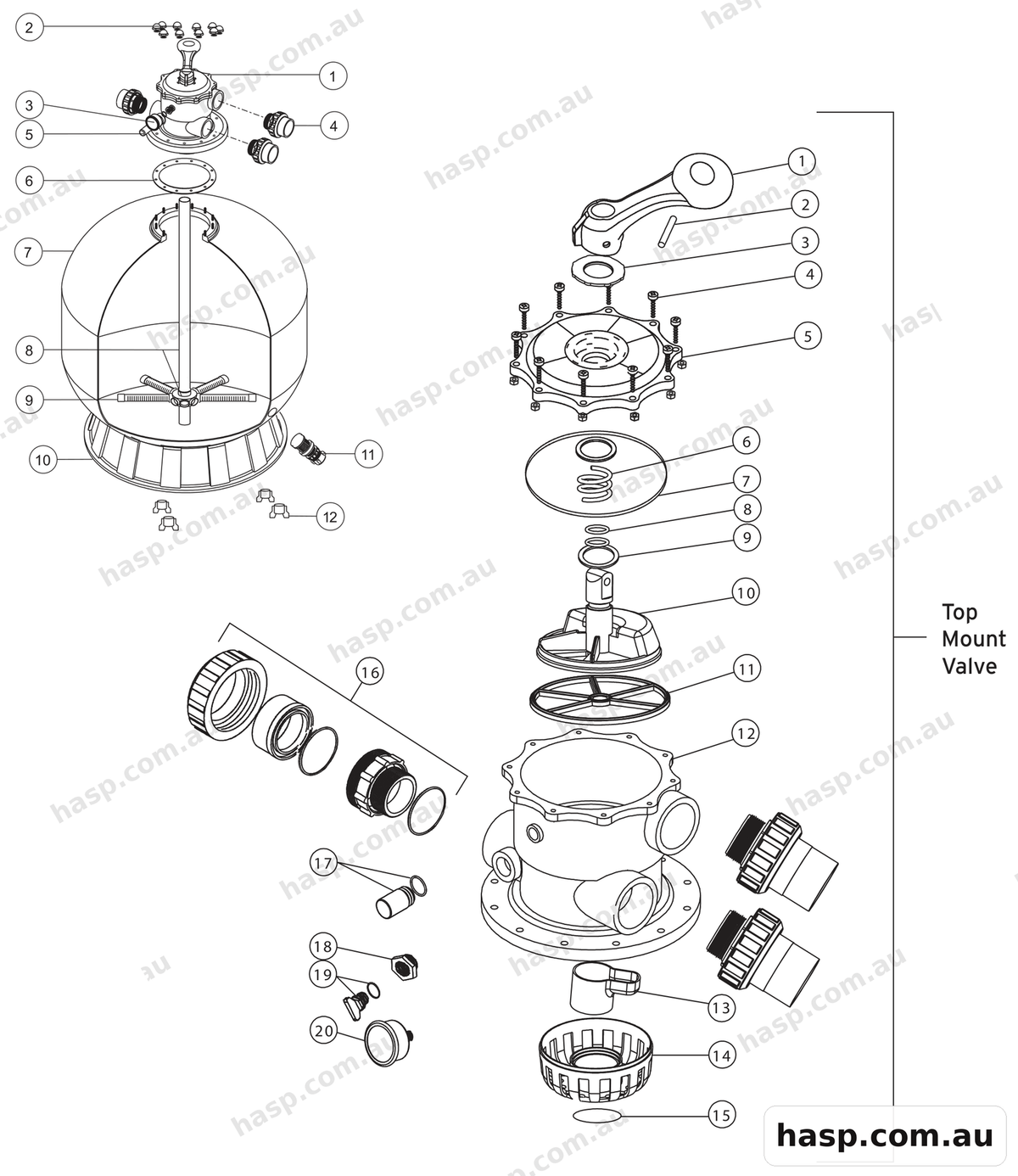

Tap the diagram to enlarge. AstralPool catalogue page 84.
1
Zodiac Top Mount Valve 50mm W8828030650mm Top Mount Valve
W88280306 Qty 1 $472.99
2
Zodiac Nut And Washer W89010601Nut with O-Ring
W89010601 Qty 1 $8.00
3
Threaded Pressure Gauge Adaptor for Sand FiltersConnector for Pressure Gauge/Stopper
W01111048 Qty 1 $2.00
4
Zodiac Titan and Emaux 50mm MPV Union Set with O-Ring - ZT700B, ZT800, ZT900 - W8928010350mm Union set (3 pieces) with O-Ring
W89280103 Qty 3 $23.00
5
Zodiac Sight Glass with O-Ring W89280104Sight glass with O-Ring
W89280104 Qty 1 $4.00
6
Zodiac Filter Neck Gasket W02011126Filter Neck Gasket
W02011126 Qty 1 $22.00
7
Astralpool APV 800 Sand / Media Filter — 32" Fibreglass — Pickup Carrum Downs, VicAPV800 Filter tank with base
50032 Qty 1 $2,267.00
8
Zodiac Standpipe & Hub ZT700B W89010611APV700 Lateral Assembly with Center Pipe
W89010611 Qty 1 $52.00
8
Zodiac Standpipe & Hub Titan ZT800 W89010607APV800 Lateral Assembly with Center Pipe
W89010607 Qty 1 $60.00
8
Zodiac Standpipe & Hub V900 W89010608APV900 Lateral Assembly with Center Pipe
W89010608 Qty 1 $78.00
9
Zodiac Laterals 185mm ZTS700B 900 W01172010APV700 - APV900 Laterals (185mm)
W01172010 Qty 8 $7.00
10
Zodiac Titan Water Drain Set W89010107 for ZT Series Fibreglass Sand FiltersWater Drain Set
W89010107 Qty 1 $15.00

Top Mount Valve

1
Zodiac Handle Titan Series W01013003Handle (Big)
W01013003 Qty 1 $9.00
2
Zodiac Pin Handle Titan Series W03018008Pin for Handle
W03018008 Qty 1 $6.00
3
Zodiac Washer Handle Titan Multiport Valve W01181027Plastic Washer for Handle
W01181027 Qty 1 $1.00
4
Zodiac M6 Screw With Nut W89280301M6*32 Screw with Nut
W89280301 Qty 10 $2.00
6
Zodiac Spring 50mm Top Mount Valve W03014014Spring for 50mm Top Mount Valve
W03014014 Qty 1 $60.00
7
Zodiac O-Ring 50mm Multiport Valve W02011006O-Ring for 50mm Top Mount Valve Lid
W02011006 Qty 1 $21.00
8
Zodiac O-Ring 1.5 Valve Rotor W02011022O-Ring for 50mm Top Mount Valve Rotor
W02011022 Qty 2 $3.00
9
Zodiac Washer Spring 40mm Top W01181002Washer for Spring
W01181002 Qty 2 $1.00
10
Zodiac Valve Rotator 50mm W0102100250mm Valve Rotor
W01021002 Qty 1 $25.00
11
Zodiac Spider Gasket 50mm Top Mount Multiport Valve - Titan ZT700B, ZT800, ZT900 - W02311003Spider Gasket
W02311003 Qty 1 $8.00
12
Zodiac 50mm TPM Vlve BTM Assembly W0101302750mm Top Mount Valve Bottom Body (black)
W01013027 Qty 1 $138.00
15
Zodiac Titan and Emaux O-Ring for Diffuser 50mm Top Mount Valve - W02011005O-Ring for Diffuser
W02011005 Qty 1 $2.20
16
Zodiac Titan and Emaux 50mm MPV Union Set with O-Ring - ZT700B, ZT800, ZT900 - W8928010350mm Union set (3 pieces) with O-Ring
W89280103 Qty 3 $23.00
17
Zodiac Sight Glass with O-Ring W89280104Sight Glass with O-Ring
W89280104 Qty 1 $4.00
18
Threaded Pressure Gauge Adaptor for Sand FiltersConnector for Pressure Gauge/Stopper
W01111048 Qty 1 $2.00
19
Zodiac Drain Plug with O-Ring ZTS Pump W89021703Drain Plug with O-ring
W89021703 Qty 1 $2.00
20
Zodiac Pressure Gauge Titan Oil 40PSI W06011029Oil Pressure Gauge With O-ring (50psi)
W06011029 Qty 1 $46.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
