AstralPool ECO INVERTER 12KW INVERTER HEAT PUMP Spare Parts

ECO INVERTER 12KW INVERTER HEAT PUMP

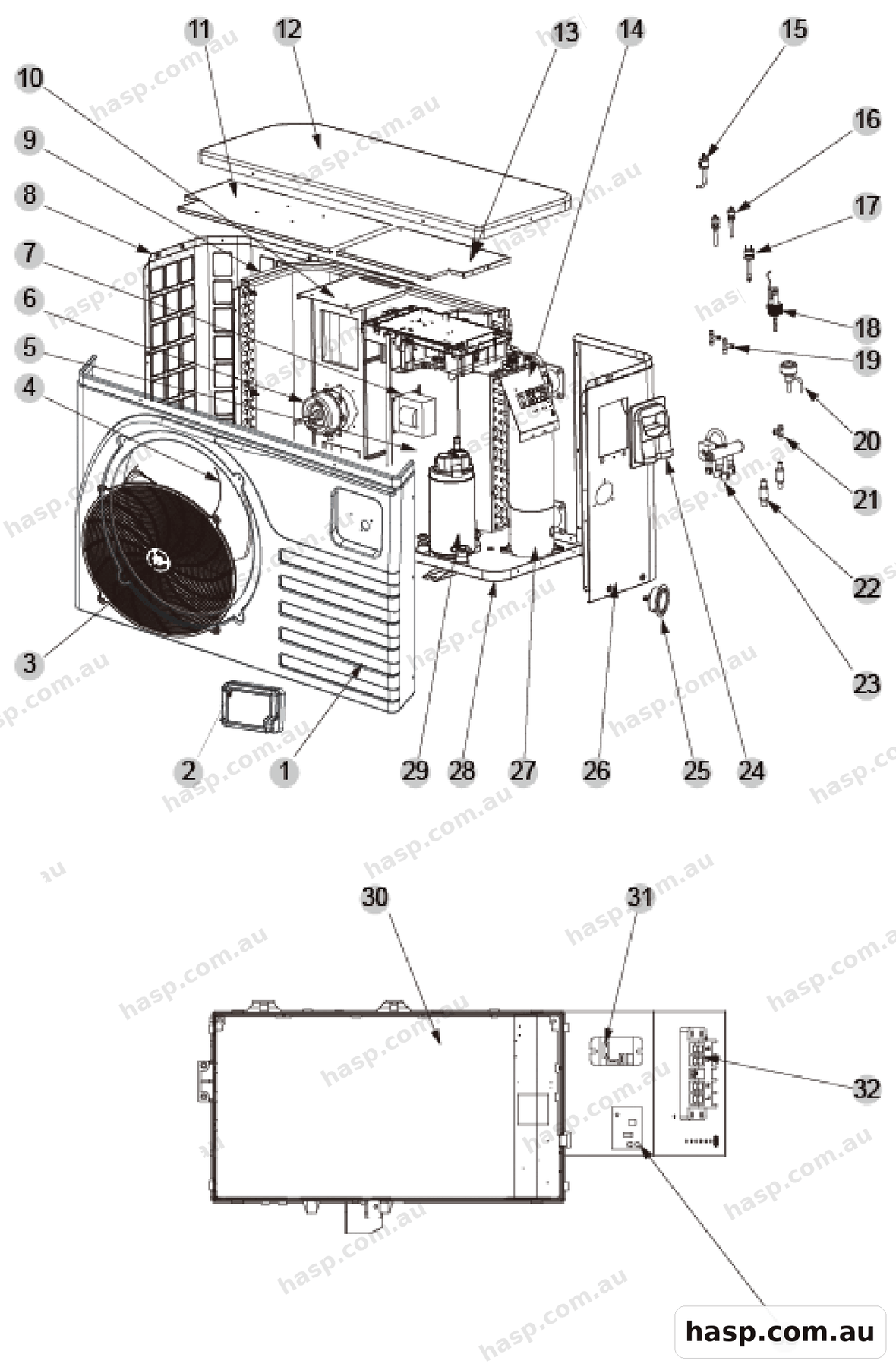

AstralPool ECO INVERTER 12KW INVERTER HEAT PUMP Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 186.

2

Astralpool Display Screen for ECO Inverter 7, 8, 12kW Heat Pumps 72200077CM404 DISPLAY

72200077 Qty 1 $298.00

4

Astralpool Axial Fan Blades 301030-00000006AXIAL FAN BLADES

301030-00000006 Qty 1 $37.00

6

Astralpool DC Motor 80200018DC MOTOR

80200018 Qty 1 $327.00

9

Astralpool Heat Exchanger For 78568 80600043FINNED HEAT EXCHANGER

80600043 Qty 1 $1,005.00

12

Astralpool Top 80900055TOP

80900055 Qty 1 $184.00

15

Astralpool / Zodiac Low Pressure Switch Eco H/Pump 20000-360157PRESSURE SWITCH

20000-360157 Qty 1 $30.00

16

Astralpool Needle Valve 20000-140150NEEDLE VALVE

20000-140150 Qty 1 $7.00

17

Astralpool / Zodiac High Pressure Switch Low Press 2001-3605PRESSURE SWITCH

2001-3605 Qty 1 $118.00

27

Astralpool Titanium Tube Heat Exchanger 32012-120056TITANIUM TUBE HEAT EXCHANGER

32012-120056 Qty 1 $748.00

29

Astralpool Compressor Suit 78567-78572 20000-110448COMPRESSOR

20000-110448 Qty 1 $978.00

31

Astralpool Relay For Phnix H/Pumps 20000-360297RELAY

20000-360297 Qty 1 $19.00

32

Astralpool 4 Bit Connection Seat 4000-39015 BIT WIRING BLOCK

4000-3901 Qty 1 $873.00

33

Astralpool Power Switch Eps 15-12 82600008SWITCHING POWER SUPPLY

82600008 Qty 1 $49.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
