AstralPool E-COMBIE PUMPS Spare Parts

  • E-COMBIE PUMPS
AstralPool E-COMBIE PUMPS Spare Parts

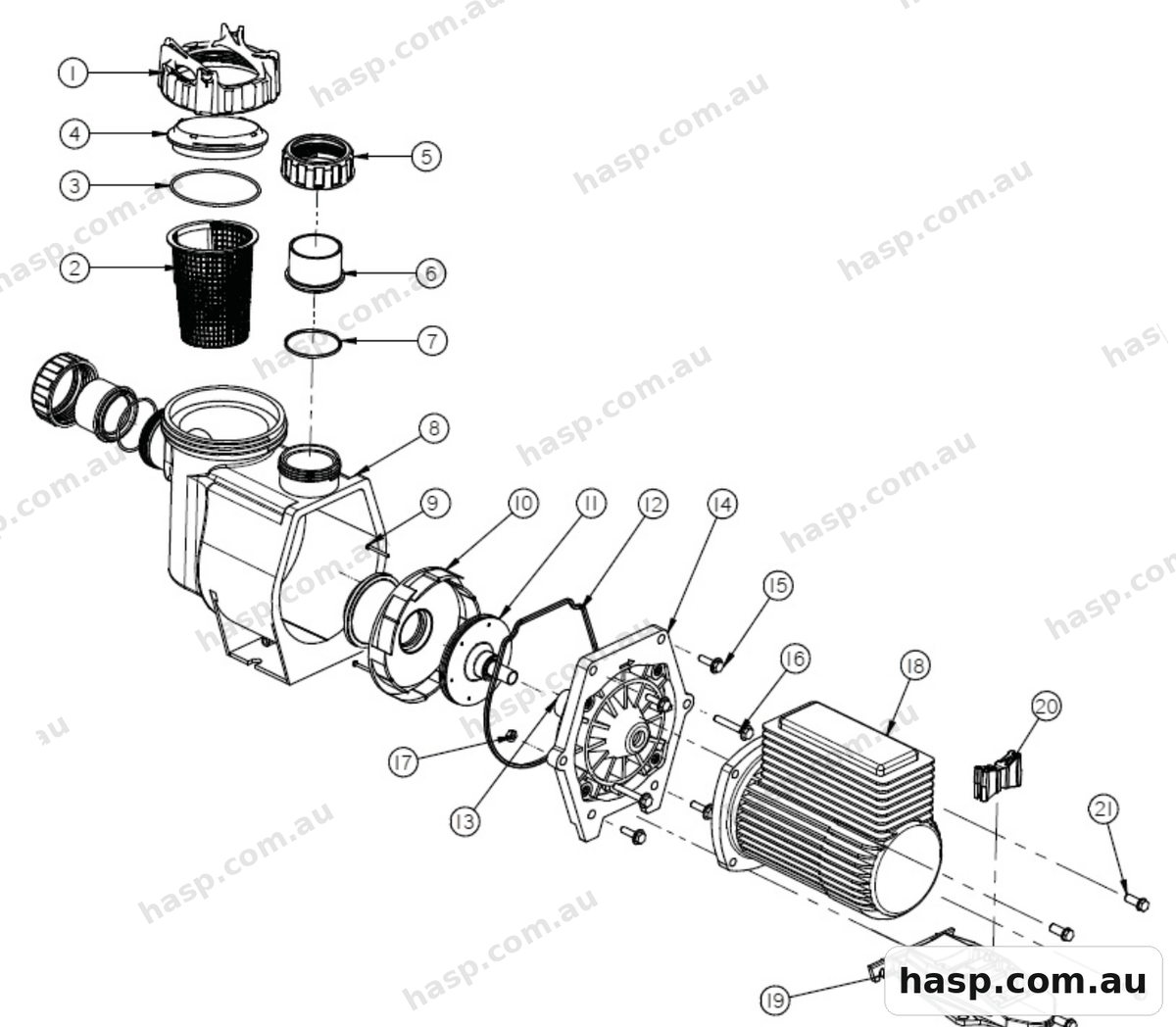

Tap the diagram to enlarge. AstralPool catalogue page 166.
1
Astralpool Lid Assembly - CTX, Viron XTLID COMPLETE WITH O-RING
SP40089 Qty 1 $149.00
2
Astralpool Pump Basket - CTX, E-Series, VironBASKET
40065 Qty 1 $67.00
3
Astralpool Lid O-Ring - CTX, E Series, Viron XT - 70006LID O-RING
70006 Qty 1 $21.95
4
Astralpool Lid Assembly - CTX, Viron XTN/A REFER TO SP40089
SP40089 Qty 1 $149.00
5
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT
950919 Qty 2 $31.00
6
Astralpool 50mm & 40mm Astralpool & Hurlcon Pump, Heater, Chlorinator Barrel Union Nuts & Tails - Combo2” (50MM) GLUE IN PIPE UNION
950920 Qty 2 $25.00
7
Astralpool / Hurlcon 50mm O-ring - for 50mm Barrel UnionO-RING
70003 Qty 2 $6.90
8
Astralpool Volute (Wet End) - CTX Series 2, Aug 2014 40097WETEND COMPLETE WITH BASKET AND DRAIN PLUGS
40097 Qty 1 $116.00
9
Astralpool Diffuser Screws (Pair) - CTX / Viron / E-Series SP40165DIFFUSER RETAINING SCREWS
40165 Qty 2 $4.00
10
Astralpool Diffuser Small - BX / CTX 180-400 / E-Series 40071ADIFFUSER CTX 180,280,360,400
40071A Qty 1 $12.00
11
Astralpool Impeller Ecombie FX340 CTX400 40060GIMPELLER
40060G Qty 1 $79.00
12
Astralpool Pump Body O-ring / Gasket - Various - See ListingO RING (SEAL PLATE)
70022 Qty 1 $48.00
13
Astralpool 3/4" Type 6 Mechanical Seal - Astralpool, Hurlcon, Poolrite, Waterway and othersMECHANICAL SEAL - BP02-USA-0191
PS3868 Qty 1 $28.00
14
Astralpool Seal Plate - CTX Series 2, Aug 2014 40098SEAL PLATE
40098 Qty 1 $228.00
15
Astralpool Seal Plate Bolt M8 x 50mm with 16mm Washer - CTX / Viron / E-Series 78772SEAL PLATE TO WETEND BOLTS
78772 Qty 6 $5.00
17
Astralpool / Zodiac Brass Hex Nut M8 - TX / CX / CTX / E-Series 40272NUT- BRASS FOR BOLTS
40272 Qty 6 $4.00
19
Astralpool / Zodiac Pump Motor Foot - Graphite Pearl, CTX / Viron / E-Series 4005002MOTOR FOOT
4005002 Qty 1 $43.00
20
Astralpool / Zodiac Motor Foot Rubber Insert V2 - CTX / Viron / E-Series 40056MOTOR FOOT RUBBER INSERT
40056 Qty 1 $7.00
NOT SHOWN
Astralpool Label Ecombi Facia GR White LABEL385CONTROL LABEL
LABEL385 Qty 1 $25.00
NOT SHOWN
Astralpool O-Ring 78104 - Pump Diffuser, 65mm Union Tail & Chlorinator Cell (BX/CX/TX/E/Viron XT)DIFFUSER O-RING
78104 Qty 1 $8.00
NOT SHOWN
Astralpool Pump Drain Plug Assembly - CTX / Viron / E-Series SP1116792DRAIN PLUG
7820702 Qty 2 $10.00
NOT SHOWN
Astralpool O-Ring, Drain Plug & Air Bleed - 78103O-RING
78103 Qty 2 $4.00
NOT SHOWN
Astralpool / Zodiac Lock Nut To Suit 50mm Tail 950919LOCK NUT
950919 Qty 2 $31.00
NOT SHOWN
Astralpool Pump Check Valve AssemblyCHECK VALVE ASSEMBLY
598770 Qty 1 $24.00
NOT SHOWN
Astralpool Component Bag - 40mm & 50mm Unions, Tails & Check Valve 78303COMPONENT BAG
78303 Qty 1 $165.00
-
Astralpool / Zodiac Capacitor 40UF Ecombie Notos 40289CAPACITOR 40UF SUIT ECOMBI
40289 Qty 1 $160.00
-
Astralpool / Zodiac PCB Ecombi 2 Speed Notos M 70250PCB -ECOMBI 2 SPEED NOTOS MOTOR
70250 Qty 1 $471.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
