AstralPool APS700 FILTER Spare Parts

APS700 FILTER
APS700

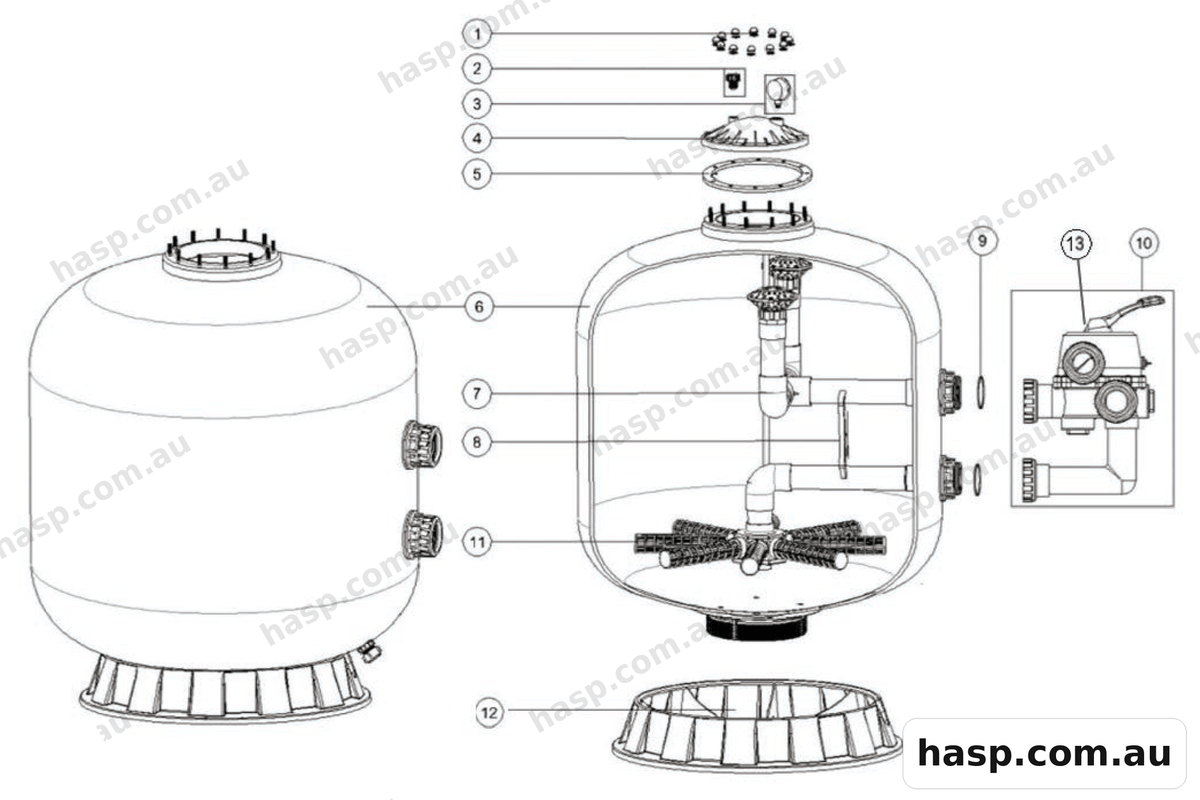

AstralPool APS700 FILTER Spare Parts — Tap the diagram to enlarge. AstralPool catalogue page 89.

1

Zodiac Nut And Washer W89010601Nut with washer

W89010601 Qty 12 $8.00

3

Zodiac Oil Pressure Gauge Side Mount W06011032Maximum 40PSI Indication, Stainless Steel Casing

W06011032 Qty 1 $45.00

5

Zodiac Filter Neck Gasket W02011126Filter Neck Gasket

W02011126 Qty 1 $22.00

10

Zodiac Titan Series 50mm M.p.v C/W WMPV04PMPV 6 Way 2" Valve with Piping Kit, 2" (50mm) union set x 3 and pressure gauge AstralPool

WMPV04P Qty 1 $498.00

11

Zodiac Laterals 185mm ZTS700B 900 W01172010Laterals (185mm)

W01172010 Qty 8 $7.00

12

Zodiac Filter Base Titan W0111106221-28inch Filter Base for S700

W01111062 Qty 1 $82.00

13

Astralpool / Zodiac Multiport Valve Suit 60028 S/Mount Filter 76063MPV 6 Way 2” Valve only

76063 Qty 1 $567.00

Parts not listed here are available on request. Contact shop@hasp.com.au with your pump serial number.
